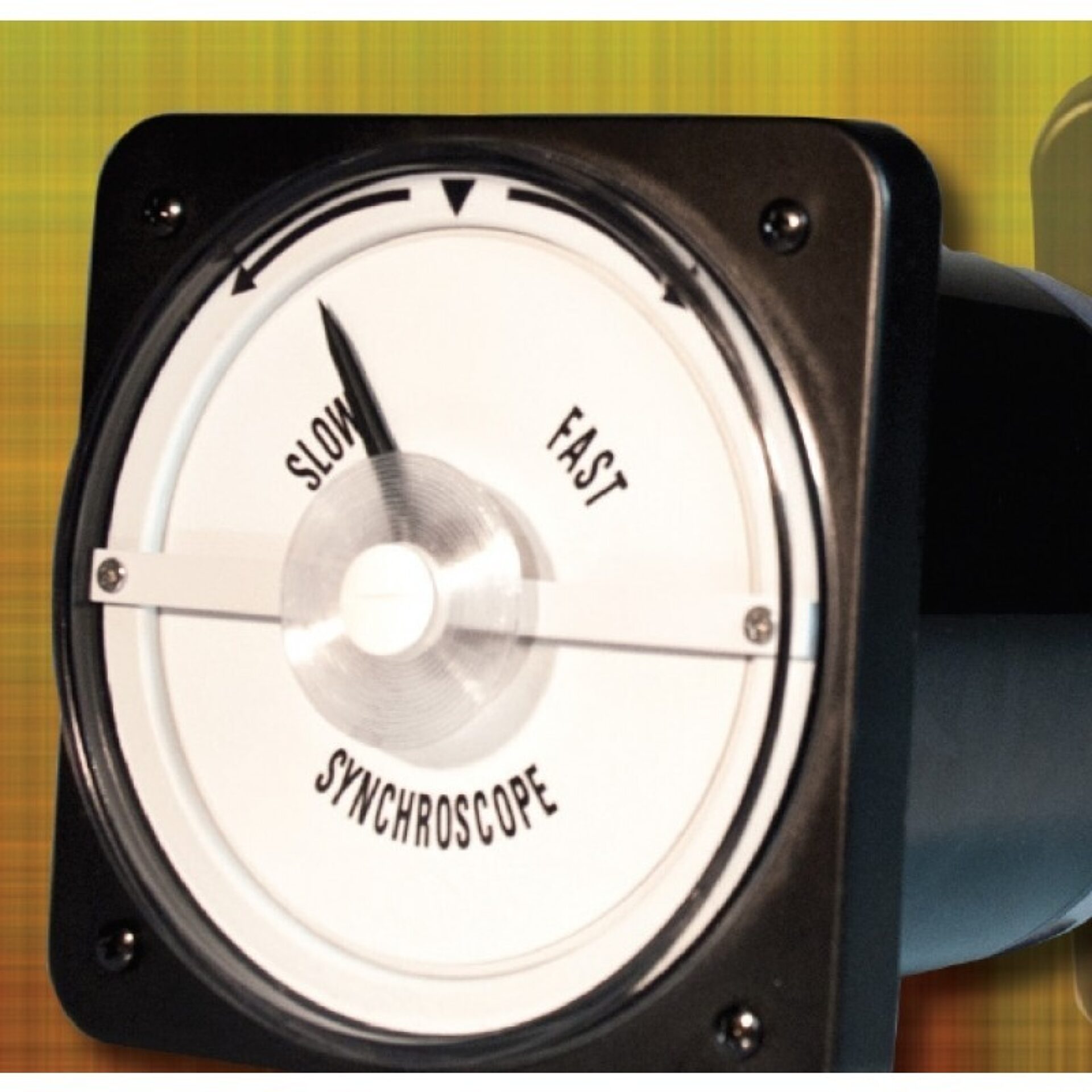

007 360° Rotary AC Synchroscope
007 360° Rotary AC Synchroscope - Analog & Digital Meters
The AC synchroscope measures and displays the frequency difference of two power sources. Monitoring the display allows the user to connect two synchronized AC power systems together. This can help prevent the potential damage caused by connecting two unsynchronized power sources. The 4.50" meter complies with ANSI C39.1 specifications.
Overview
The AC synchroscope measures and displays the frequency difference of two power sources. Monitoring the display allows the user to connect two synchronized AC power systems together. This can help prevent the potential damage caused by connecting two unsynchronized power sources. The 4.50" meter complies with ANSI C39.1 specifications.
Request a Quote for 007 360° Rotary AC Synchroscope
Product Specifications
- Application
- Switchgear
- Accuracy
- 2.5 degrees
- Response time
- 3 seconds maximum for 180° deflection
- Operating temperature range
- 3% maximum in 5 oersted field
- Overload
- 1.15% of rated voltage
- Operating Temperature
- -10°C - +45°C
