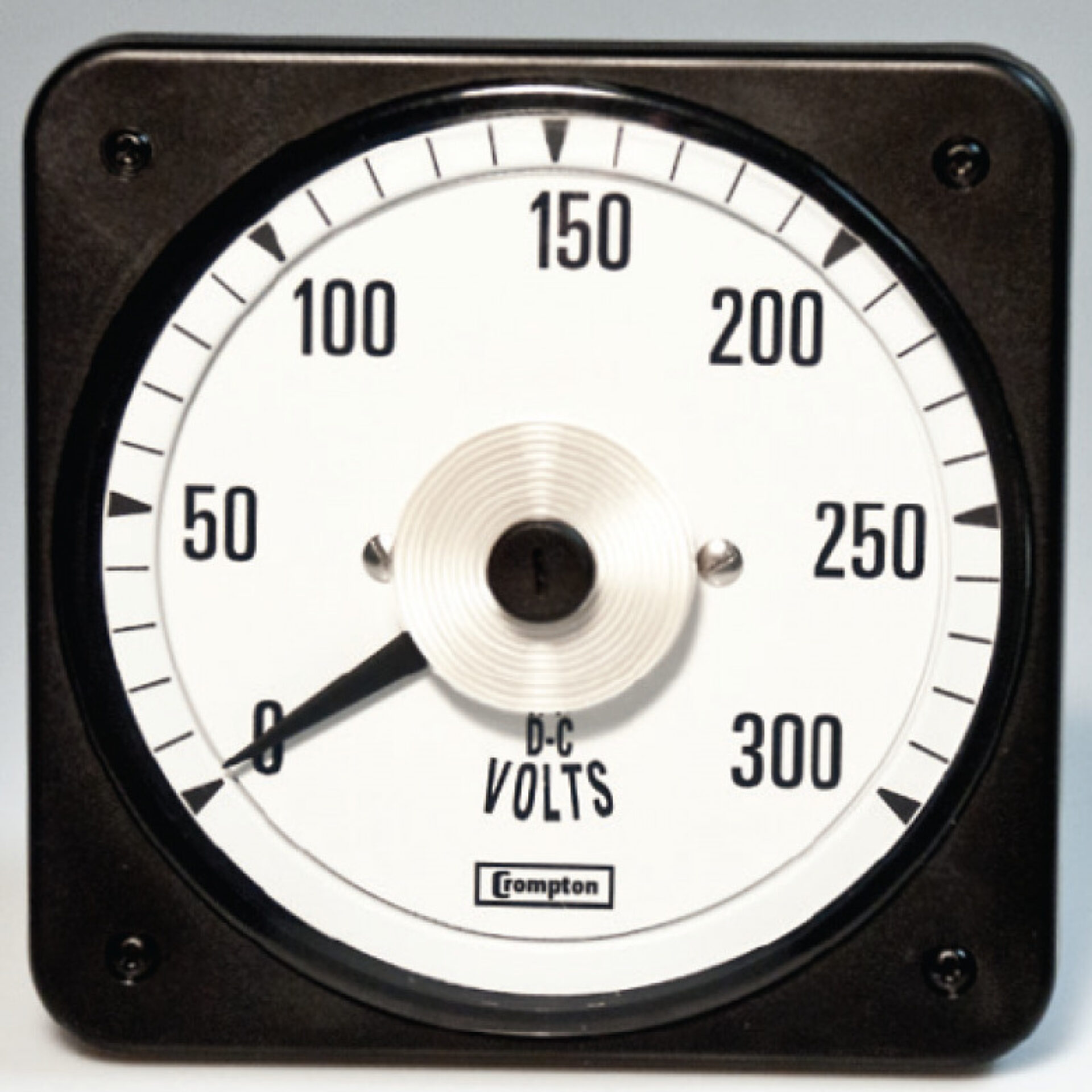

078 High Shock DC Voltmeters
078 High Shock DC Voltmeters - Analog & Digital Meters
The new compact ANSI switchboard meter offers Class 1 accuracy metering performance packed in a low profile, depth saving case. The 007 switchboard meters are a direct drop-in replacement for our legacy switchboard products. The new compact case also offers a lightweight, heavy duty polycarbonate case which is electrically safe. The 4 1/2 inch meter complies with ANSI-C39.1 specifications. Calibrated for vertical panel mounting.
Overview
The new compact ANSI switchboard meter offers Class 1 accuracy metering performance packed in a low profile, depth saving case. The 007 switchboard meters are a direct drop-in replacement for our legacy switchboard products. The new compact case also offers a lightweight, heavy duty polycarbonate case which is electrically safe. The 4 1/2 inch meter complies with ANSI-C39.1 specifications. Calibrated for vertical panel mounting.
Request a Quote for 078 High Shock DC Voltmeters
Product Specifications
- Application
- Switchgear
- Accuracy
- Class 1
- Terminals
- 10 - 32 UNF terminals
- Response time
- Approximately 2.5 seconds to full scale (007 and 078)
- Operating temperature
- 0°C to +60°C. Model 078: -40°C to +70°C
- Storage temperature
- -10°C to +50°C
- Overload rating
- DC voltmeters - 1.2 x continuous
- Frequency range
- Fig. AA 007-05/007-41
