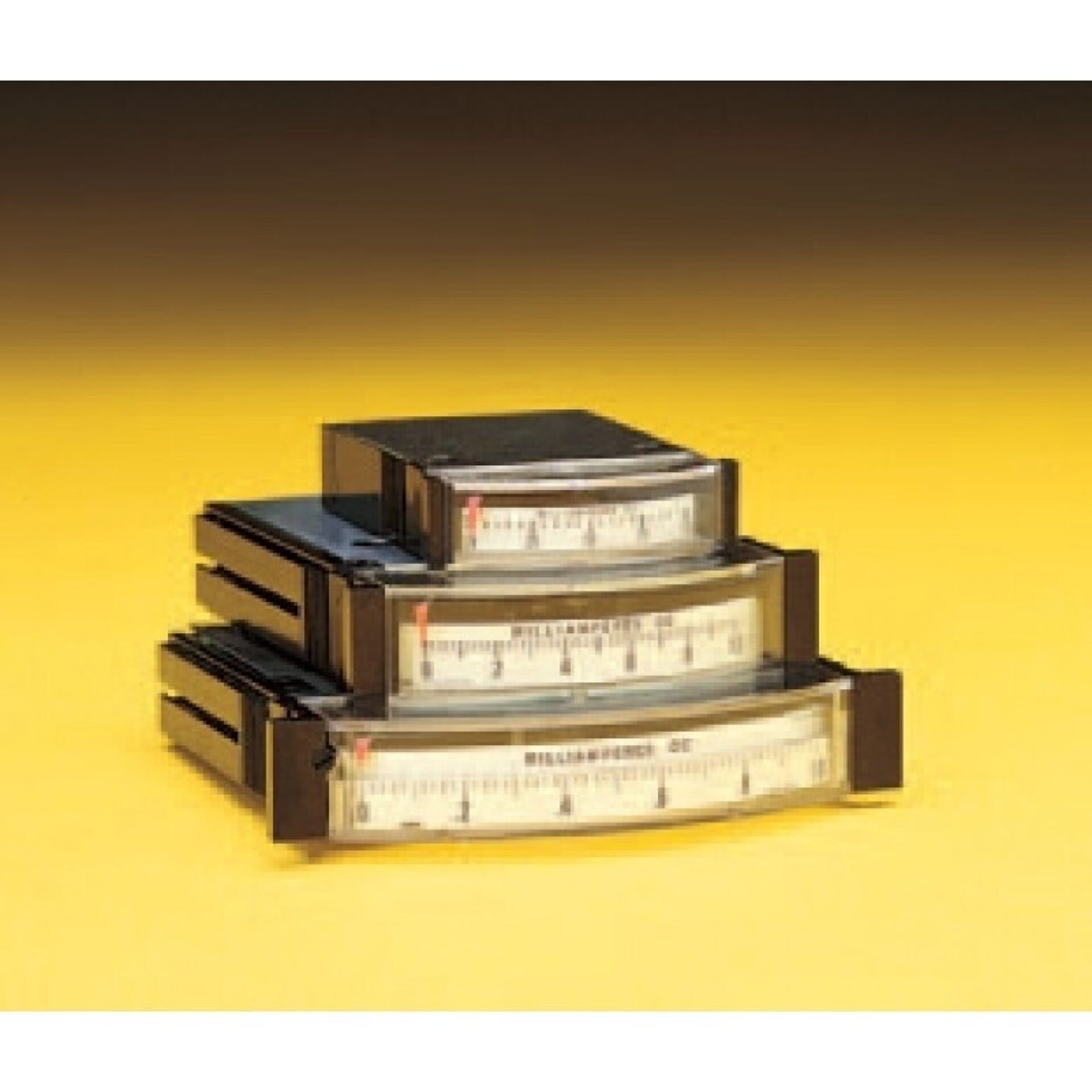

1000 Series Edgewise Panel Meters

The 1000 Series Edgewise panel instruments have been designed to satisfy the demand for an attractive and accurate analog display in a minimum of panel space. A novel case design permits snap-together access to the dial and mechanism for convenient dial changing. The case itself - clear front window and black case - is molded from high impact polycarbonate. The unique flat d'Arsonval mechanism with pivot-and-jewel suspension provides 2% accuracy with either vertical or horizontal mounting. Unsurpassed stability makes frequent zero adjusting unnecessary. The Models 1015 and 1025 have rear zero adjustment while the Model 1035 features a unique front adjustment. Panel mounting has been simplified in the 1000 Series. Two mounting clips are attached without screws to the meter case after it has been inserted through its panel cutout. The clips are then tightened against the panel.
