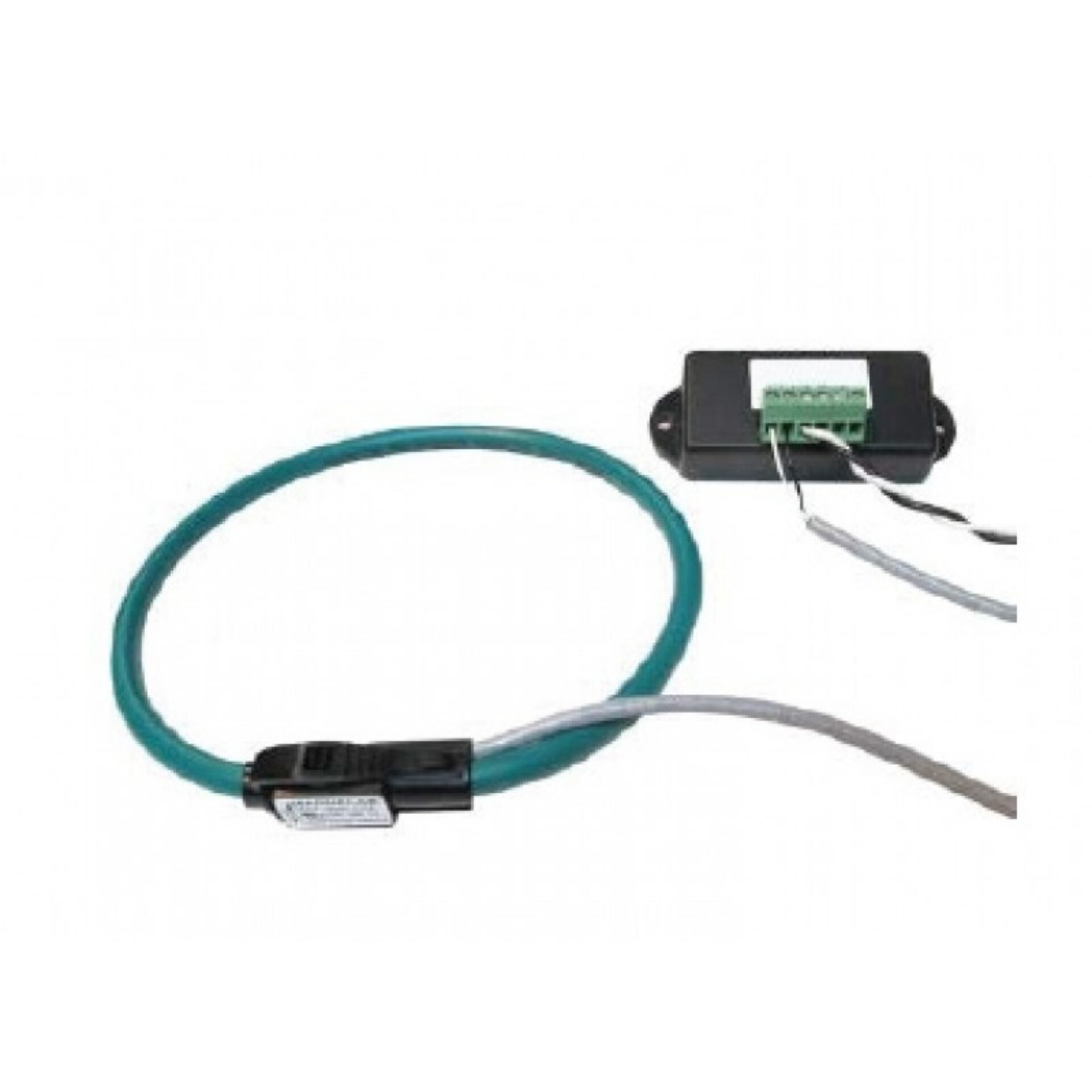

12 Inch Rogowski Coil - AC Current Sensor
Introducing the 12-inch Rogowski Coil AC Current Sensor from Spectrum Industries, a reliable and high-precision solution for measuring alternating current in a variety of electrical applications. Designed with versatility and accuracy in mind, this sensor is ideal for professionals and technicians who require precise current measurements in both industrial and laboratory settings. Its innovative design allows for easy installation and operation, making it a valuable tool for engineers working on power systems, testing, and troubleshooting.
Overview
Introducing the 12-inch Rogowski Coil AC Current Sensor from Spectrum Industries, a reliable and high-precision solution for measuring alternating current in a variety of electrical applications. Designed with versatility and accuracy in mind, this sensor is ideal for professionals and technicians who require precise current measurements in both industrial and laboratory settings. Its innovative design allows for easy installation and operation, making it a valuable tool for engineers working on power systems, testing, and troubleshooting.
The 12-inch Rogowski Coil features a flexible, lightweight construction that can be easily wrapped around conductors of different sizes, eliminating the need for direct contact or intrusive wiring. This non-intrusive design ensures safety and convenience during measurement tasks. Additionally, the coil’s high sensitivity and wide frequency response enable accurate detection of AC signals across a broad spectrum, ensuring reliable data collection even in complex electrical environments. The sensor is compatible with various measurement instruments, providing seamless integration into existing testing setups.
Built with durability and performance in mind, the Spectrum Industries Rogowski Coil AC Current Sensor is an excellent choice for those seeking a cost-effective yet precise current measurement solution. Whether for routine maintenance, detailed analysis, or research applications, this sensor offers the accuracy and flexibility needed to meet demanding electrical measurement requirements.
Request a Quote for 12 Inch Rogowski Coil - AC Current Sensor
Product Specifications
- Application
- Metering
- Standards
- RoHS, ISO 9001
- Integrator Aux Voltage
- 12 to 30V AC or DC
- Phase Angle
- < 0.5 degrees
- Measurement Range
- 100 A to 15,000 A
- Lead Wire
- 8 ft twisted pair, 22 AWG
- Coil Length
- 12 inch
- Overall Accuracy — Accuracy
- 1
- Overall Accuracy — Condition
- Linearity accuracy across measurement range
- Input Voltage Option — Volts
- 600
- Input Voltage Option — AC/DC
- AC
Specification Table
| Input Min | Input Max | Output Min | Output Max | Output Unit | Accuracy Class |
|---|---|---|---|---|---|
| 100 | 250 | 0 | 0.333 | V | 1% linearity |
| 100 | 400 | 0 | 0.333 | V | 1% linearity |
| 100 | 500 | 0 | 0.333 | V | 1% linearity |
| 100 | 800 | 0 | 0.333 | V | 1% linearity |
| 100 | 1000 | 0 | 0.333 | V | 1% linearity |
| 100 | 1500 | 0 | 0.333 | V | 1% linearity |
| 100 | 2000 | 0 | 0.333 | V | 1% linearity |
| 100 | 2500 | 0 | 0.333 | V | 1% linearity |
| 100 | 3000 | 0 | 0.333 | V | 1% linearity |
| 100 | 4000 | 0 | 0.333 | V | 1% linearity |
| 100 | 5000 | 0 | 0.333 | V | 1% linearity |
