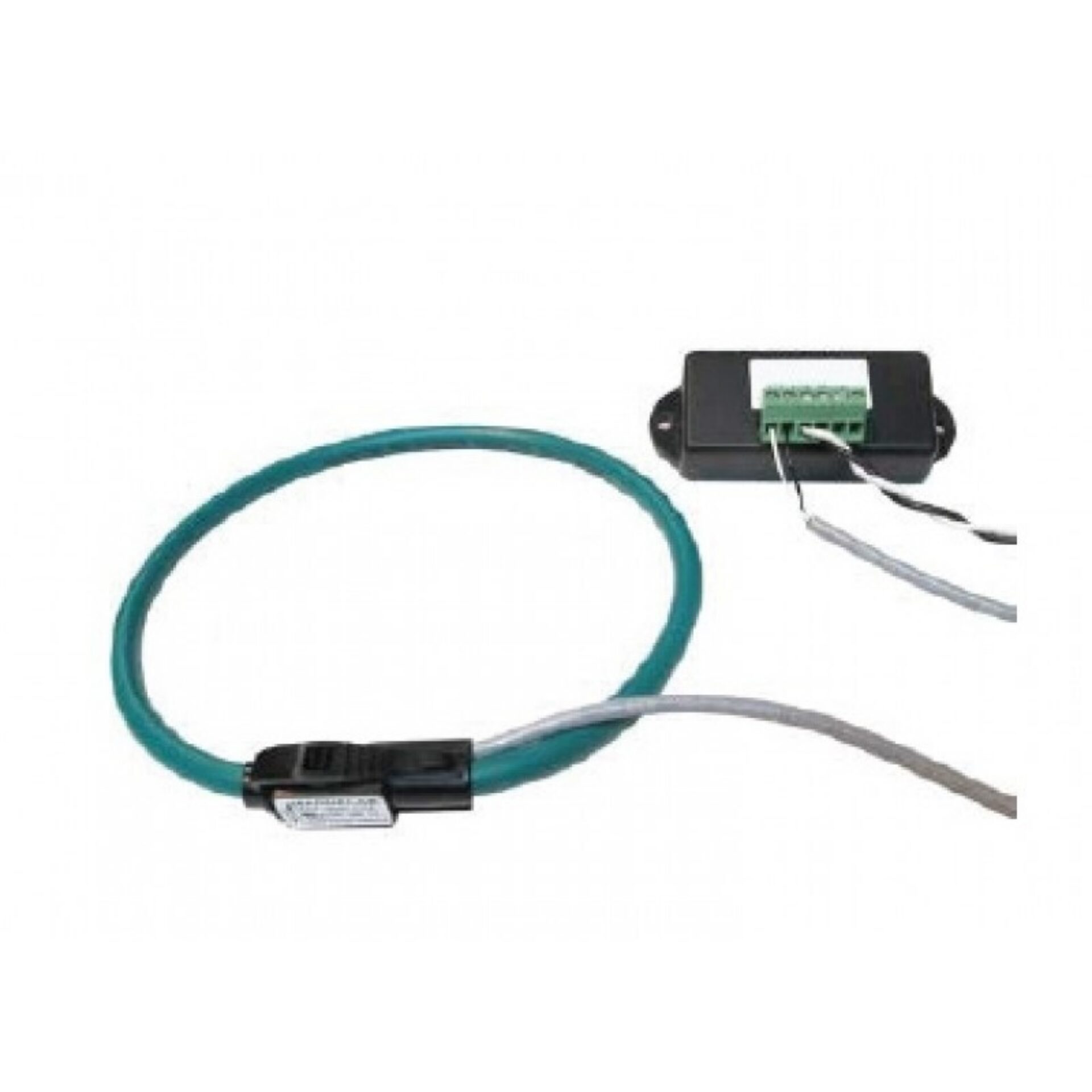

18 Inch Rogowski Coil - AC Current Sensor
Introducing the 18-inch Rogowski Coil AC Current Sensor, a versatile and reliable solution designed to accurately measure alternating current in a wide range of electrical applications. Manufactured by Spectrum Industries, this high-quality sensor offers a non-intrusive way to monitor AC currents with precision and ease. Its innovative design features a flexible, lightweight coil that can be easily wrapped around conductors of various sizes, making installation straightforward without the need for disconnecting or modifying existing wiring.
Overview
Introducing the 18-inch Rogowski Coil AC Current Sensor, a versatile and reliable solution designed to accurately measure alternating current in a wide range of electrical applications. Manufactured by Spectrum Industries, this high-quality sensor offers a non-intrusive way to monitor AC currents with precision and ease. Its innovative design features a flexible, lightweight coil that can be easily wrapped around conductors of various sizes, making installation straightforward without the need for disconnecting or modifying existing wiring.
The 18-inch Rogowski Coil is ideal for both laboratory environments and field applications, providing excellent accuracy and repeatability. Its wide measurement range allows it to handle high current levels, making it suitable for power analysis, energy management, and troubleshooting tasks. The coil's compact form factor and durable construction ensure long-lasting performance even in demanding conditions. Additionally, the sensor's output is compatible with most data acquisition systems, enabling seamless integration into existing measurement setups.
Designed with user convenience in mind, this Rogowski Coil features a flexible design that simplifies positioning and removal, saving valuable time during setup and maintenance. Whether used for testing, monitoring, or research purposes, the 18-inch Rogowski Coil AC Current Sensor from Spectrum Industries delivers dependable, high-precision measurements, making it an essential tool for professionals seeking efficient and accurate current measurement solutions.
Request a Quote for 18 Inch Rogowski Coil - AC Current Sensor
Product Specifications
- Application
- Metering
- Standards
- RoHS, ISO 9001
- Integrator Aux Voltage
- 12 to 30V AC or DC
- Phase Angle
- < 0.5 degrees
- Measurement Range
- 100 A to 15,000 A
- Lead Wire
- 8 ft twisted pair, 22 AWG
- Coil Length
- 18 inch
- Overall Accuracy — Accuracy
- 1
- Overall Accuracy — Condition
- Linearity accuracy across measurement range
- Input Voltage Option — Volts
- 600
- Input Voltage Option — AC/DC
- AC
Specification Table
| Input Min | Input Max | Output Min | Output Max | Output Unit | Accuracy Class |
|---|---|---|---|---|---|
| 100 | 250 | 0 | 0.333 | V | 1% linearity |
| 100 | 400 | 0 | 0.333 | V | 1% linearity |
| 100 | 500 | 0 | 0.333 | V | 1% linearity |
| 100 | 800 | 0 | 0.333 | V | 1% linearity |
| 100 | 1000 | 0 | 0.333 | V | 1% linearity |
| 100 | 1500 | 0 | 0.333 | V | 1% linearity |
| 100 | 2000 | 0 | 0.333 | V | 1% linearity |
| 100 | 2500 | 0 | 0.333 | V | 1% linearity |
| 100 | 3000 | 0 | 0.333 | V | 1% linearity |
| 100 | 4000 | 0 | 0.333 | V | 1% linearity |
| 100 | 5000 | 0 | 0.333 | V | 1% linearity |
