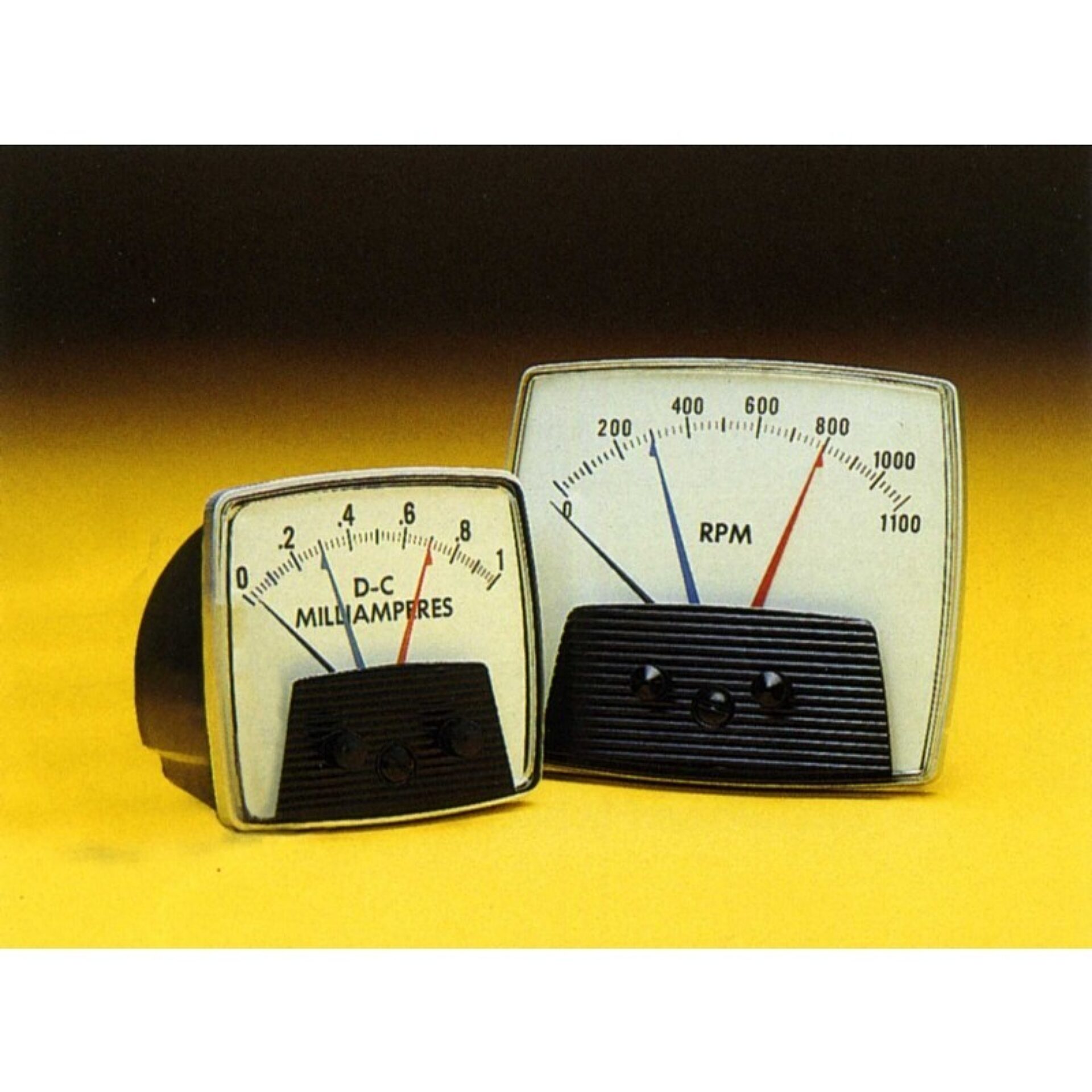

195 Series Optical Meter Relays
195 Series Optical Meter Relays - Analog & Digital Meters
The 195 Series Meter-Relays contain an exclusive light sensitive transistor switch that provides the ultimate in control simplicity and reliability. This switch controls the load relays. There are no pointer contacts or mechanical interference in the meter mechanism. The controllers are supplied with a plug-in control module that mounts directly on the rear of the Meter-Relay or may be remotely mounted with an accessory cable.
Overview
The 195 Series Meter-Relays contain an exclusive light sensitive transistor switch that provides the ultimate in control simplicity and reliability. This switch controls the load relays. There are no pointer contacts or mechanical interference in the meter mechanism. The controllers are supplied with a plug-in control module that mounts directly on the rear of the Meter-Relay or may be remotely mounted with an accessory cable.
Request a Quote for 195 Series Optical Meter Relays
Product Specifications
- Frequency
- 50–60 Hz
- Mounting
- Panel mount
- Application
- Metering, Protection
- Standards
- ANSI C39.1
- Load Relay Rating
- DPDT 5A @ 120VAC
- Rated Circuit to Ground Voltage
- 800 Vrms (1100 Peak)
- Repeatability
- ±2% (AC and DC)
- Balance
- ±1% (AC and DC)
- Overshoot (maximum)
- 20%
- AC Range (Rectifier Type) - Voltage
- 1 to 500 VAC
- AC Range (Rectifier Type) - Current
- 5 A AC; 1 to 50 mA AC; 100 to 1000 µA AC
- DC Range - Voltage
- 1 to 750 VDC; 20 to 1000 mVDC
- DC Range - Current
- 1 to 50 A DC; 1 to 1000 mA DC; 50 to 1000 µA DC
- Process Ranges
- 1-5 mA DC; 4-20 mA DC; 10-50 mA DC; 1-5 VDC; 0-10 VDC
- Input Voltage Option — Volts
- 120
- Input Voltage Option — AC/DC
- AC
- Auxiliary Voltage Option — Volts
- 120
- Auxiliary Voltage Option — AC/DC
- AC
- Burden — Value
- 7
- Burden — Condition
- max
- Response Time — Value
- 3000
- Response Time — Condition
- maximum
Maximum 1000 characters
Specification Table
| Series | Case Size | Height (in) | Width (in) | Depth (in) | Depth w/ Module (in) | Feature | Load Relay |
|---|---|---|---|---|---|---|---|
| 195 | 3-1/2" | 3.5 | 3.5 | 2.897 | 6.745 | — | — |
| 195 | 4-1/2" | 4.41 | 4.85 | 2.897 | 6.745 | — | — |
| 196 | 3-1/2" | 3.006 | 3.756 | 2.897 | 6.745 | — | — |
| 196 | 4-1/2" | 3.756 | 4.632 | 2.897 | 6.745 | — | — |
| 196 | — | — | — | — | — | Mounting bezel | — |
| 196 | — | — | — | — | — | Mounting bezel | — |
| 196 | — | — | — | — | — | Limit lights & manual reset switches | SPDT 5A @ 120VAC |
195 Series, 3-1/2" case; plug-in control module; on/off or alarm control
