196 Series Optical Meter Relays
196 Series Optical Meter Relays - Analog & Digital Meters
The 196 Series Meter-Relays contain an exclusive light sensitive transistor switch that provides the ultimate in control simplicity and reliability. This switch controls the load relays. There are no pointer contacts or mechanical interference in the meter mechanism. The controllers are supplied with a plug-in control module that mounts directly on the rear of the Meter-Relay or may be remotely mounted with an accessory cable.
Overview
The 196 Series Meter-Relays contain an exclusive light sensitive transistor switch that provides the ultimate in control simplicity and reliability. This switch controls the load relays. There are no pointer contacts or mechanical interference in the meter mechanism. The controllers are supplied with a plug-in control module that mounts directly on the rear of the Meter-Relay or may be remotely mounted with an accessory cable.
Request a Quote for 196 Series Optical Meter Relays
Product Specifications
- Frequency
- 50–60 Hz
- Application
- Metering, Process Control
- Standards
- ANSI C39.1
- Supply Power
- 120 VAC 50/60Hz 7VA MAX
- Load Relay Rating
- DPDT 5A @ 120VAC
- Rated Circuit to Ground Voltage
- 800 Vrms (1100 Peak)
- Repeatability
- +/-1%
- Balance
- +/-1%
- Overshoot
- 20% max
- Overload Capacity (1 second)
- 1000% (DC current); 200% >100V, 1000% <=100V (DC voltage); 150% (AC current); 150% (AC voltage)
- Overload Capacity (Continuous)
- 150% (DC current); 120% (DC voltage); 150% (AC current); 150% (AC voltage)
- DC Current Ranges
- 50 to 1000 DC microamperes; 1 to 1000 DC milliamperes; 1 to 50 DC amperes
- DC Voltage Ranges
- 20 to 1000 DC millivolts; 1 to 750 DC volts
- AC Current Ranges (Rectifier Type)
- 100 to 1000 AC microamperes; 1 to 50 AC milliamperes; 5 AC amperes
- AC Voltage Ranges (Rectifier Type)
- 1 to 500 AC volts
- Process Ranges
- 1-5, 4-20, 10-50 DC milliamperes; 1-5, 0-10 DC volts
- Calibration Frequency
- 60 Hz (AC ranges)
- Environmental
- Shock, vibration, humidity and temperature equal to or better than ANSI C39.1-1981
- Safety Compliance
- Dielectric test, leakage and other hazards equal to or better than ANSI C39.5-1974
- Input Voltage Option — Volts
- 120
- Input Voltage Option — AC/DC
- AC
- Response Time — Value
- 3000
- Response Time — Condition
- maximum
Maximum 1000 characters
Specification Table
| Size | Height (in) | Width (in) | Depth (in) | Depth w/ Module (in) | Style | Mounting Bezel | Limit Lights | Manual Reset Switches | Load Relay |
|---|---|---|---|---|---|---|---|---|---|
| 3-1/2" | 3.006 | 3.756 | 2.897 | 6.745 | Modern rectangular | — | — | — | — |
| 4-1/2" | 3.756 | 4.632 | 2.897 | 6.745 | Modern rectangular | — | — | — | — |
| 3-1/2" | — | — | — | — | — | Included | — | — | — |
| 4-1/2" | — | — | — | — | — | Included | — | — | — |
| — | — | — | — | — | — | — | Optional | Optional | SPDT 5A @ 120VAC |

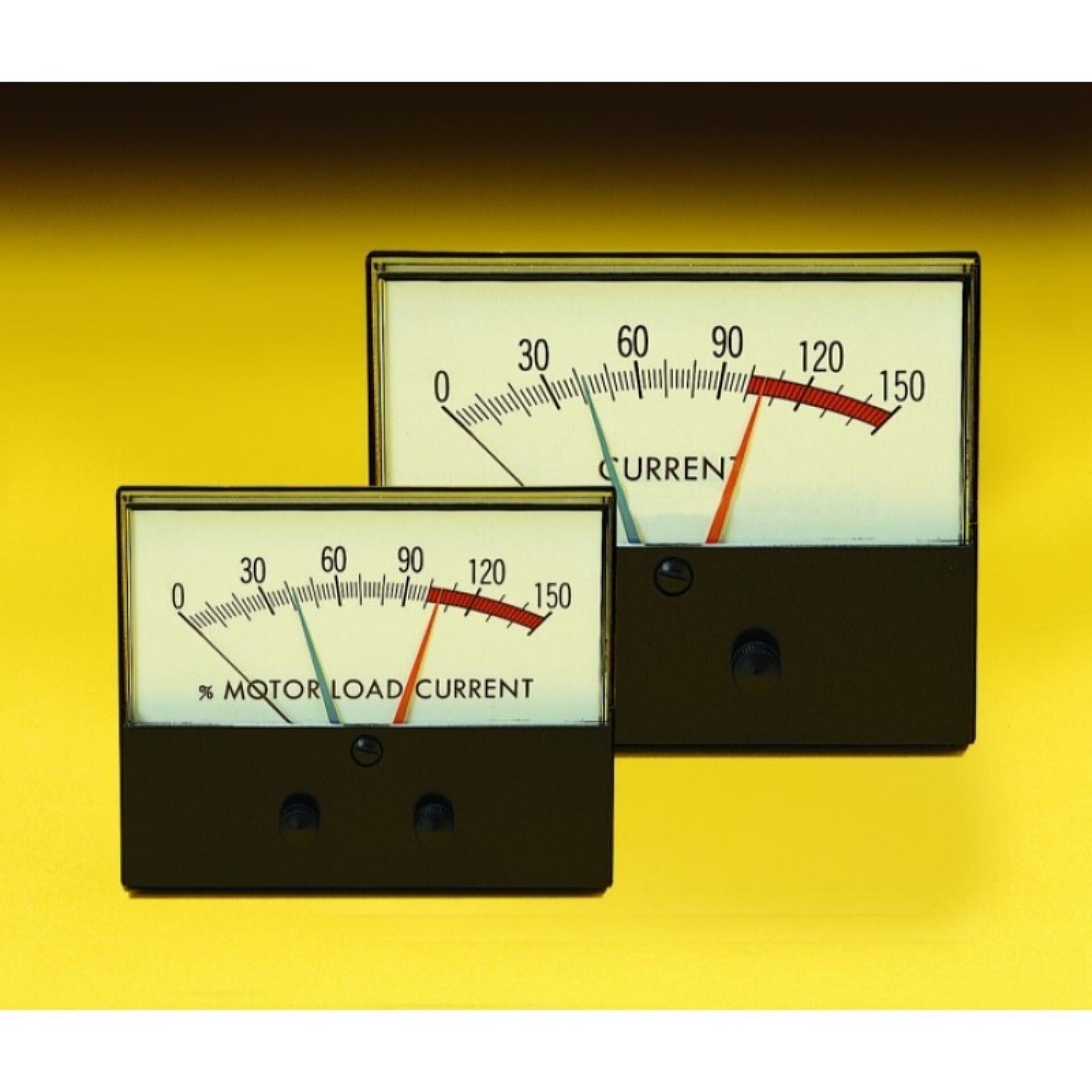

3-1/2 inch optical meter-relay with plug-in control module
