20+kV Dry-Type No-Excitation Transformer
20+kV cast resin dry-type transformer with epoxy resin insulation, no-excitation design, and strong performance in dust, humidity, and harsh conditions.
Our 20+kV dry-type no-excitation distribution transformer extends cast resin epoxy construction into the medium-voltage class, giving utilities, industrial facilities, and commercial operations a dependable option for higher-capacity distribution needs. Built on the same SC(B) cast resin platform used across Spectrum Industries' dry-type line, this transformer delivers the safety and environmental resilience of epoxy resin insulation at a voltage rating suited to larger distribution loads.
Overview

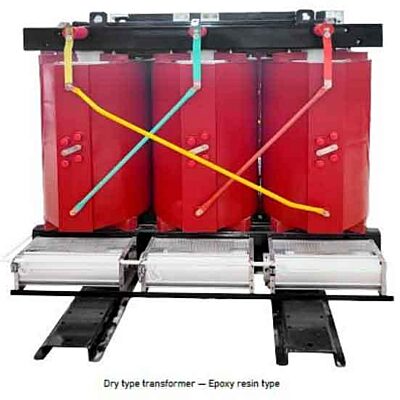

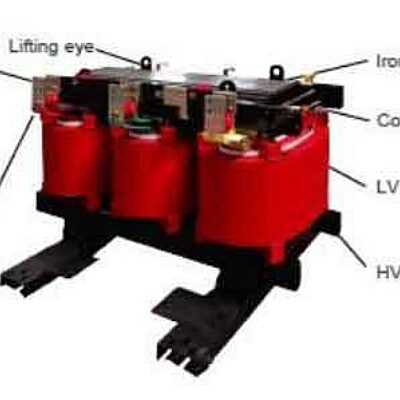

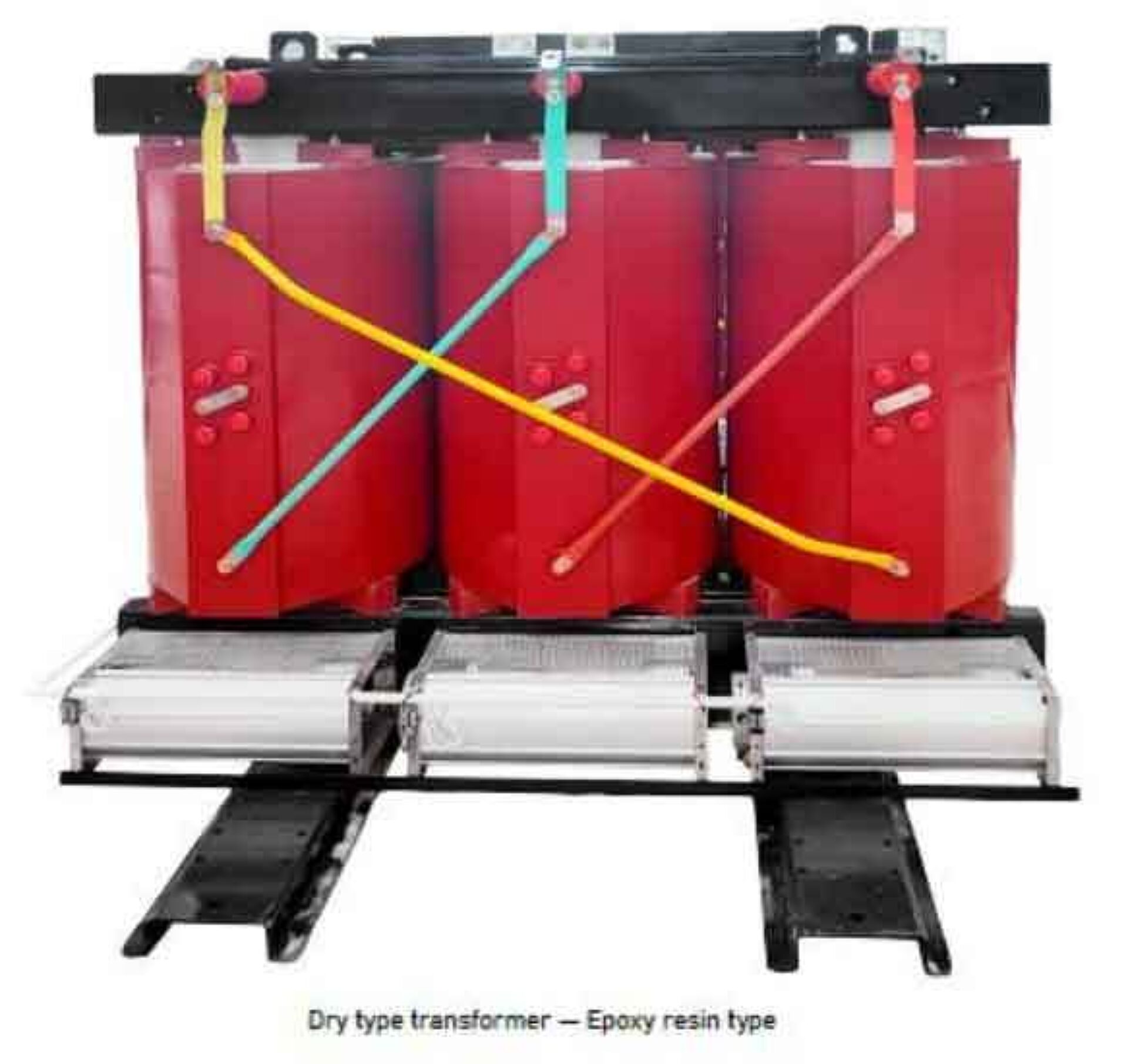

At the 20+ kV voltage class, this dry-type transformer relies on the same cast-resin epoxy insulation system that defines Spectrum Industries' dry-type line: a high-quality protective resin cover fully encapsulating the winding surface. Because epoxy resin functions as an insulating glue, the coil and cover form a single, solid protective structure rather than separate layered components, giving the transformer stable dielectric performance suited to medium-voltage distribution work.
This higher voltage class is particularly well-suited to sites where load demands exceed what a standard 6+kV unit can support, without requiring the additional oil-handling infrastructure that liquid-filled transformers of similar capacity would need. The cast resin construction remains unaffected by dust, humidity, and other harsh site conditions, making it a practical choice for industrial plants, substations, and commercial buildings operating at the 20+kV level where both higher capacity and environmental durability are required.
As with all cast-resin dry-type transformers, manufacturing relies on vacuum-state resin casting using specialized molds and equipment, a process that eliminates voids in the epoxy insulation and ensures consistent performance under load. This precision casting method is essential at higher voltage classes, where insulation integrity has a greater impact on transformer reliability. The result is a no-excitation, 20+kV distribution transformer built for utilities and industrial customers who need dependable medium-voltage power without the maintenance and fire-risk considerations of oil-filled equipment.
Request a Quote for 20+kV Dry-Type No-Excitation Transformer
Product Specifications
- Voltage Class
- 20+kV
- Type
- Cast resin dry-type, no-excitation distribution transformer
- HV Voltage Options
- 20 / 22 / 24 kV
- LV Voltage
- 0.4 kV
- HV Tapping
- ±2×2.5%, ±5%
- Vector Group
- Dyn11 / Yyn0
- Insulation Ranks
- F (130°C) / H (155°C) / C (180°C at 145°C)
- Available Capacities
- 50 – 2500 kVA
- No-load Loss Range
- 340 – 3870 W
- Load Loss (145°C) Range
- 1310 – 22700 W
- Short Circuit Impedance
- 6% (50–2500 kVA), 8% (larger)
- No-load Current Range
- 0.70% – 2.00%
- Model Number Pattern
- VO-UT-DRD-{kVA}-{HkV}-0.4kV
Specification Table
| Rated Capacity (kVA) | No-load Loss (W) | Load Loss 130°C (W) | Load Loss 155°C (W) | Load Loss 180°C (W) | No-load Current (%) |
|---|---|---|---|---|---|
| 50 | 340 | 1160 | 1230 | 1310 | 2 |
| 100 | 540 | 1870 | 1990 | 2130 | 1.8 |
| 160 | 670 | 2330 | 2470 | 2640 | 1.6 |
| 200 | 730 | 2770 | 2940 | 3140 | 1.6 |
| 250 | 840 | 3220 | 3420 | 3660 | 1.3 |
| 315 | 970 | 3850 | 4080 | 4360 | 1.3 |
| 400 | 1150 | 4650 | 4940 | 5180 | 1.1 |
| 500 | 1350 | 5460 | 5790 | 6190 | 1.1 |
| 630 | 1530 | 6450 | 6840 | 7320 | 1 |
| 800 | 1750 | 7790 | 8260 | 8840 | 1 |
| 1000 | 2070 | 9220 | 9780 | 10400 | 0.85 |
| 1250 | 2380 | 10800 | 11500 | 12300 | 0.85 |
| 1600 | 2790 | 13000 | 13800 | 14800 | 0.85 |
| 2000 | 3240 | 15400 | 16300 | 17500 | 0.7 |
| 2500 | 3870 | 18200 | 19300 | 20700 | 0.7 |
