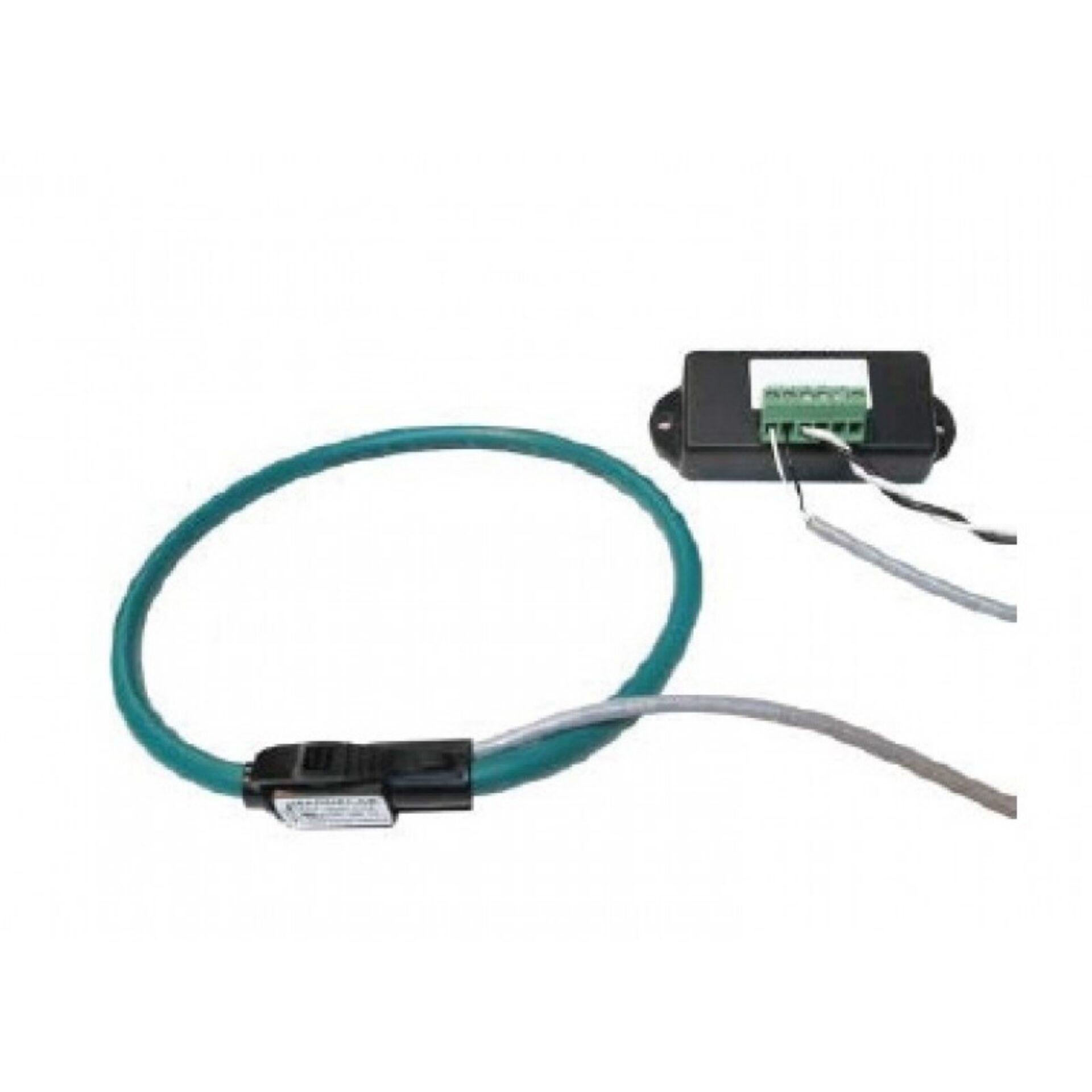

24 Inch Rogowski Coil - AC Current Sensor
Introducing the 24 Inch Rogowski Coil AC Current Sensor, a versatile and reliable solution designed for precise current measurement in various electrical applications. Manufactured by Spectrum Industries, this high-quality sensor features a robust construction that ensures accurate readings while maintaining ease of installation and use. Its 24-inch length provides ample flexibility for positioning around conductors, making it suitable for both laboratory and industrial environments.
Overview
Introducing the 24 Inch Rogowski Coil AC Current Sensor, a versatile and reliable solution designed for precise current measurement in various electrical applications. Manufactured by Spectrum Industries, this high-quality sensor features a robust construction that ensures accurate readings while maintaining ease of installation and use. Its 24-inch length provides ample flexibility for positioning around conductors, making it suitable for both laboratory and industrial environments.
The Rogowski coil operates on the principle of electromagnetic induction, offering a non-intrusive method to measure alternating current without the need to break circuits or use cumbersome shunt resistors. This makes it ideal for monitoring high-current systems safely and efficiently. The sensor's lightweight and flexible design allow for quick setup and minimal disturbance to existing wiring, streamlining the measurement process in complex electrical setups.
Built with durability and precision in mind, the Spectrum Industries 24 Inch Rogowski Coil AC Current Sensor delivers consistent performance across a wide range of frequencies and current levels. Its compatibility with various measurement instruments makes it a versatile addition to any electrical testing or power quality analysis toolkit. Whether for research, maintenance, or troubleshooting, this sensor provides accurate, reliable data to help ensure optimal system performance and safety.
Request a Quote for 24 Inch Rogowski Coil - AC Current Sensor
Product Specifications
- Application
- Metering
- Standards
- RoHS, ISO 9001
- Aux Power Supply (Integrator)
- 12 to 30V AC or DC
- Phase Angle
- < 0.5 degrees
- Leads
- 8 ft twisted pair, 22 AWG
- Accuracy Range
- 100 A to 15,000 A
- Coil Style
- Flexible Rogowski coil, opens at connector for installation on existing cable or bus bar
- Output — Kind
- V
- Output — Max
- 0.333
- Overall Accuracy — Accuracy
- 1
- Overall Accuracy — Condition
- Linearity accuracy
- Input Voltage Option — Volts
- 600
- Input Voltage Option — AC/DC
- AC
Specification Table
| Input Max | Output Max | Output Unit |
|---|---|---|
| 250 | 0.333 | V |
| 400 | 0.333 | V |
| 500 | 0.333 | V |
| 800 | 0.333 | V |
| 1000 | 0.333 | V |
| 1500 | 0.333 | V |
| 2000 | 0.333 | V |
| 2500 | 0.333 | V |
| 3000 | 0.333 | V |
| 4000 | 0.333 | V |
| 5000 | 0.333 | V |
