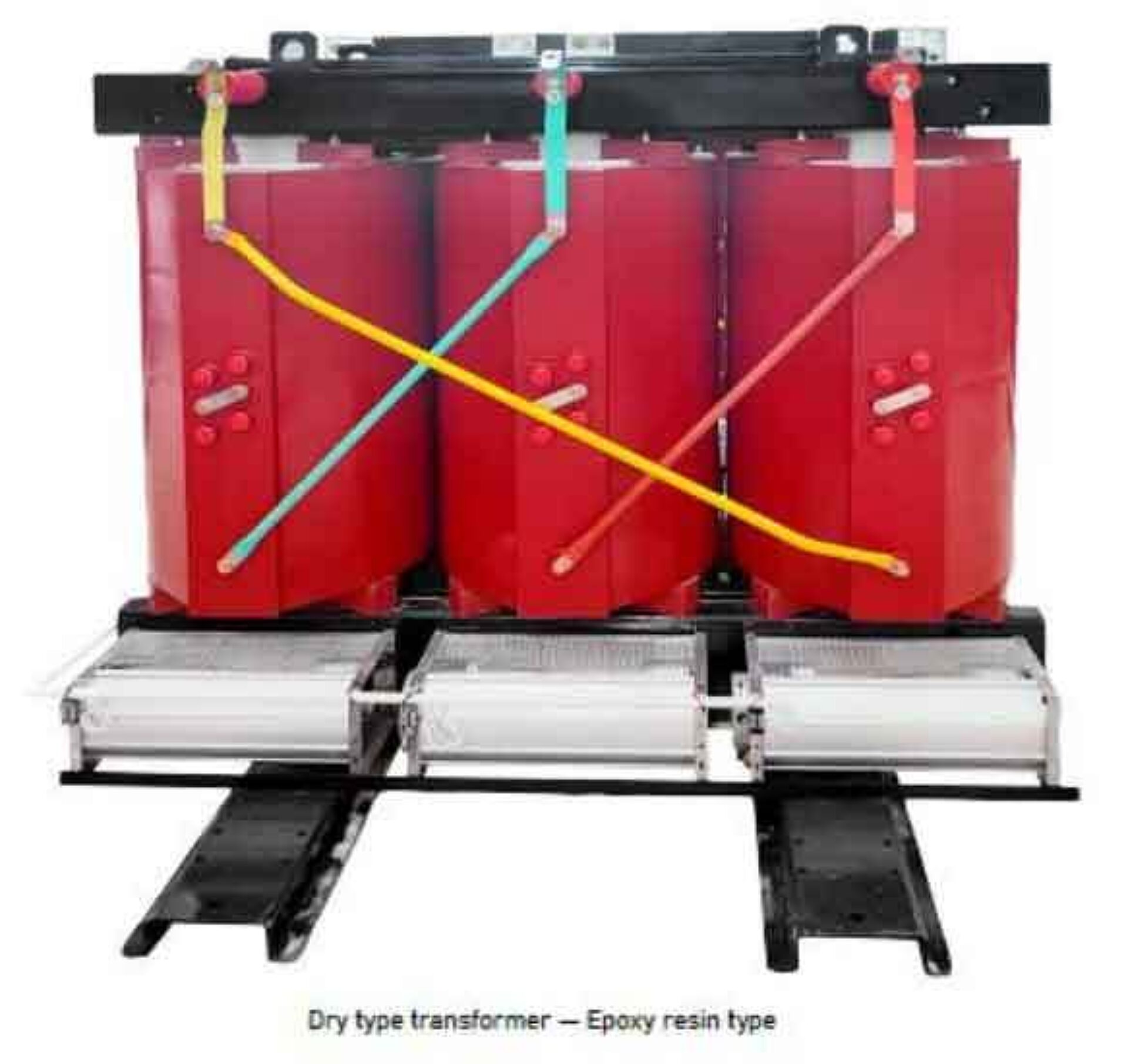

35+kV Dry-Type No-Excitation Transformer

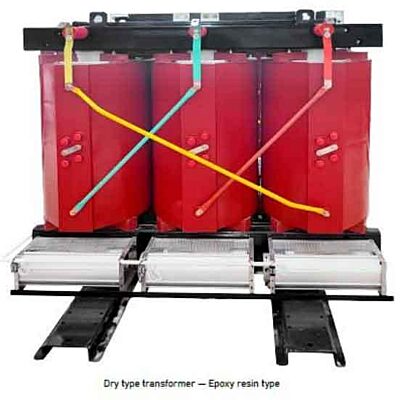

35+kV cast resin dry-type transformer with epoxy resin insulation, no-excitation design, built for reliable performance in demanding environments.
Our 35+kV dry-type no-excitation distribution transformer is the highest voltage class in Spectrum Industries' cast resin dry-type line, engineered for utilities, industrial facilities, and large commercial operations with substantial distribution loads. Built on the same epoxy resin cast construction used throughout the dry-type series, this transformer delivers oil-free, low-maintenance performance at a voltage rating suited to demanding, high-capacity applications.
Overview

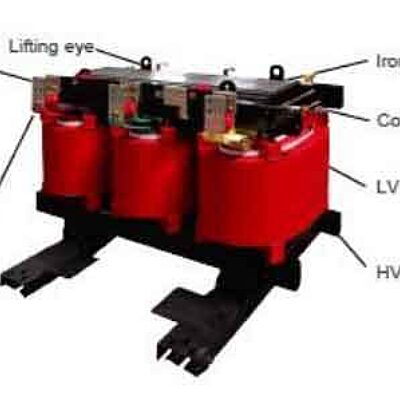

The 35+kV dry-type transformer uses the same cast resin epoxy insulation system found across Spectrum Industries' dry-type line: a high-quality protective resin cover fully encapsulating the winding surface. Because the epoxy resin serves as an insulating glue, the finished coil and cover form a single, solid protective structure, giving the transformer the dielectric strength needed to operate reliably at higher voltage levels.
At this voltage class, cast resin construction offers a distinct advantage over oil-filled alternatives of comparable rating: no oil containment, no risk of leaks, and no added fire-suppression infrastructure. The insulation remains unaffected by dust, humidity, and other harsh site conditions, making this transformer well-suited to industrial plants, substations, and large commercial facilities operating at 35+kV where higher capacity and environmental resilience are both required.
Manufacturing at this voltage class follows the same vacuum-state resin casting process used throughout the line, relying on specialized molds and casting equipment to fully encapsulate the coil without voids in the epoxy insulation. Insulation integrity becomes increasingly critical as voltage class rises, and this precision casting method ensures the transformer performs reliably under sustained high-voltage loads. The result is a no-excitation, 35+kV distribution transformer built for customers who need dependable high-voltage power distribution without the maintenance and fire-risk considerations of oil-filled equipment.
Request a Quote for 35+kV Dry-Type No-Excitation Transformer
Product Specifications
- Voltage Class
- 35+kV
- Type
- Cast resin dry-type, no-excitation distribution transformer
- HV Voltage Options
- 35 / 36 / 37 / 38.5 kV
- LV Voltage
- 0.4 kV
- HV Tapping
- ±2×1.25%, ±5%
- Vector Group
- Dyn11 / Yyn0
- Insulation Ranks
- F (130°C) / H (155°C) / C (180°C at 145°C)
- Available Capacities
- 50 – 2500 kVA
- No-load Loss Range
- 450 – 4450 W
- Load Loss (145°C) Range
- 1520 – 23300 W
- Short Circuit Impedance
- 6%
- No-load Current Range
- 0.75% – 2.30%
- Model Number Pattern
- VO-UT-DRD-{kVA}-{HkV}-0.4kV
Specification Table
| Rated Capacity (kVA) | No-load Loss (W) | Load Loss 130°C (W) | Load Loss 155°C (W) | Load Loss 180°C (W) | No-load Current (%) |
|---|---|---|---|---|---|
| 50 | 450 | 1340 | 1420 | 1520 | 2.3 |
| 100 | 630 | 1970 | 2090 | 2230 | 2 |
| 160 | 790 | 2650 | 2810 | 3000 | 1.5 |
| 200 | 880 | 3130 | 3320 | 3550 | 1.5 |
| 250 | 990 | 3580 | 3800 | 4060 | 1.3 |
| 315 | 1170 | 4250 | 4510 | 4820 | 1.3 |
| 400 | 1370 | 5100 | 5410 | 5790 | 1.1 |
| 500 | 1620 | 6270 | 6650 | 7110 | 1.1 |
| 630 | 1860 | 7250 | 7690 | 8230 | 1 |
| 800 | 2160 | 8600 | 9120 | 9760 | 1 |
| 1000 | 2430 | 9860 | 10400 | 11100 | 0.75 |
| 1250 | 2830 | 12000 | 12700 | 13600 | 0.75 |
| 1600 | 3240 | 14600 | 15400 | 16500 | 0.75 |
| 2000 | 3820 | 17200 | 18200 | 19500 | 0.75 |
| 2500 | 4450 | 20600 | 21800 | 23300 | 0.75 |
