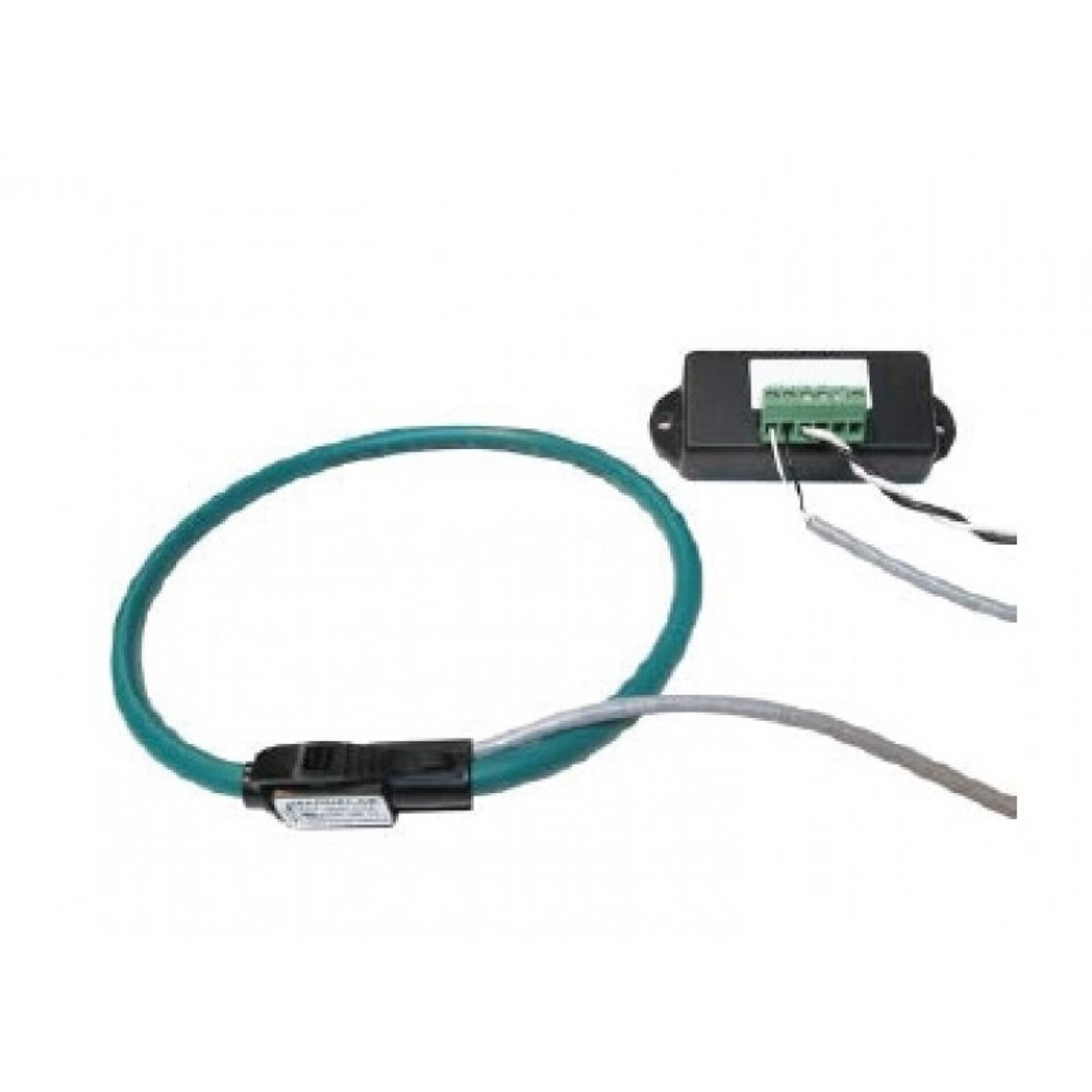

36 Inch Rogowski Coil - AC Current Sensor
Introducing the 36-Inch Rogowski Coil AC Current Sensor, a highly reliable and precise tool designed to meet the demanding needs of electrical measurement and analysis. Manufactured by Spectrum Industries, this innovative sensor offers a non-intrusive solution for measuring alternating current (AC) with exceptional accuracy and ease of use. Its flexible design allows for easy installation around conductors of various sizes, making it an ideal choice for both laboratory environments and field applications.
Overview
Introducing the 36-Inch Rogowski Coil AC Current Sensor, a highly reliable and precise tool designed to meet the demanding needs of electrical measurement and analysis. Manufactured by Spectrum Industries, this innovative sensor offers a non-intrusive solution for measuring alternating current (AC) with exceptional accuracy and ease of use. Its flexible design allows for easy installation around conductors of various sizes, making it an ideal choice for both laboratory environments and field applications.
The 36-inch length of the coil provides excellent coverage for large conductors and complex wiring setups, ensuring comprehensive current measurement without the need for direct contact or circuit interruption. Thanks to its advanced Rogowski coil technology, the sensor produces a clean, high-fidelity output signal that can be seamlessly integrated with data acquisition systems for real-time monitoring and analysis. Its lightweight and flexible construction make it simple to handle and position, reducing setup time and minimizing disruption to existing electrical systems.
Designed with durability and safety in mind, this current sensor is built to withstand challenging industrial environments while maintaining consistent performance over time. Whether used for troubleshooting, testing, or ongoing monitoring, the 36-Inch Rogowski Coil AC Current Sensor from Spectrum Industries provides a dependable and efficient solution for professionals seeking accurate AC current measurements with minimal hassle.
Request a Quote for 36 Inch Rogowski Coil - AC Current Sensor
Product Specifications
- Frequency
- 50–60 Hz
- Application
- Metering
- Standards
- cUL, CE, RoHS, ISO 9001
- Output — Kind
- V
- Output — Max
- 0.333
- Overall Accuracy — Accuracy
- 1
- Overall Accuracy — Condition
- linearity
Specification Table
| Input Min | Input Max | Output Min | Output Max | Output Unit | Accuracy Class |
|---|---|---|---|---|---|
| 0 | 250 | 0 | 0.333 | V | 1% |
| 0 | 400 | 0 | 0.333 | V | 1% |
| 0 | 500 | 0 | 0.333 | V | 1% |
| 0 | 800 | 0 | 0.333 | V | 1% |
| 0 | 1000 | 0 | 0.333 | V | 1% |
| 0 | 1500 | 0 | 0.333 | V | 1% |
| 0 | 2000 | 0 | 0.333 | V | 1% |
| 0 | 2500 | 0 | 0.333 | V | 1% |
| 0 | 3000 | 0 | 0.333 | V | 1% |
| 0 | 4000 | 0 | 0.333 | V | 1% |
| 0 | 5000 | 0 | 0.333 | V | 1% |
