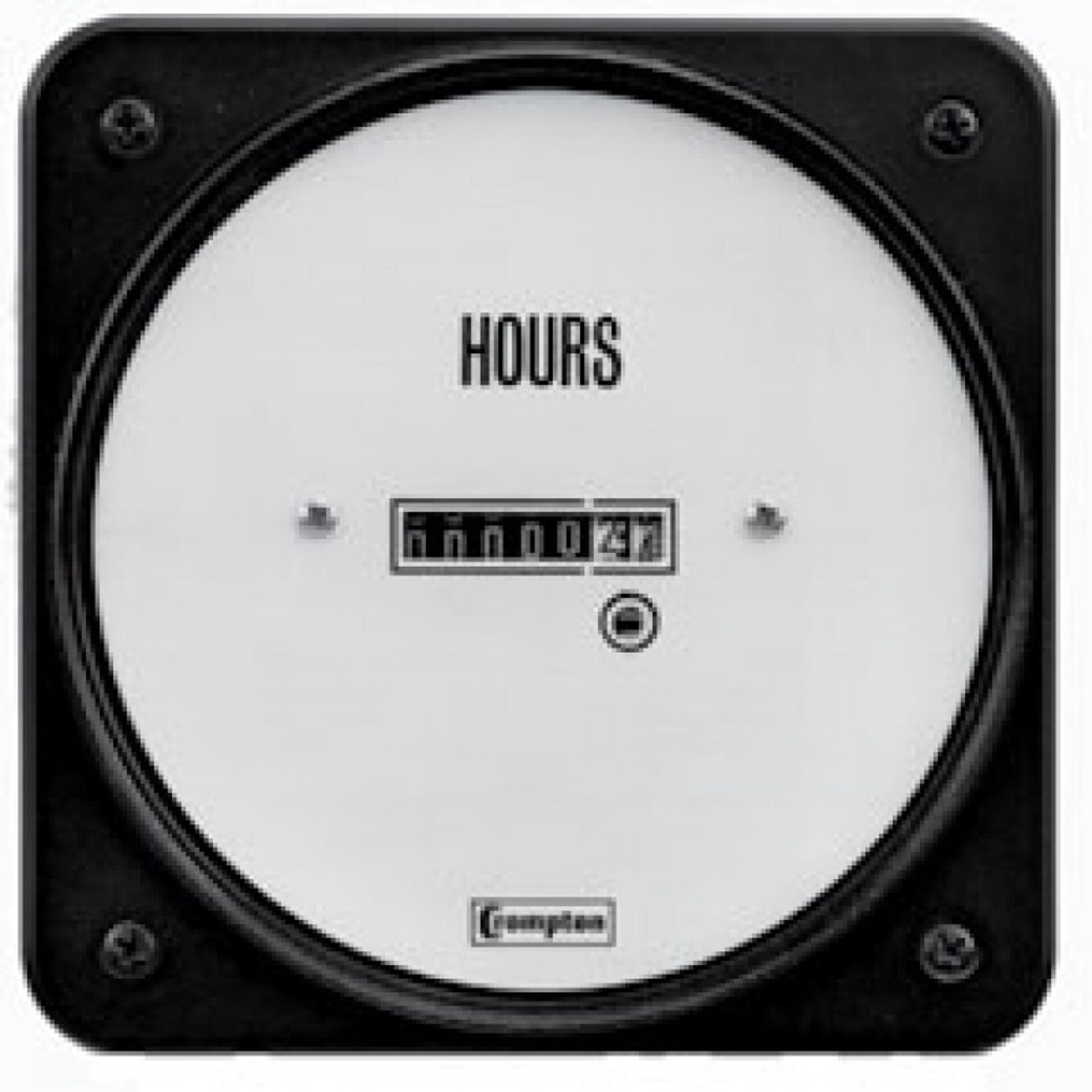

AC Elapsed Time Meters
AC Elapsed Time Meters - Analog & Digital Meters
The new compact ANSI switchboard meter offers Class 1 accuracy metering performance packed in a low profile, depth saving
case. The 007 switchboard meters are a direct drop-in replacement for our legacy switchboard products.
The new compact case also offers a lightweight, heavy duty polycarbonate case which is electrically safe.
The 4 1/2 inch meter complies with ANSI-C39.1 specifications.
Calibrated for vertical panel mounting.
Self-contained 50 or 60 Hz Synchronous Motor Drive. Maximum reading 99,999.99 (non reset type)
Overview
The new compact ANSI switchboard meter offers Class 1 accuracy metering performance packed in a low profile, depth saving
case. The 007 switchboard meters are a direct drop-in replacement for our legacy switchboard products.
The new compact case also offers a lightweight, heavy duty polycarbonate case which is electrically safe.
The 4 1/2 inch meter complies with ANSI-C39.1 specifications.
Calibrated for vertical panel mounting.
Self-contained 50 or 60 Hz Synchronous Motor Drive. Maximum reading 99,999.99 (non reset type)
Downloads
Product documentation is not yet available online. Please contact us to request the latest data sheet, brochures, or technical reference materials for AC Elapsed Time Meters.
