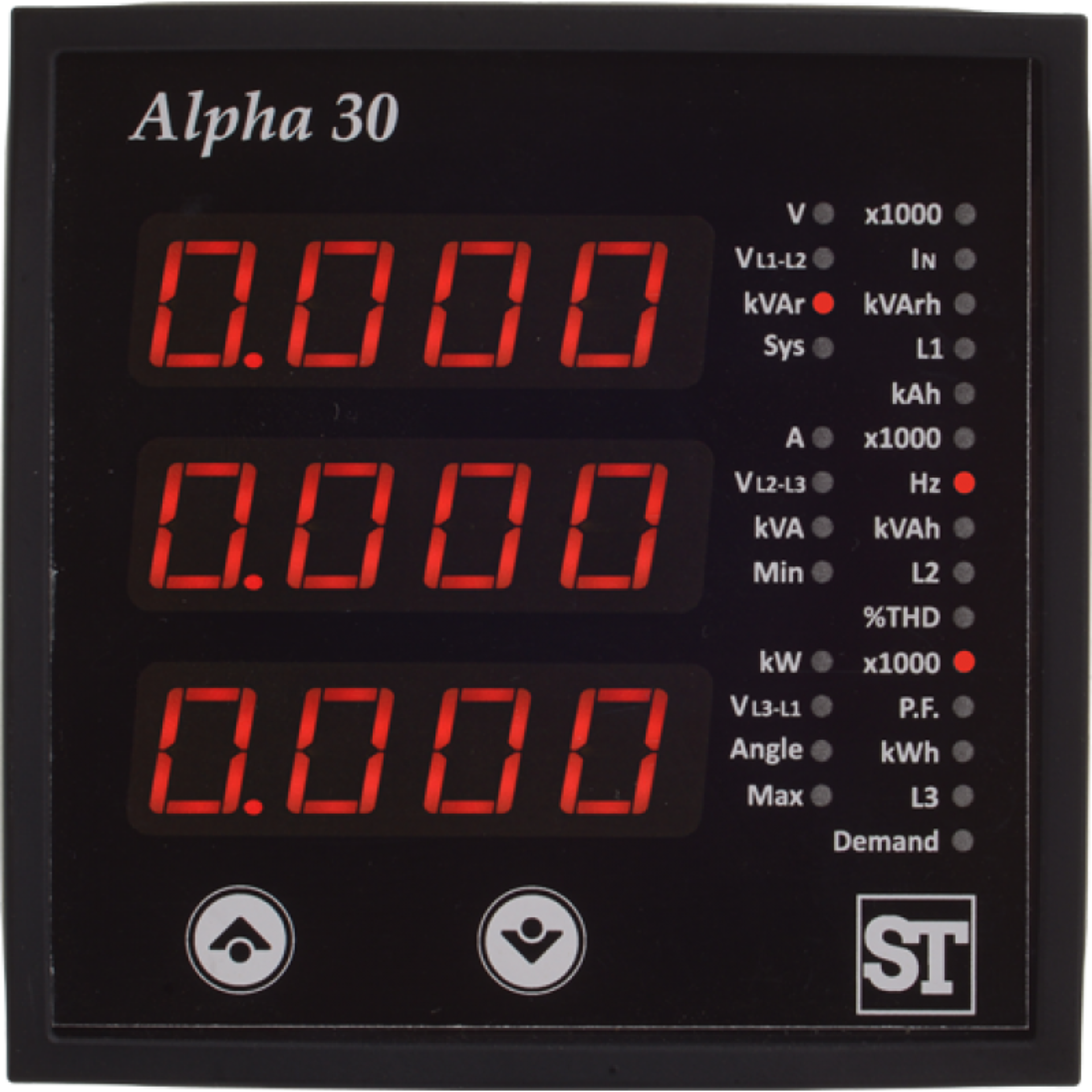

Alpha 30 - IEC Standard
The Alpha 30 is a compact multifunction instrument which measures important electrical parameters in 3 phase 4 Wire and 3 phase 3 Wire Network & replaces the multiple analog panel meters. Special Features -MODBUS (RS-485) Communication (optional) -Pulse/Limit Switch output (optional) -3 Line 4 Digits ultra bright LED Display (up to 9999) -On site Programmable CT/PT Ratios -User selectable CT Secondary 1A/5A -Measurement & Display of RPM, Run hours, On hours, No. of interruption
Overview
The Alpha 30 is a compact multifunction instrument which measures important electrical parameters in 3 phase 4 Wire and 3 phase 3 Wire Network & replaces the multiple analog panel meters. Special Features -MODBUS (RS-485) Communication (optional) -Pulse/Limit Switch output (optional) -3 Line 4 Digits ultra bright LED Display (up to 9999) -On site Programmable CT/PT Ratios -User selectable CT Secondary 1A/5A -Measurement & Display of RPM, Run hours, On hours, No. of interruption
Request a Quote for Alpha 30 - IEC Standard
Product Specifications
- Frequency
- 40–70 Hz
- Mounting
- Panel mount
- Application
- Metering, Energy Management
- Standards
- IEC 1010-1, IEC 61326
- Input frequency
- 40-70 Hz
- PT Secondary
- Onsite settable
- Voltage input options (L-L)
- 120 V / 150 V / 277 V L-L with 1 A or 5 A CT secondary
- Voltage input options (L-N)
- 120 V / 150 V / 208 V L-N with 1 A or 5 A CT secondary
