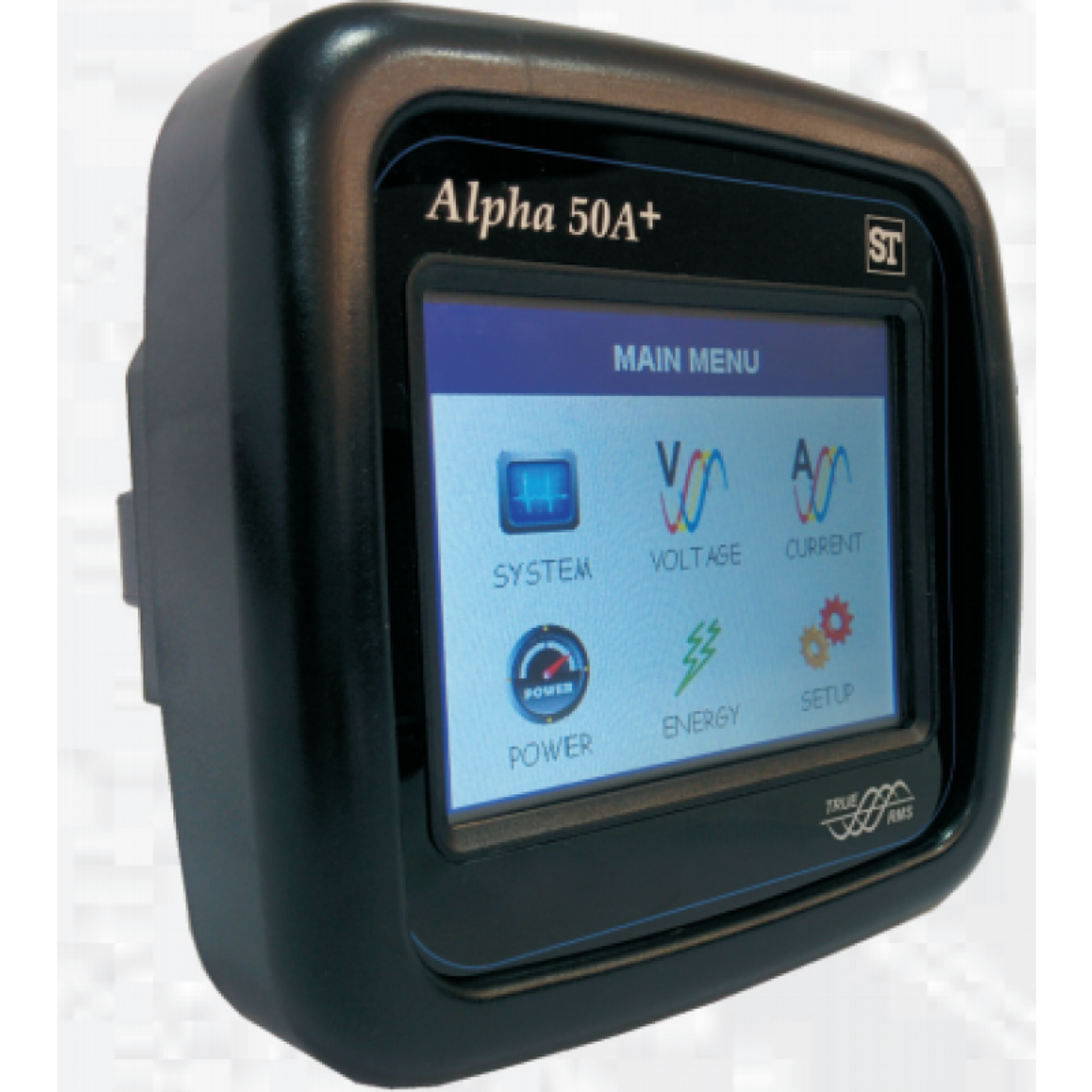

Alpha 50A+ ANSI Standard
Alpha 50A+ ANSI Standard - Power Meters
The Alpha 50A+ is a compact multifunction instrument with touch screenLCD utility which measures important electrical parameters in 3 phase &single phase networks and replaces many analog parameters
Special Features
-True RMS Measurement
-Onsite Programmable
-Low Back Depth
-Phase Reversal Indication
-Touch Screen Graphics LCD
-RS485, Limit or Pulse Output, analog output.
-Ethernet Interface (Optional)
Overview
The Alpha 50A+ is a compact multifunction instrument with touch screenLCD utility which measures important electrical parameters in 3 phase &single phase networks and replaces many analog parameters
Special Features
-True RMS Measurement
-Onsite Programmable
-Low Back Depth
-Phase Reversal Indication
-Touch Screen Graphics LCD
-RS485, Limit or Pulse Output, analog output.
-Ethernet Interface (Optional)
Request a Quote for Alpha 50A+ ANSI Standard
Product Specifications
- Application
- optional output as one pulseoutput or two pulse output for energy measurement
- Enclosure
- Protection for
- Voltage Range
- 50... 100% of Nominal Value
- Current Range
- 10... 100% of Nominal Value
- Power
- 10... 100% of Nominal Current &
- Voltage
- ± 0.5% of range
- Current
- ± 0.5%of range
- Frequency
- ± 0.15% of mid
- Power Factor
- ±1% of Unity
- Input Voltage
- Nominal input voltage
- Input Current
- Nominal input current
- Operating temperature
- -20 to +70°C
- Storage temperature
- -30 to +80°C
- Shock
- 15g in 3 planes
- Vibration
- 10... 55... 10 Hz, 0.15mm amplitude
- frequency range
- Lower Aux Nominal Value
