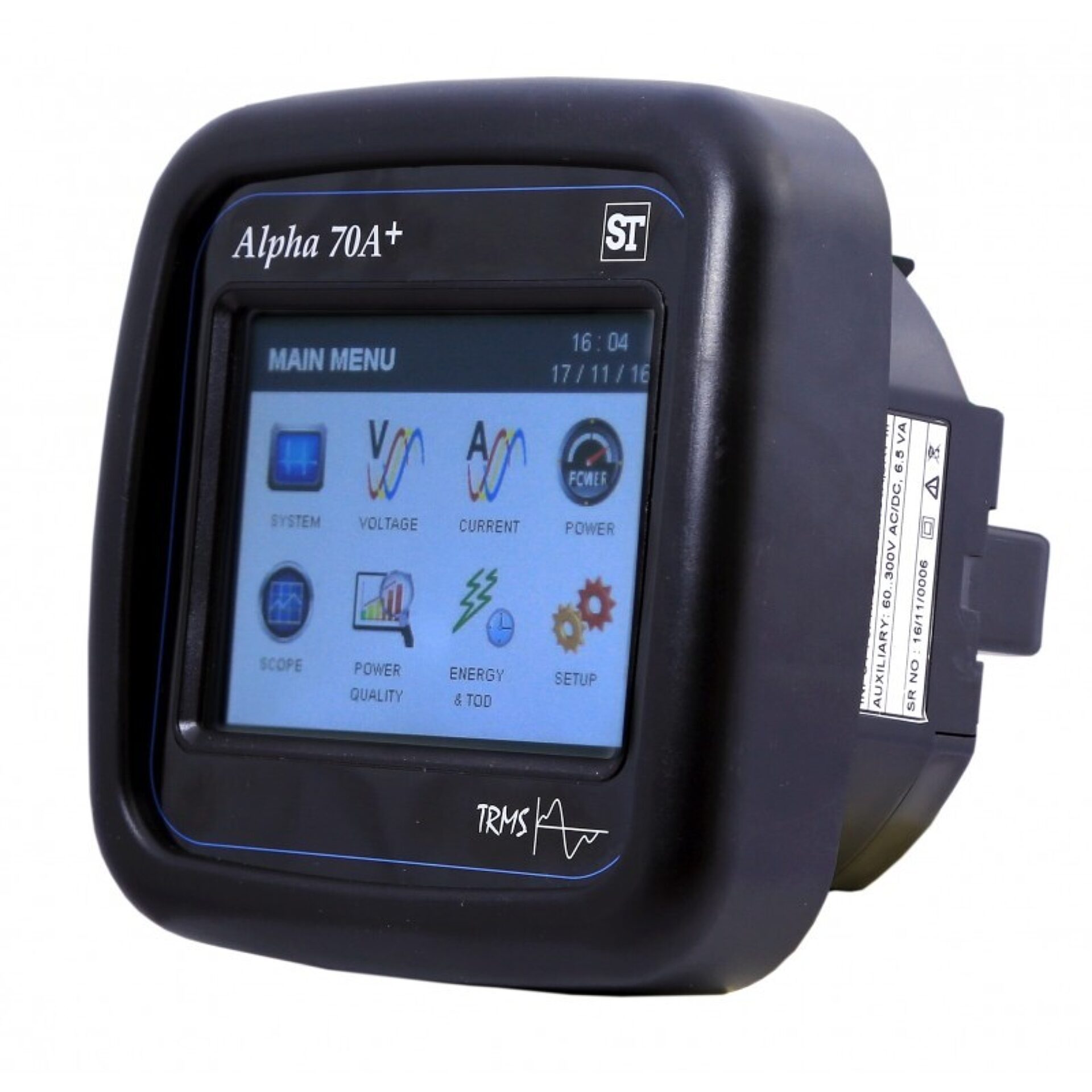

Alpha 70A+ ANSI Standard
Alpha 70A+ ANSI Standard - Power Meters
The Alpha 70A+ is a compact, Multi-function panel mount power quality monitor, which measures,calculates and displays major electrical parameters of three phase power system.
Special Features
-Phasor representation of all 3 phases for system analysis
-Energy class 0.5S as per standard IEC 62053-22
-True representation of voltage & current waveforms
-Real Time Clock (RTC)
-Individual Harmonics upto 56th Harmonic
-Time of use with configurable zones, seasons & tariff profiles which helps energy analysis
Overview
The Alpha 70A+ is a compact, Multi-function panel mount power quality monitor, which measures,calculates and displays major electrical parameters of three phase power system.
Special Features
-Phasor representation of all 3 phases for system analysis
-Energy class 0.5S as per standard IEC 62053-22
-True representation of voltage & current waveforms
-Real Time Clock (RTC)
-Individual Harmonics upto 56th Harmonic
-Time of use with configurable zones, seasons & tariff profiles which helps energy analysis
Request a Quote for Alpha 70A+ ANSI Standard
Product Specifications
- application
- Time of DAY
- Accuracy
- Class 0.5S as per
- Power
- ±0.2% of Nominal value
- Voltage
- ±0.2% of Nominal value
- Current
- ±0.1% of mid frequency
- Frequency
- ±1.0%
- Input Voltage
- 57.7 - 288.68 VL-N On site
- Input Current
- 1A / 5A AC RMS
- Nominal current
- Current Measuring
- Shock
- 10... 150.... 10 Hz
- Vibration
- 0.05%/°C
