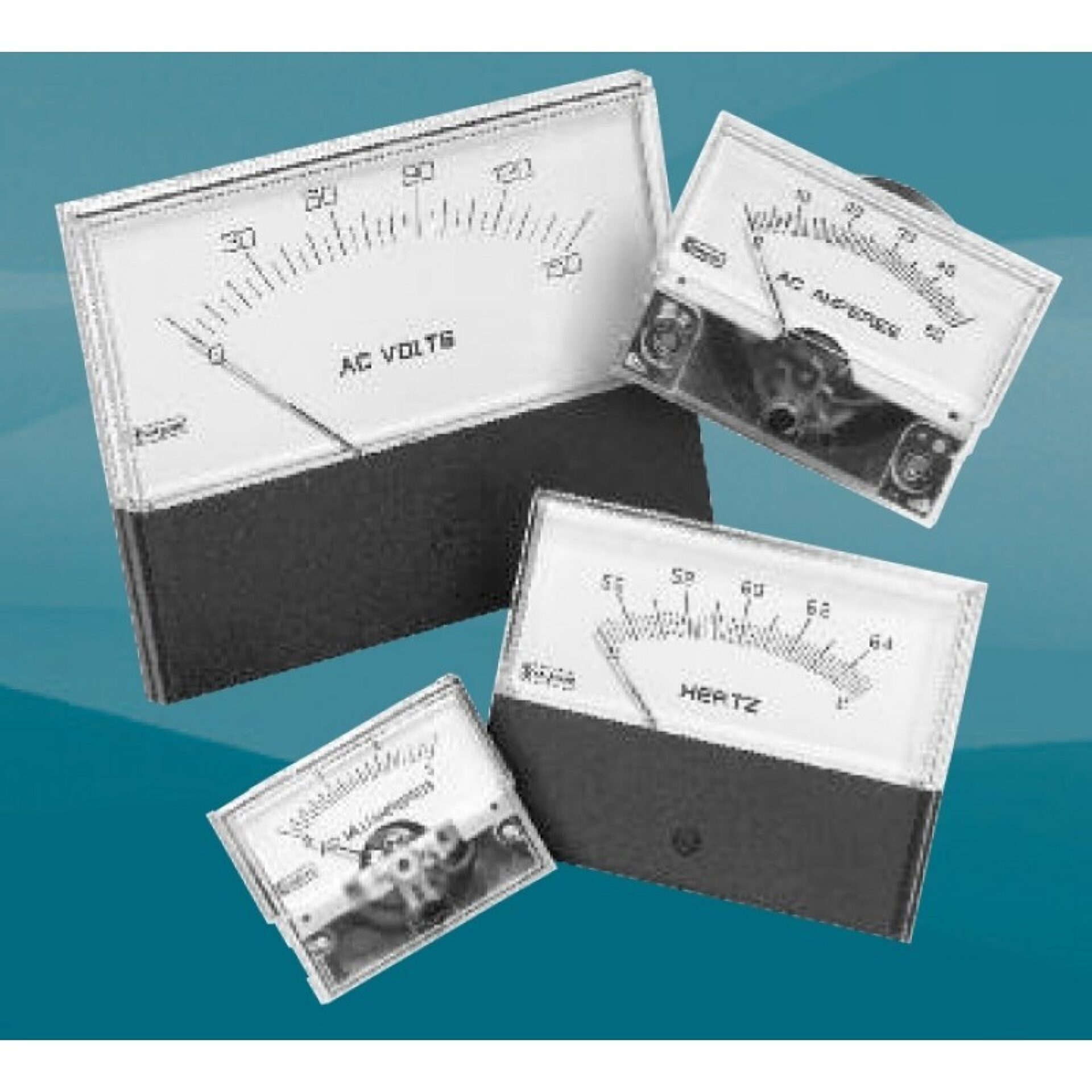

The Challenger range of analogue panel meters offers accurate measurement and indication of most electrical and electronic parameters in industry standard 11?2", 21?2", 31?2" and 41?2" case sizes. This innovative design features a detachable lower fascia plate, which allows the flexibility of either surface or window mounting. The fascia is simply unclipped to achieve the completely flush panel appearance of rear of panel window mounting.
The range offers AC and DC ammeters, voltmeters and frequency meters utilising a high torque pivot and jewel movement. AC moving coil rectified meters provide 1.5% accuracy of the full scale value and feature a rear zero adjuster screw for tamperproof installation. AC moving iron meters also provide 1.5% high accuracy and true RMS measurement.
Overview
The Challenger range of analogue panel meters offers accurate measurement and indication of most electrical and electronic parameters in industry standard 11?2", 21?2", 31?2" and 41?2" case sizes. This innovative design features a detachable lower fascia plate, which allows the flexibility of either surface or window mounting. The fascia is simply unclipped to achieve the completely flush panel appearance of rear of panel window mounting.
The range offers AC and DC ammeters, voltmeters and frequency meters utilising a high torque pivot and jewel movement. AC moving coil rectified meters provide 1.5% accuracy of the full scale value and feature a rear zero adjuster screw for tamperproof installation. AC moving iron meters also provide 1.5% high accuracy and true RMS measurement.
Request a Quote for Challenger Analog Panel Meters - DC Ammeters
Product Specifications
- Applications
- Marine panels
- Accuracy
- DC ammeters and voltmeters: 1.5% 0-100% of full scale deflection
- Frequency
- 100/130V, 200/250V, 360/440V, 50Hz, 60Hz or
- Burden
- Ammeter 0.5VA Voltmeter: 4.5VA Frequency: 4VA
- Overload
- 1.2 continuous x 10 for 0.5 seconds
- Enclosure
- Movement
- Operating temperature
- 0°C to 40°C (-32°F to 104°F)
- Storage temperature
- -20°C +55°C (-4°F to 131°F)
- Vibration
- ANSI C39.1 1981 cl. 5.13
