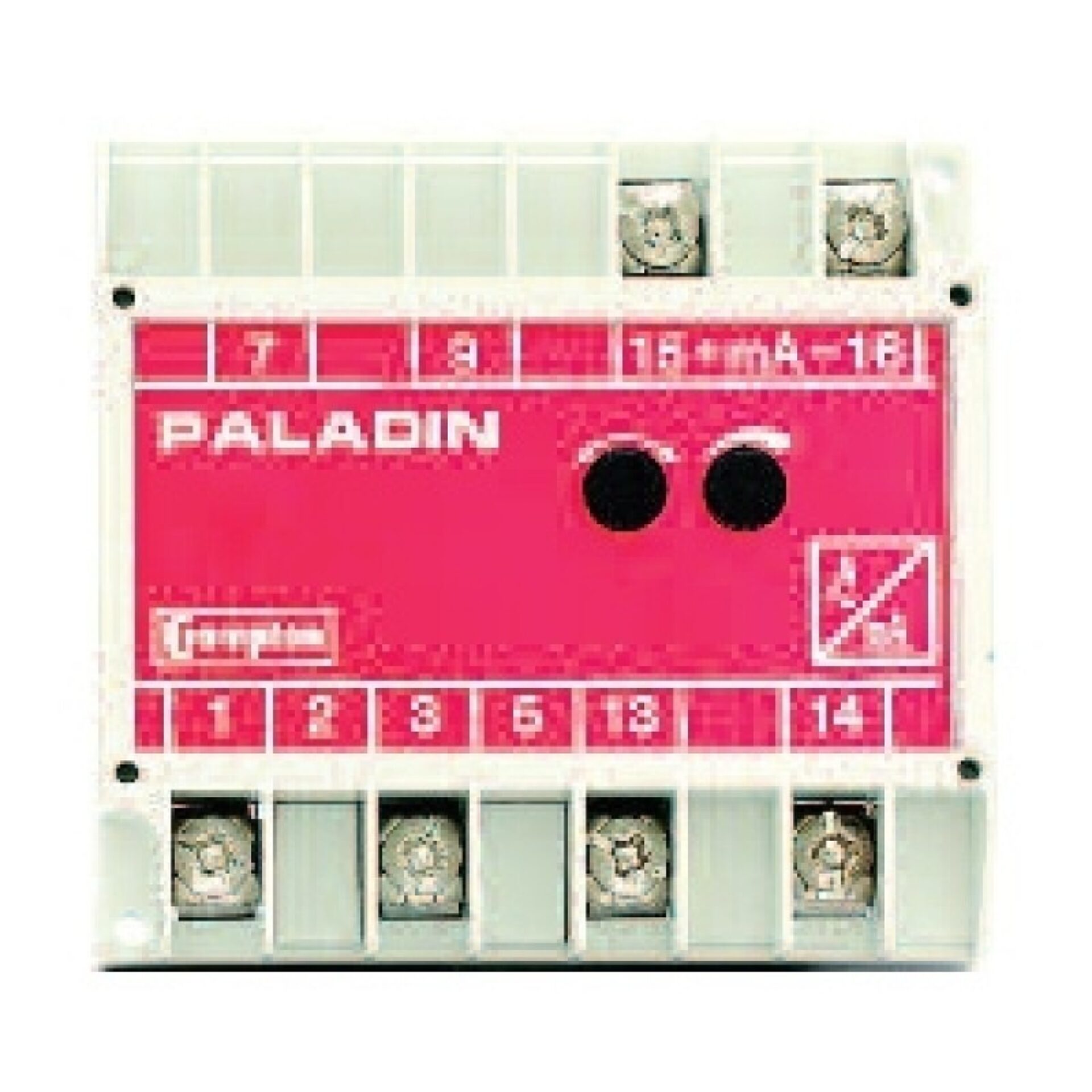

Class 0.5 Current Transducer - DIN Rail
Class 0.5 Current Transducer - DIN Rail - Transducers
Single or three-phase models offering current measurement down to zero input. Average sensing and calibrated to indicate the RMS value of a sine wave with up to 1% distortion. For self powered units, internal power is derived from the input signal and will maintain accuracy to 20% of full scale or less. Input, output and auxiliary are isolated.
Overview
Single or three-phase models offering current measurement down to zero input. Average sensing and calibrated to indicate the RMS value of a sine wave with up to 1% distortion. For self powered units, internal power is derived from the input signal and will maintain accuracy to 20% of full scale or less. Input, output and auxiliary are isolated.
Request a Quote for Class 0.5 Current Transducer - DIN Rail
Product Specifications
- Application
- Switchgear, Motor Control
- Frequency
- Power factor and phase angle
- Temperature range
- Storage -20°C to +70°C operating 0°C to
- Accuracy class
- 0.5 unless otherwise specified
- Accuracy range
- 0 to 120% (except self powered)
- Response time
- <400 ms from 0 to 99% of rated output
- Maximum output
- 24V DC when open circuit
- Output ripple
- <0.5% of full rated output
- Accuracy
- Function
- Current
- 1 or 5A AC
- TERMINALS
- M3.5
- Dimensions
- Model 252
