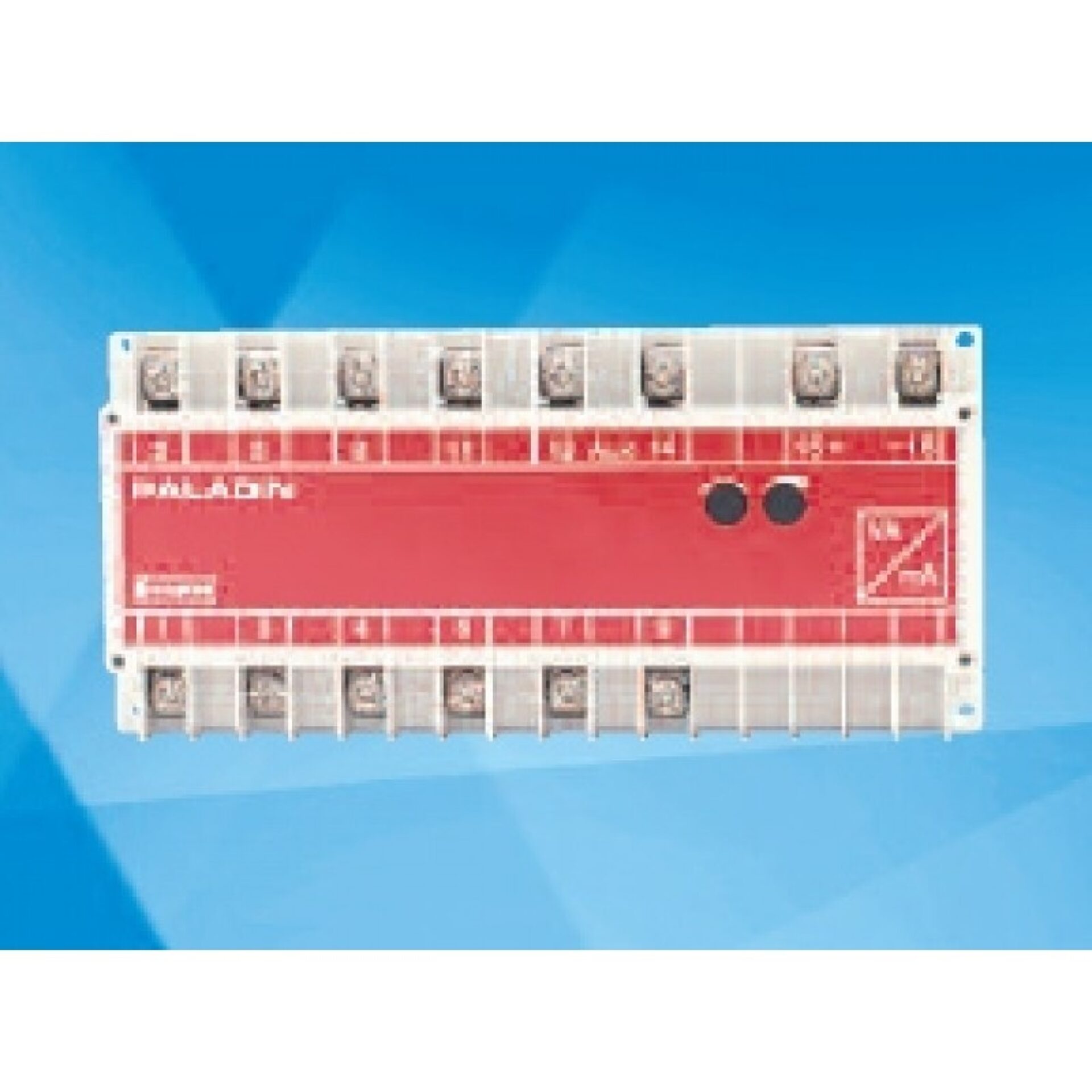

Class 0.5 VA Transducer - DIN Rail
Class 0.5 VA Transducer - DIN Rail - Transducers
A range of VA transducers in single or three-phase, balanced or unbalanced, 3 or 4-wire systems. Class 0.5 products utilise the well established ‘time division multiplication’ method of measuring power. In the self powered products the system voltage provides both power supply and input to the measurements circuit but for systems with large voltage variations auxiliary powered products should be used. Input, output and auxiliaries are isolated.
Overview
A range of VA transducers in single or three-phase, balanced or unbalanced, 3 or 4-wire systems. Class 0.5 products utilise the well established ‘time division multiplication’ method of measuring power. In the self powered products the system voltage provides both power supply and input to the measurements circuit but for systems with large voltage variations auxiliary powered products should be used. Input, output and auxiliaries are isolated.
Request a Quote for Class 0.5 VA Transducer - DIN Rail
Product Specifications
- Application
- Switchgear, Motor Control
- Frequency
- Power factor and phase angle
- Temperature range
- Storage -20°C to +70°C operating 0°C to
- Accuracy class
- 0.5 unless otherwise specified
- Accuracy range
- 0 to 120% (except self powered)
- Response time
- <400 ms from 0 to 99% of rated output
- Maximum output
- 24V DC when open circuit
- Output ripple
- <0.5% of full rated output
- Current
- 1 or 5A AC
- Accuracy
- Function
- TERMINALS
- M3.5
- Dimensions
- Model 252
