Class 0.5 Watt Transducer - DIN Rail
Class 0.5 Watt Transducer - DIN Rail - Transducers

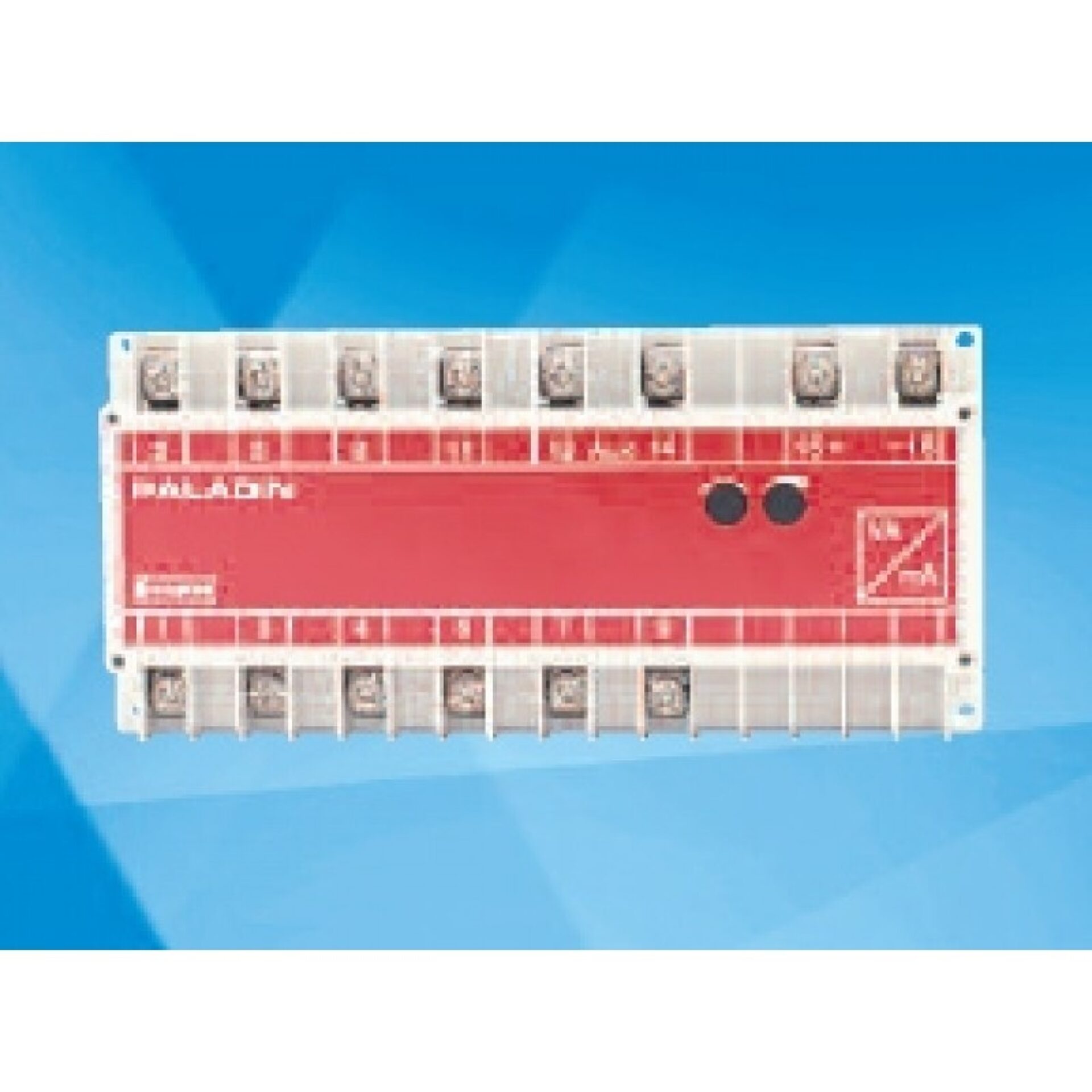

A range of Watt transducers in single or three-phase, balanced or unbalanced, 3 or 4- wire systems. Class 0.5 products utilize the well established ‘time division multiplication’ method of measuring power. In the self powered products the system voltage provides both power supply and input to the measurements circuit but for systems with large voltage variations auxiliary powered products should be used. Input, output and auxiliaries are isolated.
Overview
A range of Watt transducers in single or three-phase, balanced or unbalanced, 3 or 4- wire systems. Class 0.5 products utilize the well established ‘time division multiplication’ method of measuring power. In the self powered products the system voltage provides both power supply and input to the measurements circuit but for systems with large voltage variations auxiliary powered products should be used. Input, output and auxiliaries are isolated.
Request a Quote for Class 0.5 Watt Transducer - DIN Rail
Product Specifications
- Operating Temperature
- 0°C to 60°C
- Mounting
- DIN-rail
- Application
- Switchgear, Motor Control, Energy Management, Building Management
- Standards
- ANSI/IEEE C37.90a, IEC 1010-1, IEC 61326, BS6253, EN 60688
- Frequency
- Power factor and phase angle
- Temperature range
- Storage -20°C to +70°C operating 0°C to
- Accuracy class
- 0.5 unless otherwise specified
- Accuracy range
- 0 to 120% (except self powered)
- Response time
- <400 ms from 0 to 99% of rated output
- Maximum output
- 24V DC when open circuit
- Output ripple
- <0.5% of full rated output
- Current
- 1 or 5A AC
- Accuracy
- Function
- TERMINALS
- M3.5
- Dimensions
- Model 252
Maximum 1000 characters
Specification Table
| phasing | caseSize | connectionDiagram |
|---|---|---|
| 1-phase | 150mm | 14 |
| 3P-3W balanced | 150mm | 19 |
| 3P-4W balanced | 150mm | 24 |
| 3P-3W unbalanced | 150mm | 20 |
| 3P-4W unbalanced | 150mm | 35 |
| 3P-3W balanced 2V | 150mm | 38 |
