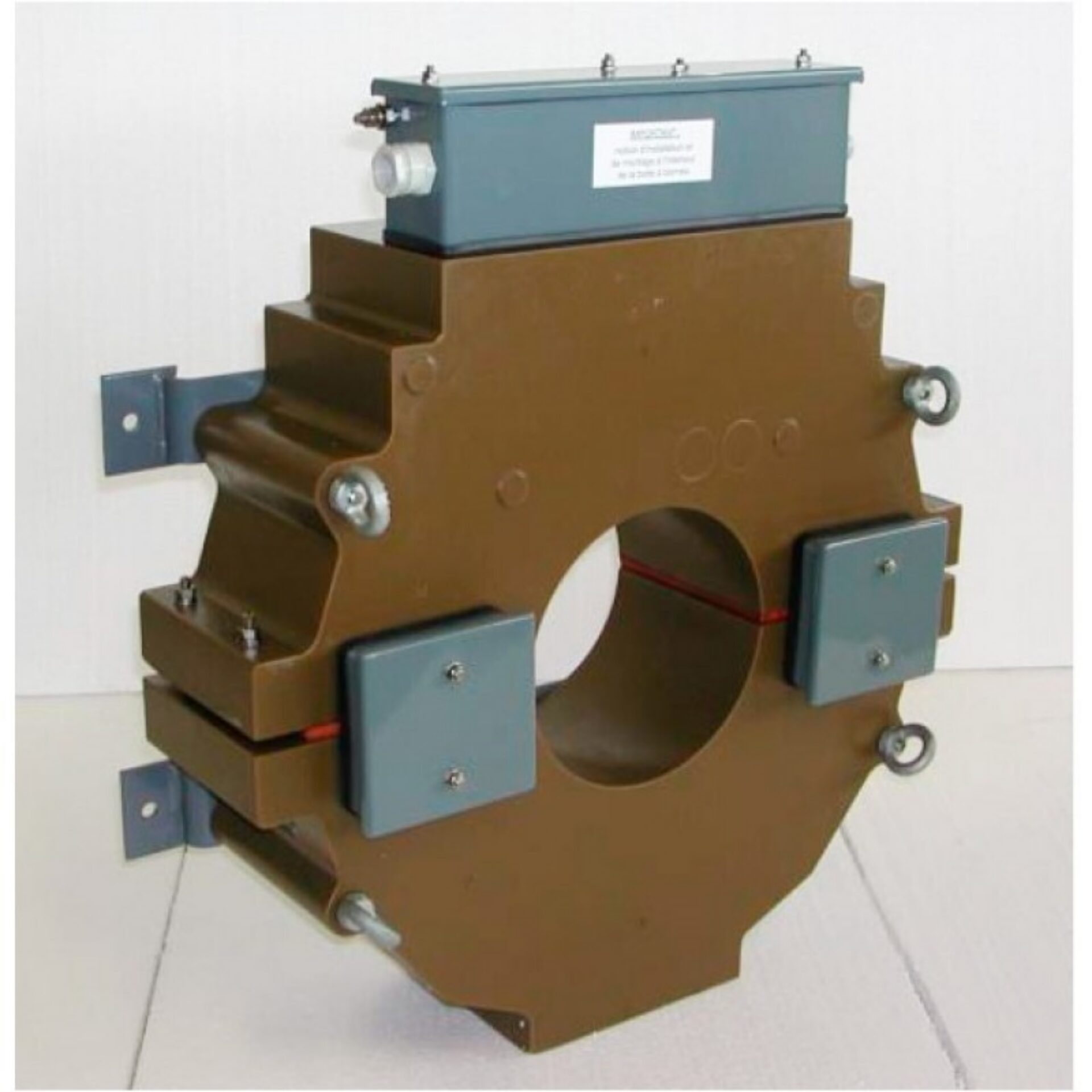

CRE/CRFE SERIES - OUTDOOR SPLIT-CORE CURRENT TRANSFORMERS - 600V Class
CRE/CRFE SERIES - OUTDOOR SPLIT-CORE CURRENT TRANSFORMERS - 600V Class
Indoor Use / Outdoor Use IP43. Rugged Design . Self-extinguishing cast Resin. Relay Class up to C800. Metering Class down to 0.3. Primary current from 50 to 20,000A. Secondary current 1 or 5A. Custom primary & secondary current available upon request. No need to dismantle primary to install over existing bus-bar or cable.
Overview
Indoor Use / Outdoor Use IP43. Rugged Design . Self-extinguishing cast Resin. Relay Class up to C800. Metering Class down to 0.3. Primary current from 50 to 20,000A. Secondary current 1 or 5A. Custom primary & secondary current available upon request. No need to dismantle primary to install over existing bus-bar or cable.
Request a Quote for CRE/CRFE SERIES - OUTDOOR SPLIT-CORE CURRENT TRANSFORMERS - 600V Class
Product Specifications
- Frequency
- 60 Hz
- Operating Temperature
- -40°C to 70°C
- Insulation BIL
- 10 kV
- Mounting
- Outdoor
- Application
- Metering, Protection
- Standards
- ANSI/IEEE C57.13
- CONSTRUCTION
- . Indoor Use / Outdoor Use IP43
- Standards
- IEEE C57-13
- Insulation Level
- 0.6/10kV BIL Full Wave
- Frequency
- 60Hz – other upon request
- Ambient Temperature Range
- -40°C to +70°C / -40°F to +160°F
- Dimensions
- Type
- Weight
- lbs
Maximum 1000 characters
Specification Table
| Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|
| 1.5 | 1.33 |
| 1.5 | 1.33 |
| 1.5 | 1.33 |
| 1.5 | 1.33 |
| 1.5 | 1.33 |
