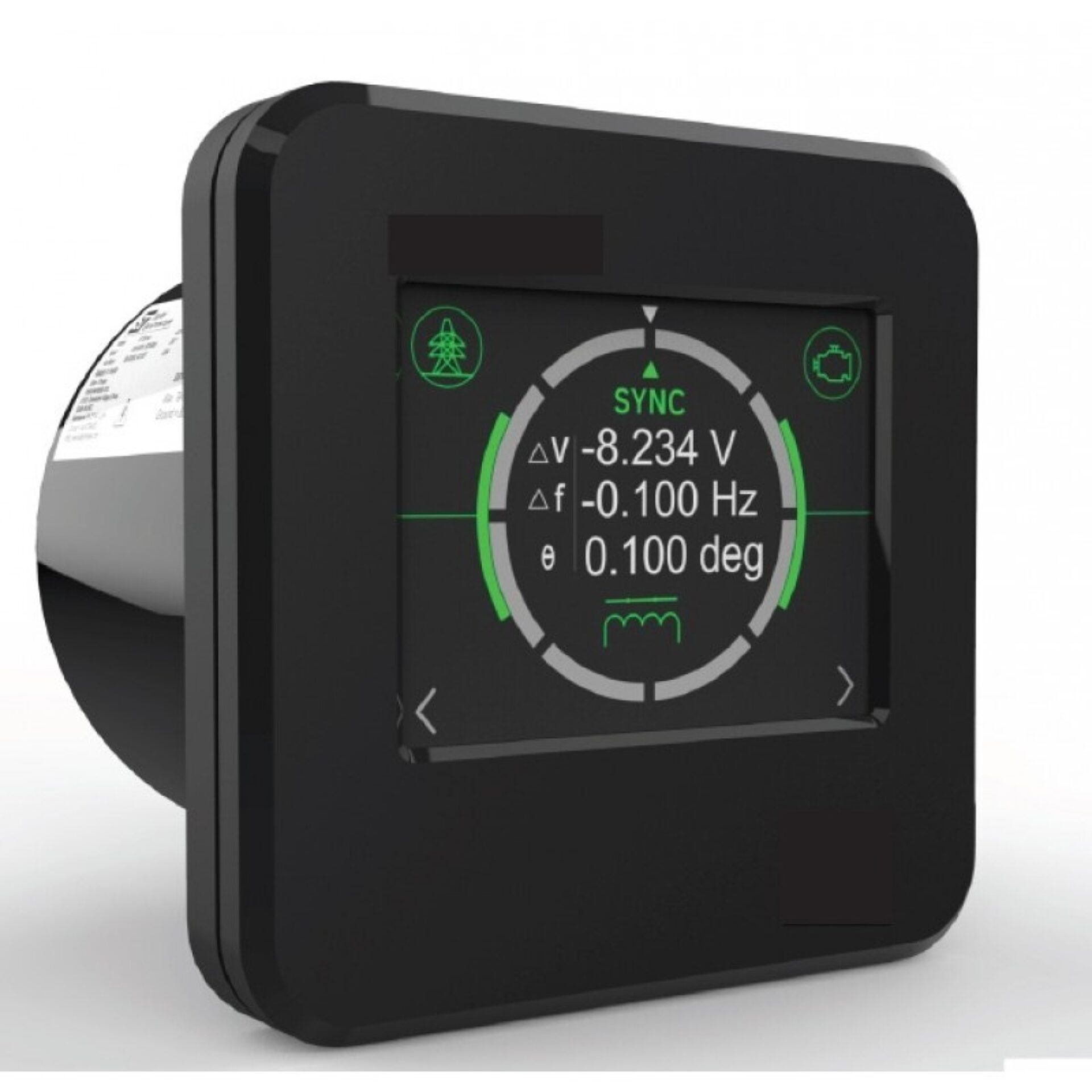

Digital AC Synchroscope
Discover the Spectrum Digital AC Synchroscope—precise, reliable, and easy-to-use for accurate synchronization of generators and power sources. Enhance your electrical setup with this advanced tool designed for efficiency and safety.
Introducing the Digital AC Synchroscope, a cutting-edge solution designed to enhance the precision and efficiency of electrical power system monitoring. Engineered with advanced digital technology, this synchroscope provides real-time, accurate synchronization of generators and other power sources, ensuring seamless integration with the grid or load systems. Its user-friendly interface features a clear digital display that presents critical synchronization parameters such as voltage, frequency, and phase angle, allowing operators to make quick and informed decisions. The device’s robust construction and intuitive controls make it suitable for a wide range of applications, from industrial power plants to maintenance setups, where reliable synchronization is paramount. Unlike traditional analog synchroscopes, the digital AC synchroscope offers enhanced accuracy, stability, and ease of use, reducing operational errors and downtime. Its compact design ensures easy installation and integration into existing systems, while its durable build guarantees long-term performance even in demanding environments. Whether you're overseeing power generation, distribution, or maintenance operations, the Digital AC Synchroscope is an essential tool that combines technological innovation with practical functionality, helping you achieve optimal system performance and safety. Invest in this state-of-the-art device to streamline your synchronization processes and ensure reliable, synchronized power delivery every time.
Overview
Introducing the Digital AC Synchroscope, a cutting-edge solution designed to enhance the precision and efficiency of electrical power system monitoring. Engineered with advanced digital technology, this synchroscope provides real-time, accurate synchronization of generators and other power sources, ensuring seamless integration with the grid or load systems. Its user-friendly interface features a clear digital display that presents critical synchronization parameters such as voltage, frequency, and phase angle, allowing operators to make quick and informed decisions. The device’s robust construction and intuitive controls make it suitable for a wide range of applications, from industrial power plants to maintenance setups, where reliable synchronization is paramount. Unlike traditional analog synchroscopes, the digital AC synchroscope offers enhanced accuracy, stability, and ease of use, reducing operational errors and downtime. Its compact design ensures easy installation and integration into existing systems, while its durable build guarantees long-term performance even in demanding environments. Whether you're overseeing power generation, distribution, or maintenance operations, the Digital AC Synchroscope is an essential tool that combines technological innovation with practical functionality, helping you achieve optimal system performance and safety. Invest in this state-of-the-art device to streamline your synchronization processes and ensure reliable, synchronized power delivery every time.
Request a Quote for Digital AC Synchroscope
Product Specifications
- Frequency
- 45–66 Hz
- Operating Temperature
- -10°C to 55°C
- Mounting
- Panel mount
- Application
- Metering, Generation
- Standards
- IEC 1010-1
- Display
- Touch-screen color graphics LCD, 320 x 240 resolution
- Network Supported
- Single phase / Three phase
- Casing Material
- Thick steel sheet, EDD grade CR
- Max Continuous Input Voltage
- 600 V
- Nominal Input Voltage Range
- 100 - 500 V AC RMS
- Auxiliary Supply
- 100 - 500 V AC/DC, 45 - 65 Hz, 8 VA
- Relay Contact Rating
- 240 V AC, 5 A
- Warm-up Time
- 3 minutes minimum
- Temperature Coefficient
- 0.05% / °C
- Shock
- 15 g in 3 planes
- Vibration
- 10 ... 150 ... 10 Hz, 0.075 mm amplitude
- Relative Humidity
- 0 ... 95% non-condensing
- Pollution Degree
- 2
- Installation Category
- III
- Panel Cutout
- Ø 102 mm circular; 85.9 x 85.9 mm mounting-hole square with Ø 5.1 mm holes
- Bezel Dimensions
- 114.94 x 114.94 mm (front bezel), 107.76 x 107.76 mm case body
- Burden — Value
- 0.2
- Burden — Condition
- typical
- Response Time — Value
- 1000
- Response Time — Condition
- to step input (approx)
- Overall Accuracy — Accuracy
- 1
- Overall Accuracy — Condition
- voltage difference (ΔV), ±1% of nominal value; phase angle ±2°; frequency ±0.15 Hz
- Input Voltage Option — Volts
- 500
- Input Voltage Option — AC/DC
- AC
- Auxiliary Voltage Option — Volts
- 500
- Auxiliary Voltage Option — AC/DC
- ACDC
- Max Overload — Multiplier
- 2
- Max Overload — Duration
- 1
- Max Overload — Condition
- repeated 10 times at 10 second intervals
- Dielectric Test — Voltage
- 2
- Dielectric Test — Duration
- 60
- Enclosure IP Rating — Rating
- IP54
- Displayed Parameters — Count
- 7
- Displayed Parameters — Notes
- ΔV, Δf, Δθ, BUS voltage, BUS frequency, generator voltage, generator frequency
