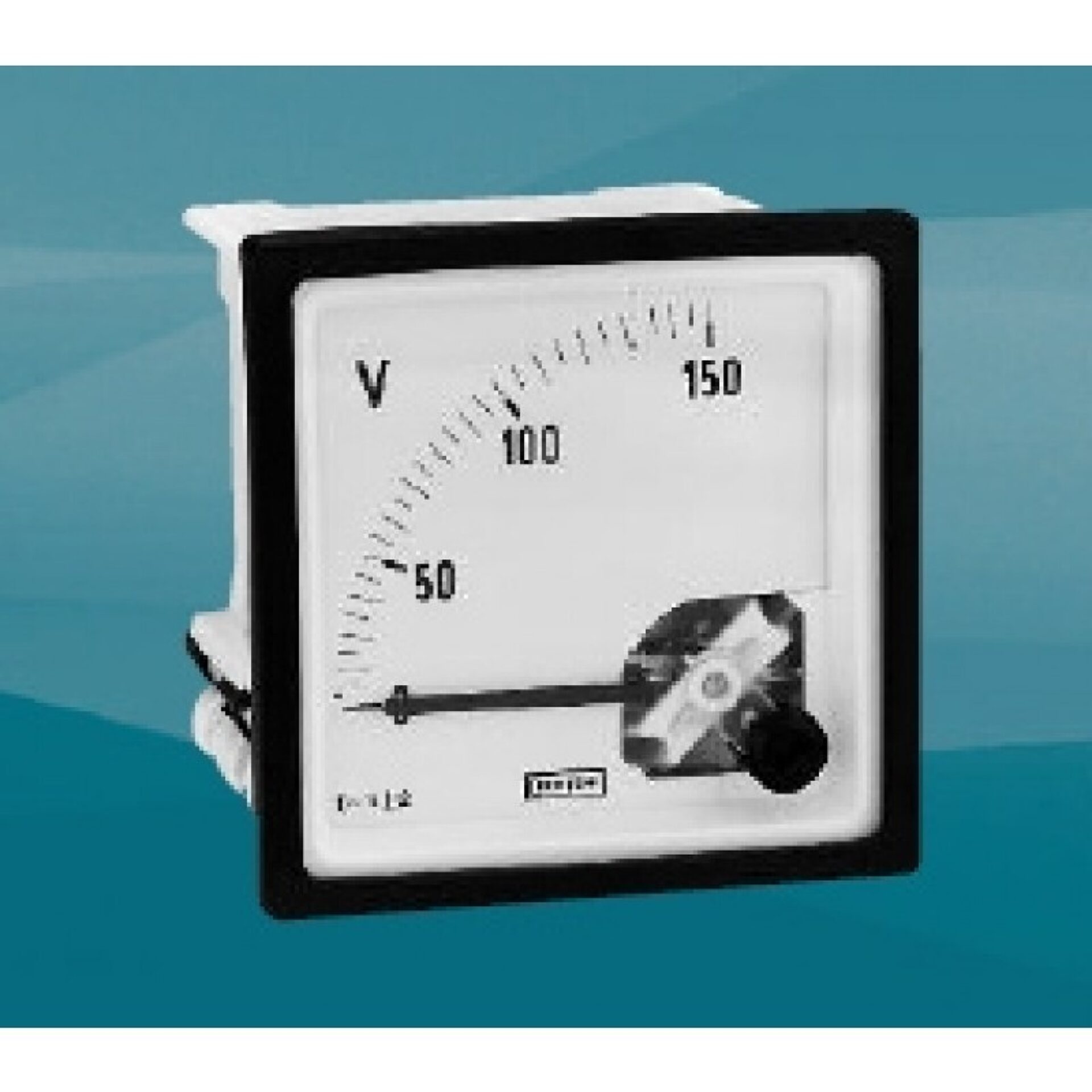

DIN Panel Meters – Short scale - AC Voltmeters
DIN Panel Meters – Short scale - AC Voltmeters
These meters indicate true RMS values and are substantially independent of system waveform. Scales are calibrated down to 20%, and ammeters can have overload scales of x2, x3, x5 or x6 for motor start duty. Ammeters can be supplied for use with -/1A or -/5A current transformers, whilst voltmeters can be scaled for use with voltage transformers. Meters can be used to measure DC at reduced accuracy.
Overview
These meters indicate true RMS values and are substantially independent of system waveform. Scales are calibrated down to 20%, and ammeters can have overload scales of x2, x3, x5 or x6 for motor start duty. Ammeters can be supplied for use with -/1A or -/5A current transformers, whilst voltmeters can be scaled for use with voltage transformers. Meters can be used to measure DC at reduced accuracy.
Request a Quote for DIN Panel Meters – Short scale - AC Voltmeters
Product Specifications
- Application
- Switchgear
- Accuracy
- Class 1.5
- voltage
- current and
- Dimensions
- DIN43700
- Terminals
- Clamp strap M4 for up to 25A. Clamp strap M8 for
- Operating temperature
- -20°C to +60°C
