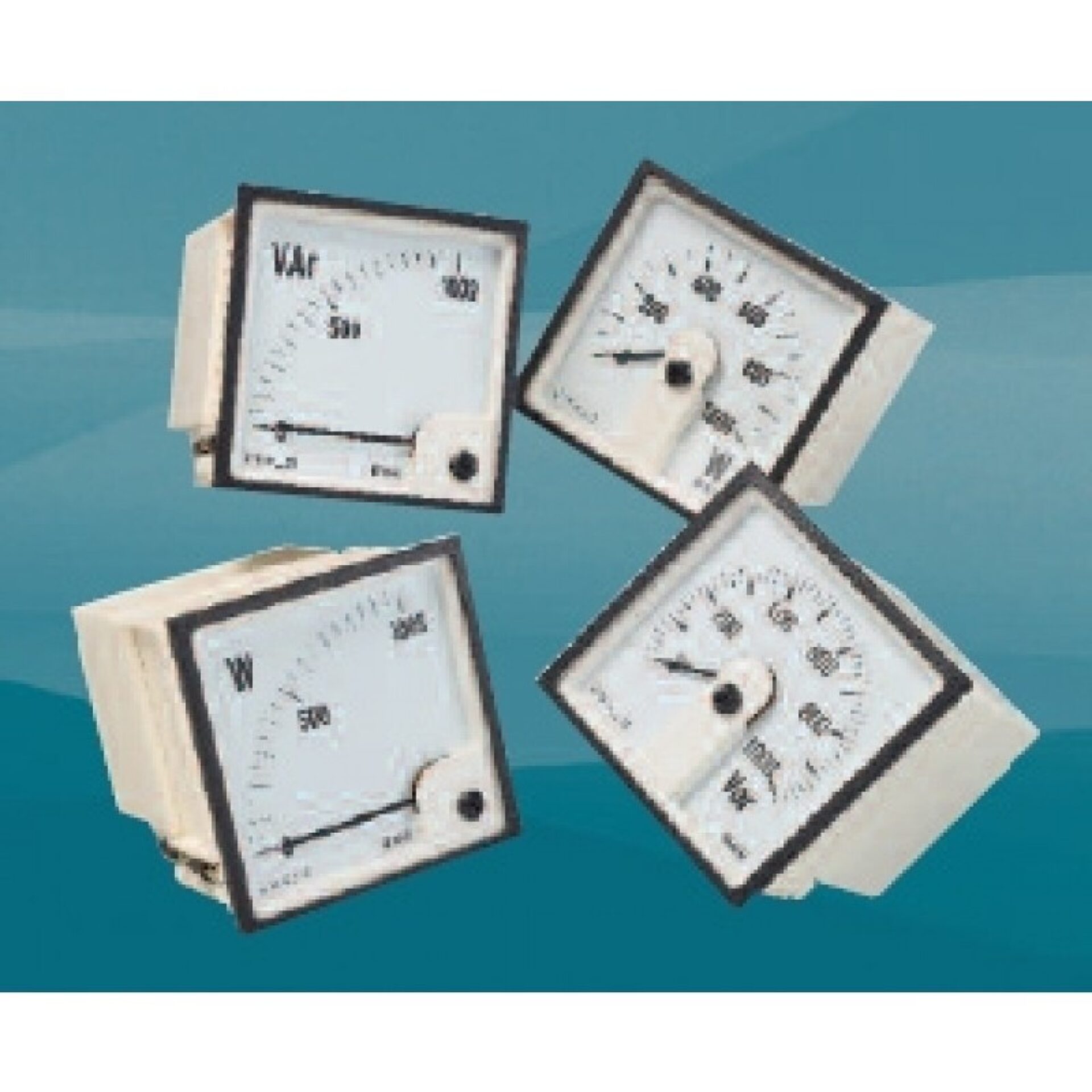

DIN Panel Meters – Wattmeter
DIN Panel Meters – Wattmeter - Analog & Digital Meters
Self contained Wattmeters are able to measure active and reactive power in both balanced and un-balanced, single-, 3-phase 3-wire and 3-phase 4-wire systems. Wattmeters are ideal for clear precise analogue indication of power in applications such as power generation, industrial control and power distribution.
Overview
Self contained Wattmeters are able to measure active and reactive power in both balanced and un-balanced, single-, 3-phase 3-wire and 3-phase 4-wire systems. Wattmeters are ideal for clear precise analogue indication of power in applications such as power generation, industrial control and power distribution.
Request a Quote for DIN Panel Meters – Wattmeter
Product Specifications
- Application
- Switchgear
- Power
- Wattmeters & VArmeters
- Accuracy
- Class 1.5
- Current
- 20-120%
- Overload
- 120% of rated voltage & current continuos
- Frequency
- 50/60Hz (45-65Hz max)
- Power factor
- Unity power factor assumed range 0.5/1/0.5
- Burden
- Current: ≤0.2VA per phase
- Voltage
- ≤1VA per phase
- Dimensions
- Bezel size mm 96
- Terminals
- Clamp strap M4 for up to 25A. Clamp strap M8
- Operating temperature
- -10°C to +55°C
