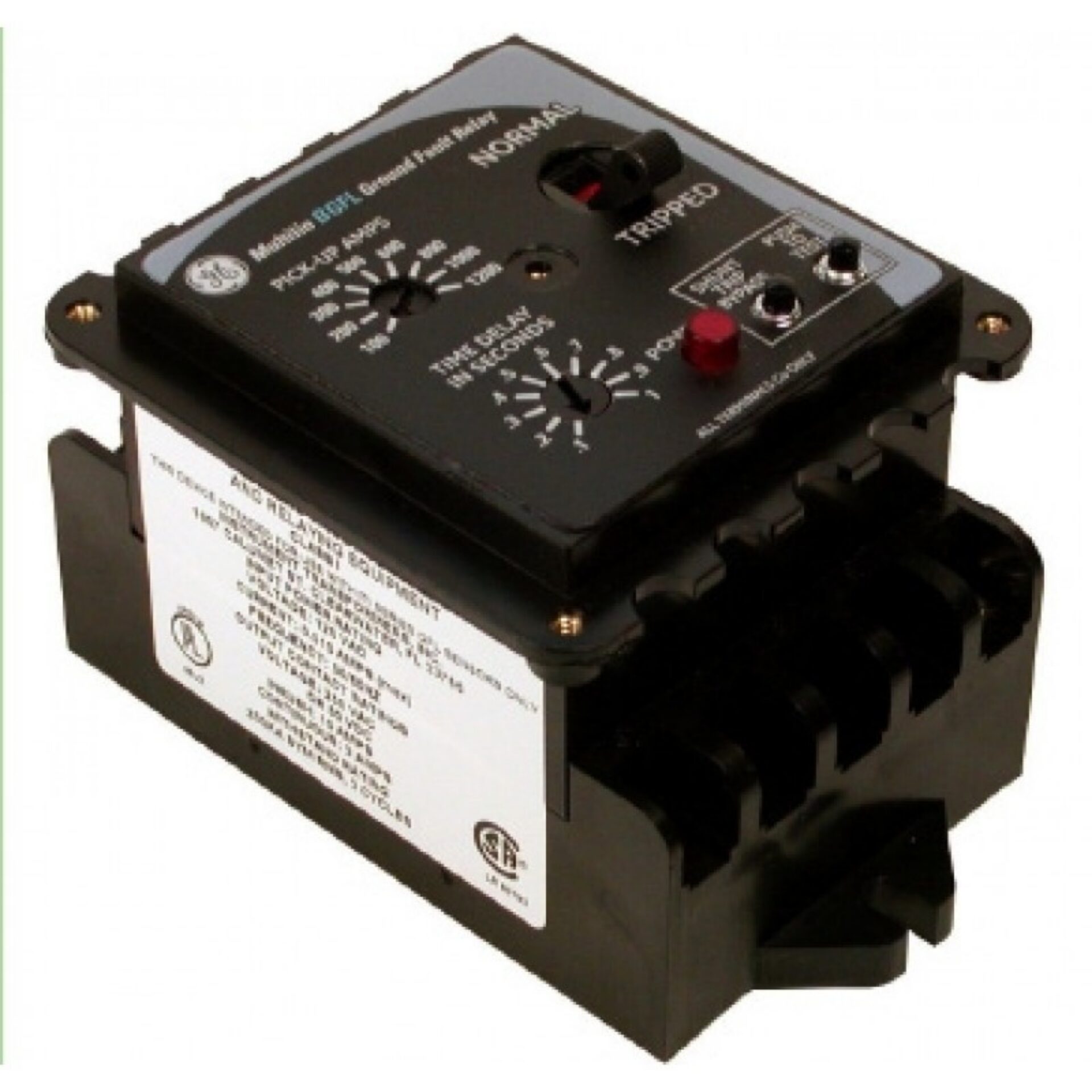

These Class 1 Model BGFL Ground Fault Relays and Sensors are designed to form a system for detecting a ground fault current on a ground ac power system. When a ground fault exceeds a pre-selected Current level and Time Delay setting, the relay initiates a trip signal for a shunt trip disconnect device to open and clear the fault. This BGFL system is designed to provide protection for electrical equipment, not protection for personnel.
Overview
These Class 1 Model BGFL Ground Fault Relays and Sensors are designed to form a system for detecting a ground fault current on a ground ac power system. When a ground fault exceeds a pre-selected Current level and Time Delay setting, the relay initiates a trip signal for a shunt trip disconnect device to open and clear the fault. This BGFL system is designed to provide protection for electrical equipment, not protection for personnel.
Request a Quote for Ground Fault Current Detection System - BGFL
Product Specifications
- Frequency
- 50–60 Hz
- Operating Temperature
- -30°C to 60°C
- Insulation BIL
- 10 kV
- Weight
- 1.5 lbs
- Application
- Protection, Switchgear
- Standards
- UL, CSA, NEC
- FREQUENCY
- 50/60 Hz
- AMBIENT TEMPERATURE RANGE
- -30
- Mounting
- 1=Panel mount
- Current Range
- 60=5 to 60A
- INSULATION LEVEL
- 600 Volt , 10 kV BIL full wave
- Trip Current
- 1=5-60A
Maximum 1000 characters
Specification Table
| Trip Min | Trip Max | Input Voltage Spec | Mounting Style | Internal Circuit |
|---|---|---|---|---|
| 5 | 60 | 120V ac | panel | standard |
| 30 | 360 | 120V ac | panel | standard |
| 100 | 1200 | 120V ac | panel | standard |
| 5 | 60 | 120V ac | door | standard |
| 5 | 60 | 120V ac | panel | zone-interlock |
| 5 | 60 | 120V ac | panel | form-C |
