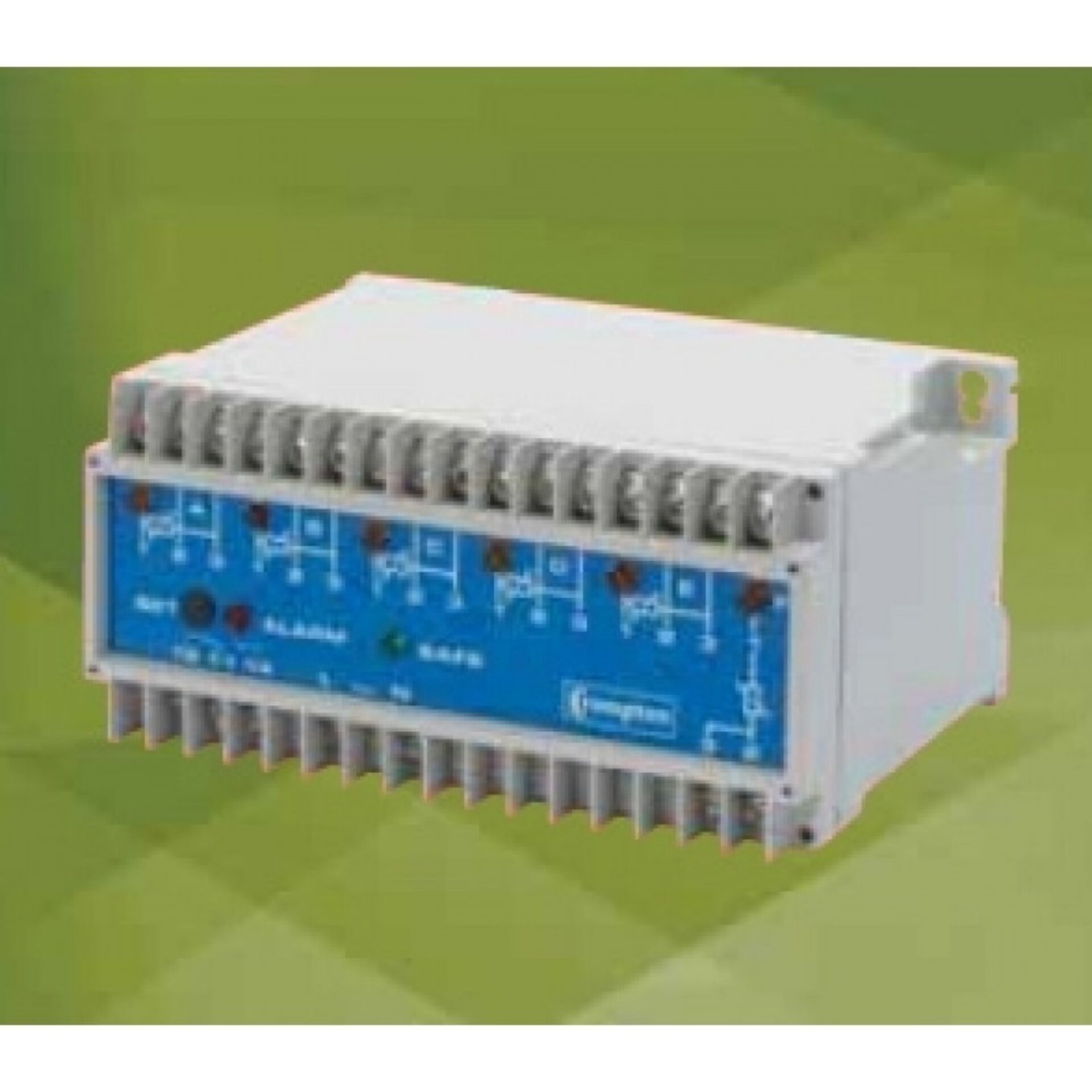

Hot Spot 6 Temperature Relay DIN Rail
Hot Spot 6 Temperature Relay DIN Rail - Protector Relays
The Hot Spot 6 protector is a temperature trip relay accepting up to six inputs from resistance temperature detector (RTD) elements and provides one user adjustable trip point which can be used to initiate alarms, cooling or shutdown when the monitored temperature exceeds the set limit. The relay is ideally suited for the protection of electric motor windings, transformers, generator windings and bearing temperature.
Overview
The Hot Spot 6 protector is a temperature trip relay accepting up to six inputs from resistance temperature detector (RTD) elements and provides one user adjustable trip point which can be used to initiate alarms, cooling or shutdown when the monitored temperature exceeds the set limit. The relay is ideally suited for the protection of electric motor windings, transformers, generator windings and bearing temperature.
Request a Quote for Hot Spot 6 Temperature Relay DIN Rail
Product Specifications
- Frequency
- 50–60 Hz
- Operating Temperature
- 0°C to 60°C
- Weight
- 2.2 lbs
- Mounting
- DIN-rail
- Application
- Switchgear, Distribution, Motor Control, Process Control
- Standards
- ANSI/IEEE C37.90a
- Overload
- 1.2 x rating continuously
- Operating temperature
- 0°C to +60°C (0°C to +40°C for UL models)
- Storage temperature
- –20°C to +70°C
- Material
- Flame retardant polycarbonate/ABS
- Dimensions
- 150mm (5.9") wide x 70mm (2.8") high
- Weight
- 1.0Kg approx
Maximum 1000 characters
Specification Table
| Input Voltage Spec | Mounting Style | Internal Circuit |
|---|---|---|
| 110-240V AC ±20% | DIN | standard |
