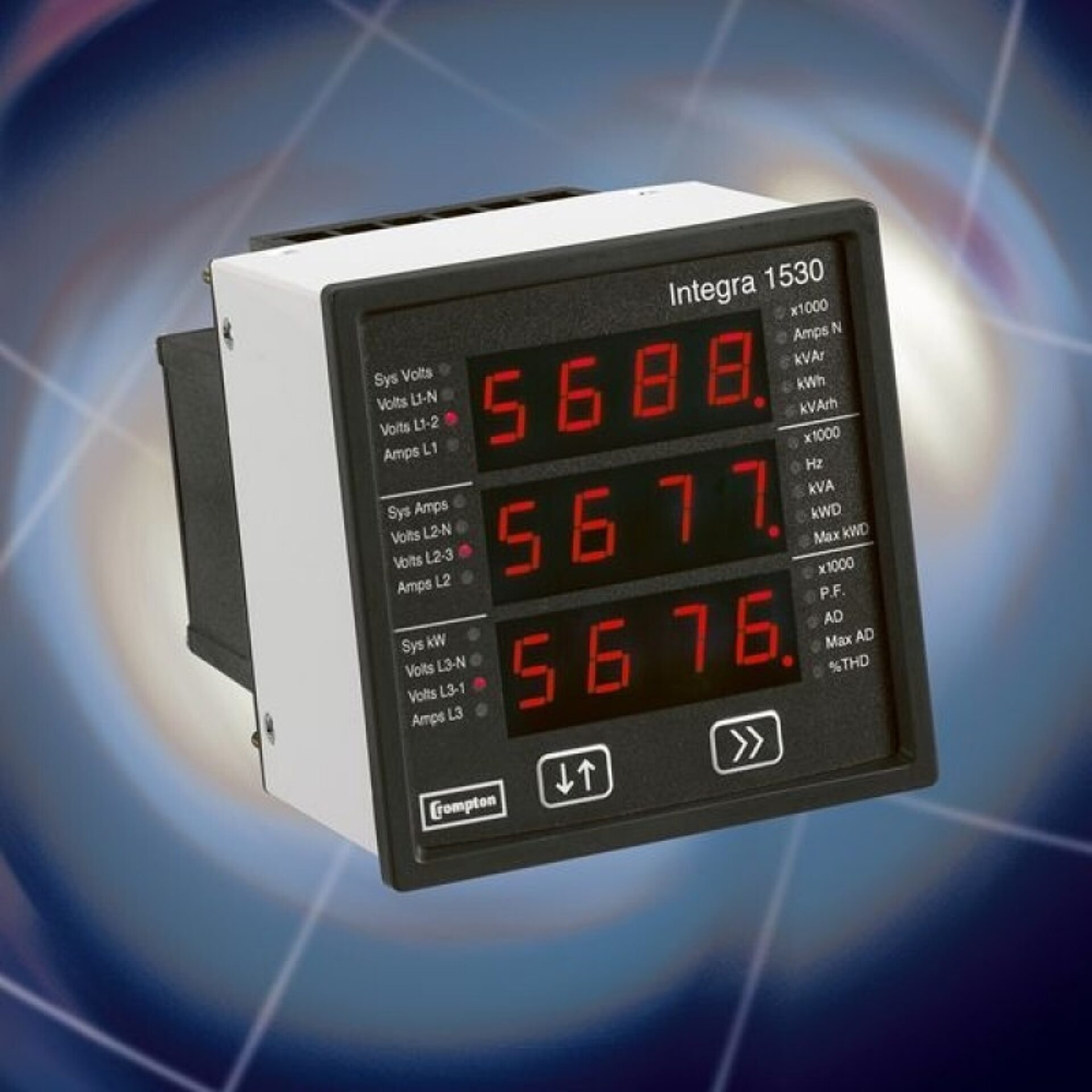

Integra 1530 Digital Metering System
Integra 1530 Digital Metering System - Power Meters
The Integra 1530 series instruments provide high accuracy <0.2% measurement, adisplay and communication of all major electrical and power quality parameters, including true rms system values, and total harmonic distortion (THD) up to the 31st harmonic.
This DIN 96 panel mounting enclosure offers programming and display of up to 34 power measurement parameters. Optional pulsed, analogue and digital communication outputs, allow the communication of information of up to 50 measured parameters into building management systems. A Windows-based software package is available to remotely configure the Integra dms and display all 60 major parameters.
Overview
The Integra 1530 series instruments provide high accuracy <0.2% measurement, adisplay and communication of all major electrical and power quality parameters, including true rms system values, and total harmonic distortion (THD) up to the 31st harmonic.
This DIN 96 panel mounting enclosure offers programming and display of up to 34 power measurement parameters. Optional pulsed, analogue and digital communication outputs, allow the communication of information of up to 50 measured parameters into building management systems. A Windows-based software package is available to remotely configure the Integra dms and display all 60 major parameters.
Request a Quote for Integra 1530 Digital Metering System
Product Specifications
- Standards
- UL file no: E20300
- Primary current
- Max 9999:5A (360MW max**)
- Secondary voltage
- Nominal system voltage
- kVA
- kW
- input voltage
- second intervals
- supply voltage
- (85-287V, AC absolute) (85-312V, DC absolute)
- Voltage
- 80-120% of nominal (functional 5-120%)
- Current
- 5-120% of nominal
- Frequency
- 45-66Hz
- Power factor
- 0.8 capacitive – 1 – 0.8 inductive
- Ambient temperature
- 23°±1°C
- Dimensions
- Specifications continued
- Enclosure
- Enclosure style
- Material
- Polycarbonate
- Terminals
- Shrouded screw-clamp
- Operating temperature
- -20 to +60°C
- Storage temperature
- -30 to +80°C
- Shock
- 30g in 3 planes
- Vibration
- 10-15Hz, 1.5mm peak-to-peak/15-150Hz @ 1g
