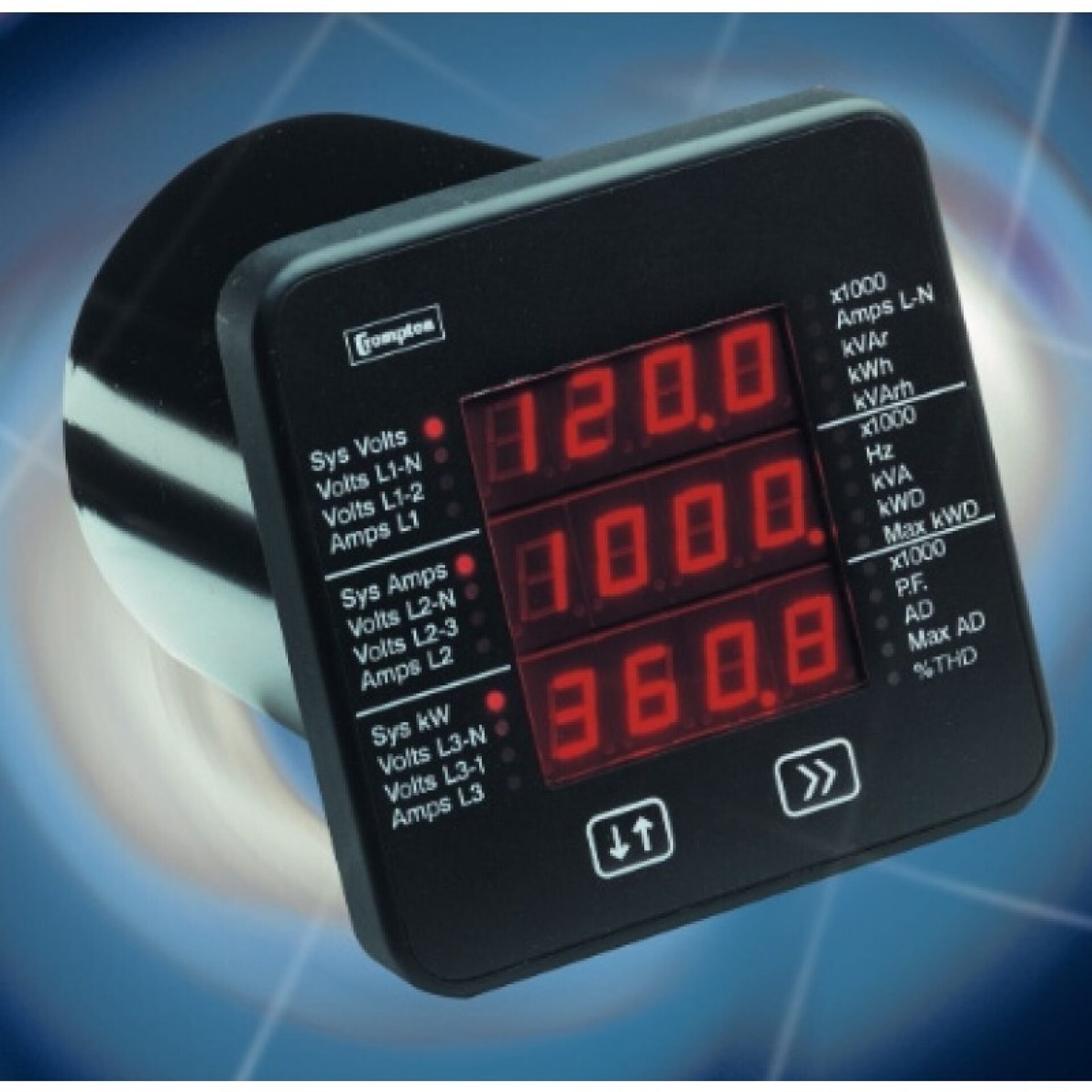

The Integra 1540 dms series provides programmable measurement, display and communication of up to 31 major electrical and power quality parameters including true rms system values, total harmonic distortion (THD) and power quality data. The menu-driven interface allows the programming of voltage, current, and power measurement parameters. Status of all parameters can be viewed through 13 screens on the thee-line, four-digit LED display. The Integra 1540 meter has pulsed and digital communication outputs.
Overview
The Integra 1540 dms series provides programmable measurement, display and communication of up to 31 major electrical and power quality parameters including true rms system values, total harmonic distortion (THD) and power quality data. The menu-driven interface allows the programming of voltage, current, and power measurement parameters. Status of all parameters can be viewed through 13 screens on the thee-line, four-digit LED display. The Integra 1540 meter has pulsed and digital communication outputs.
Request a Quote for Integra 1540 Digital Metering System
Product Specifications
- Application
- Switchgear
- Standards
- UL file no: 140758
- Primary current
- Max 9999:5A (360MW max**)
- Secondary voltage
- Nominal system voltage
- kVA
- kW
- input voltage
- at 10 second intervals
- voltage
- (85-287V AC absolute) (85-312V DC absolute)
- Current
- 5-120% of nominal (50%-120% for THD)
- Frequency
- 45-66Hz
- Power factor
- 0.5 inductive – 1 – 0.8 capacitive
- Power
- ±0.1% of range ±0.9% of reading
- Enclosure
- Enclosure style
- Material
- Polycarbonate front and base, steel case
- Terminals
- Barrier terminal strip 6-32 binding head screw
- Operating temperature
- -20 to +70°C
- Storage temperature
- -30 to +80°C
- Shock
- 30g in 3 planes
- Vibration
- 10-15Hz, 1.5mm peak to peak/15-150Hz@1g
- Dimensions
- 4.31" high x 4.31" wide x 6.7" deep 109.4mm high x 109.4mm
