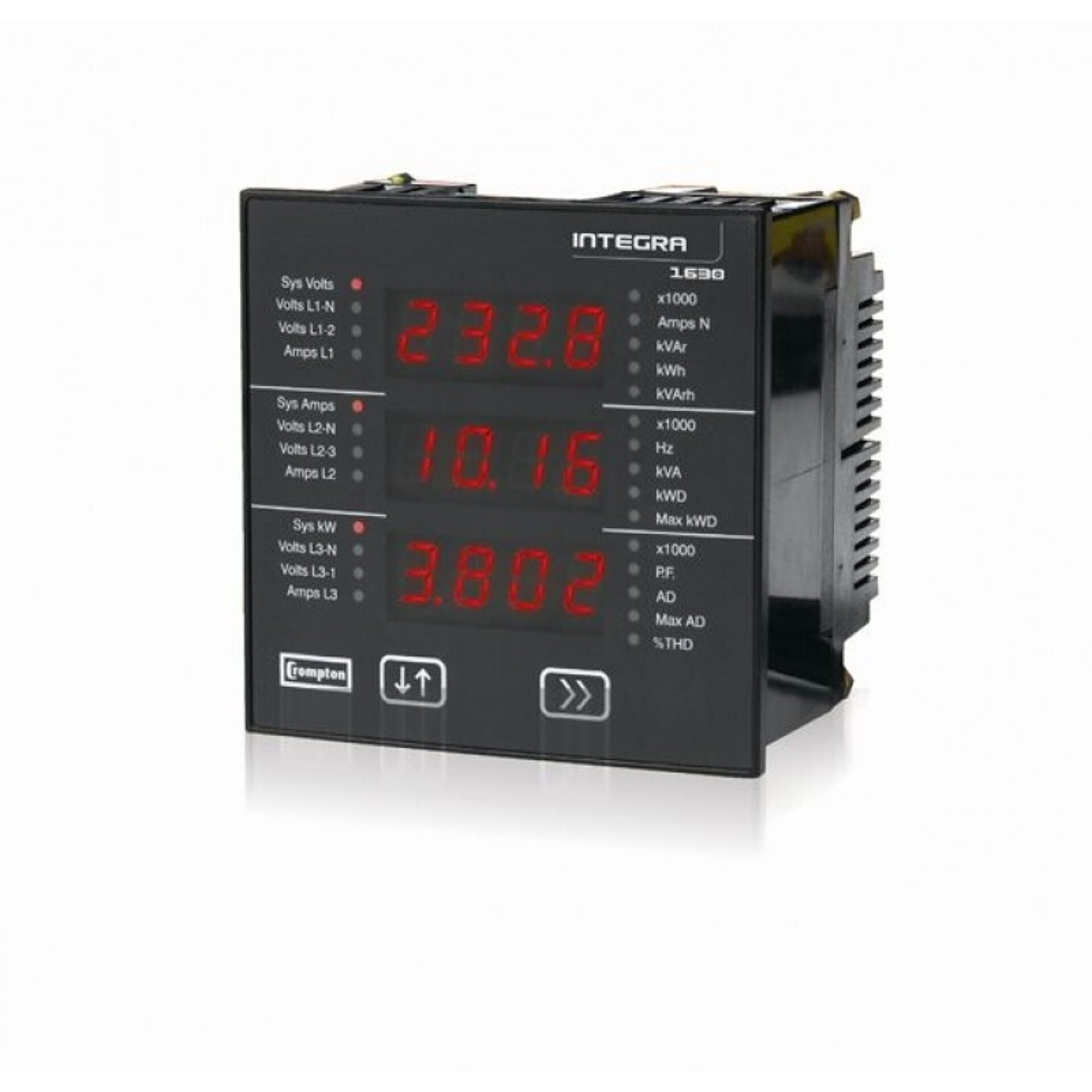

Integra 1630 Digital Metering System
Integra 1630 Digital Metering System - Power Meters
The Integra 1630 digital metering system (dms) provides high accuracy 0.2%
measurement, display and communication of all major electrical and power quality
parameters including total harmonic distortion (THD) up to the 31st harmonic. To
suit user requirements, the range includes single-phase, three-phase three-wire and
three-phase four-wire capability, all selectable at the point of installation.
This DIN 96 panel mounting enclosure offers simple programming and display of
up to 35 electrical parameters via a simple menu-driven user interface on the front
panel. Optional pulsed and digital communication outputs are available, to allow
up to 60 parameters to be communicated to building management systems. A
Windows-based software package is available to remotely configure the Integra dms
and display all 60 major parameters.
Overview
The Integra 1630 digital metering system (dms) provides high accuracy 0.2%
measurement, display and communication of all major electrical and power quality
parameters including total harmonic distortion (THD) up to the 31st harmonic. To
suit user requirements, the range includes single-phase, three-phase three-wire and
three-phase four-wire capability, all selectable at the point of installation.
This DIN 96 panel mounting enclosure offers simple programming and display of
up to 35 electrical parameters via a simple menu-driven user interface on the front
panel. Optional pulsed and digital communication outputs are available, to allow
up to 60 parameters to be communicated to building management systems. A
Windows-based software package is available to remotely configure the Integra dms
and display all 60 major parameters.
Request a Quote for Integra 1630 Digital Metering System
Product Specifications
- Standards
- IEC1010-1 (BSEN 61010-1 – 2001)
- Frequency
- Power factor (overall)
- input voltage
- 10 second intervals
- input current
- at 5 minute intervals
- voltage
- (85-287V AC absolute limits)
- Current
- 5-120% of nominal
- Power factor
- 0.8 capacitive–1–0.8 inductive
- Ambient temperature
- 23 ±1°C
- Enclosure
- Enclosure style
- Material
- Polycarbonate
- Terminals
- Shrouded screw-clamp 0.05mm to 4mm wire
- Operating temperature
- -20 to +60°C
- Storage temperature
- -30 to +80°C
- Shock
- 30g in 3 planes
- Vibration
- 10-18Hz, 1.5mm peak-to-peak 18-150Hz @1g
- Dimensions
- 96mm wide x 96mm high x 79mm deep (max). Typically
