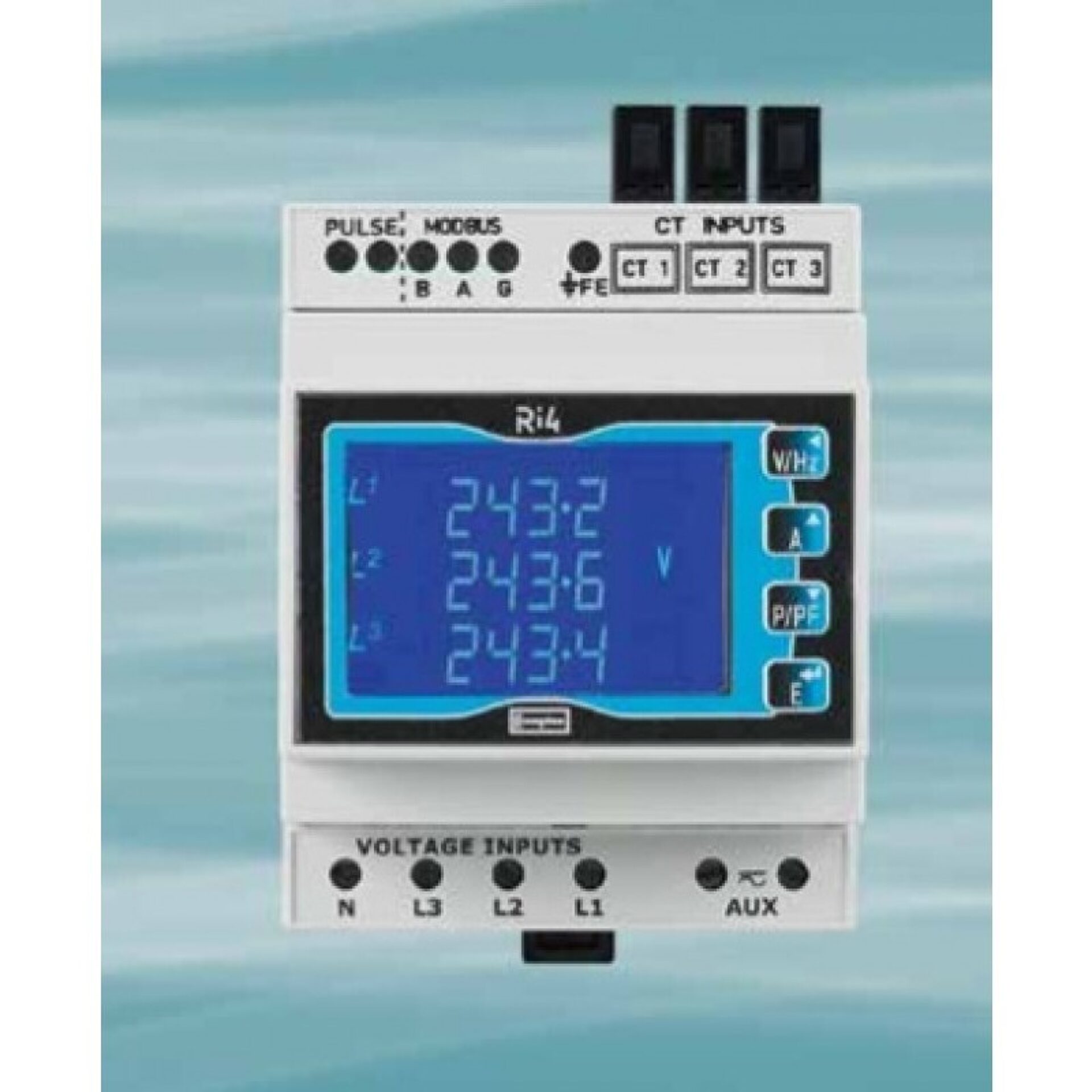

Integra RI4 Digital Metering System
Integra RI4 Digital Metering System - Power Meters
The Integra Ri4 digital metering system (dms) voltage input of 0.333 volts AC
makes it an ideal meter for energy monitoring applications while its compact
DIN-rail enclosure allows space saving for retrofit applications.
The Integra Ri4 dms is an accurate and cost effective solution for measurement
and display of all major electrical and power quality parameters. Its easy
programming, mounting and user-friendly navigation make the Integra Ri4 dms an
ideal choice for customers who require reliable energy measurement.
Designed, developed and manufactured in the UK Integra Ri4 meter is built to high
quality standards utilising the latest microprocessor and manufacturing technology.
The product features a DIN-rail enclosure, backlit LCD display and user
programmable CT ratios, all accessible via an intuitive user interface. Integra Ri4
dms measures 17 electrical parameters including total harmonic distortion (THD)
measurement up to the 31st harmonic.
Overview
The Integra Ri4 digital metering system (dms) voltage input of 0.333 volts AC
makes it an ideal meter for energy monitoring applications while its compact
DIN-rail enclosure allows space saving for retrofit applications.
The Integra Ri4 dms is an accurate and cost effective solution for measurement
and display of all major electrical and power quality parameters. Its easy
programming, mounting and user-friendly navigation make the Integra Ri4 dms an
ideal choice for customers who require reliable energy measurement.
Designed, developed and manufactured in the UK Integra Ri4 meter is built to high
quality standards utilising the latest microprocessor and manufacturing technology.
The product features a DIN-rail enclosure, backlit LCD display and user
programmable CT ratios, all accessible via an intuitive user interface. Integra Ri4
dms measures 17 electrical parameters including total harmonic distortion (THD)
measurement up to the 31st harmonic.
Request a Quote for Integra RI4 Digital Metering System
Product Specifications
- Dimensions
- Button
- Frequency
- Volts L1 - N THD%
- kVA
- kW Max Demand
- Response time
- 1 sec
- Enclosure
- Enclosure style
- Material
- Polycarbonate to UL94V0
- Weight
- 300g
- Terminals
- Shrouded screw-clamp 0.05-4mm wire
- Operating temperature
- -10°C to +55°C
- Storage temperature
- -20°C to +70°C
- Shock
- 30g in 3 planes
- Vibration
- 10Hz to 50Hz
