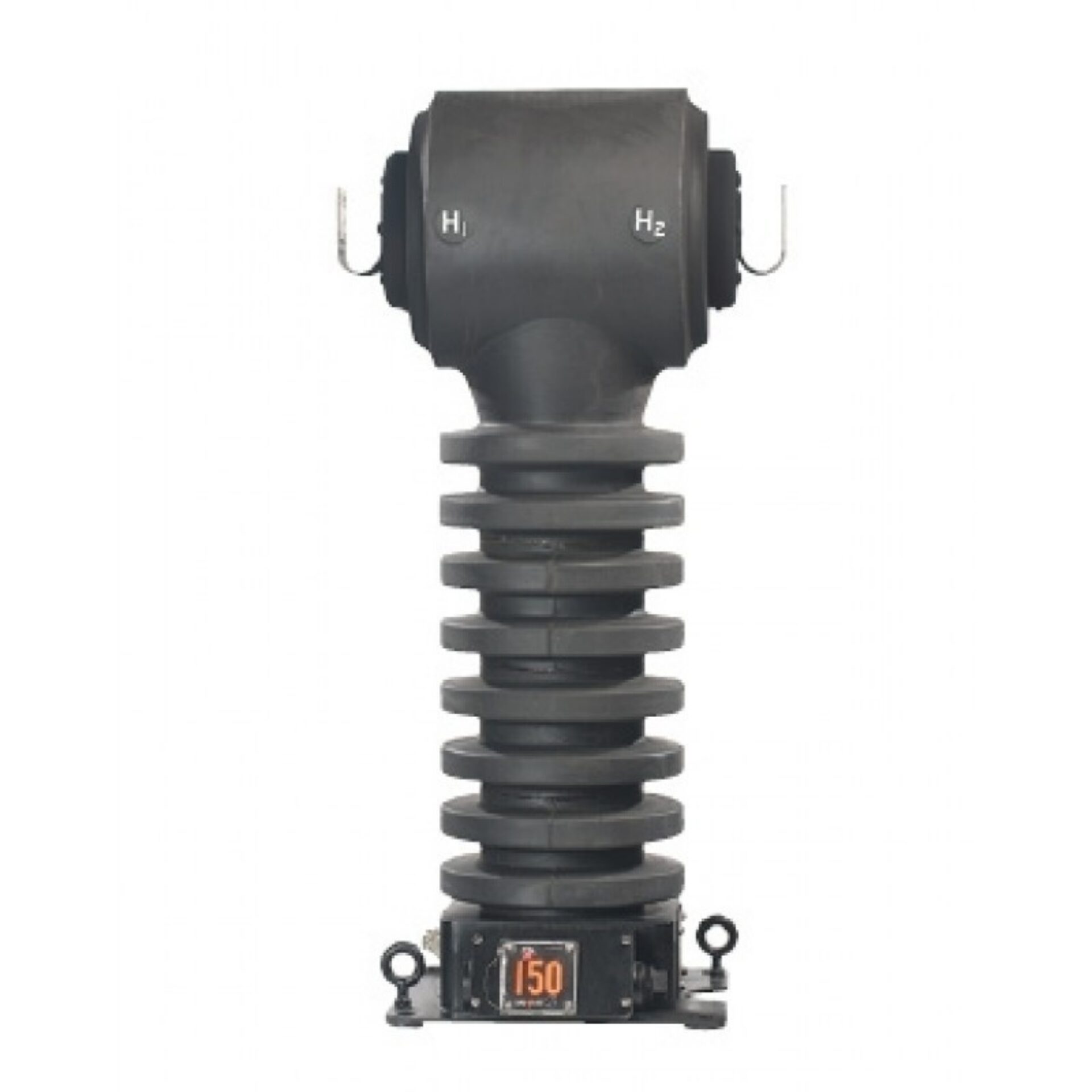

JKW-150 Outdoor Current Transformer - 25KV Class
Introducing the JKW-150 Outdoor Current Transformer, a high-quality solution, manufactured by Spectrum Industries. Designed to meet the demanding requirements of modern electrical systems, this current transformer offers reliable performance and durability in outdoor environments. With a 25kV class rating, it is well-suited for a variety of applications, including utility substations, industrial facilities, and other infrastructure projects where accurate current measurement is essential.
Overview
Introducing the JKW-150 Outdoor Current Transformer, a high-quality solution, manufactured by Spectrum Industries. Designed to meet the demanding requirements of modern electrical systems, this current transformer offers reliable performance and durability in outdoor environments. With a 25kV class rating, it is well-suited for a variety of applications, including utility substations, industrial facilities, and other infrastructure projects where accurate current measurement is essential.
Built with precision and robustness in mind, the JKW-150 features advanced insulation and weather-resistant materials that ensure long-term stability and safety. Its outdoor design allows for seamless installation in harsh conditions, providing dependable operation without the need for frequent maintenance. The transformer’s compact form factor and straightforward mounting options make it an ideal choice for engineers and technicians seeking efficiency and ease of use in complex electrical setups.
and distributed through Spectrum Industries, this current transformer exemplifies the integration of innovative technology with proven manufacturing excellence. Whether upgrading existing systems or designing new installations, the JKW-150 offers a trusted solution that combines accuracy, durability, and safety. By choosing this product, professionals can ensure reliable current measurement and system protection, contributing to the overall efficiency and safety of their electrical infrastructure.
Request a Quote for JKW-150 Outdoor Current Transformer - 25KV Class
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 150 kV
- Weight
- 323 lbs
- Mounting
- Outdoor
- Application
- Metering, Protection
- Standards
- ANSI/IEEE C57.13
- Creep Distance
- 44.14 in [1121 mm]
- 1-sec Thermal Limit
- 75x normal
- 2-cycle Mechanical Limit (low ratio units)
- 170x rated
- 2-cycle Mechanical Limit (high ratio units)
- 85x rated
- Insulation Material
- HY-BUTE 60 molded butyl rubber
- Shipping Weight
- 378 lbs
- Measurement Canada Approval
- T-0117
- Primary Terminal Design
- U-shaped pad (600:5A and below) or vertical flat copper bar (800:5A and above), 4 mounting holes, industry standard spacing
- Secondary Terminal Enclosure
- Box with four 1/4-20 screws, 1.5 in threaded conduit openings each end, 1.5 in bottom knockout, relocatable to any of 3 base sides
- Baseplate and Mounting
- Fabricated metal base, four 13/16 in mounting holes, two lifting eye-bolts, standard two-bolt ground connector
Specification Table
| Secondary A | Ratio (display) | ANSI Metering Class |
|---|---|---|
| 5 | 25/50:5 | 0.3B1.8 |
| 5 | 50/100:5 | 0.3B1.8 |
| 5 | 75/150:5 | 0.3B1.8 |
| 5 | 100/200:5 | 0.3B1.8 |
| 5 | 150/300:5 | 0.3B1.8 |
| 5 | 200/400:5 | 0.3B1.8 |
| 5 | 300/600:5 | 0.3B1.8 |
| 5 | 400/800:5 | 0.3B1.8 |
| 5 | 500/1000:5 | 0.3B1.8 |
| 5 | 600/1200:5 | 0.3B1.8 |
| 5 | 800/1600:5 | 0.3B1.8 |
| 5 | 1000/2000:5 | 0.3B1.8 |
| 5 | 1500/3000:5 | 0.3B1.8 |
