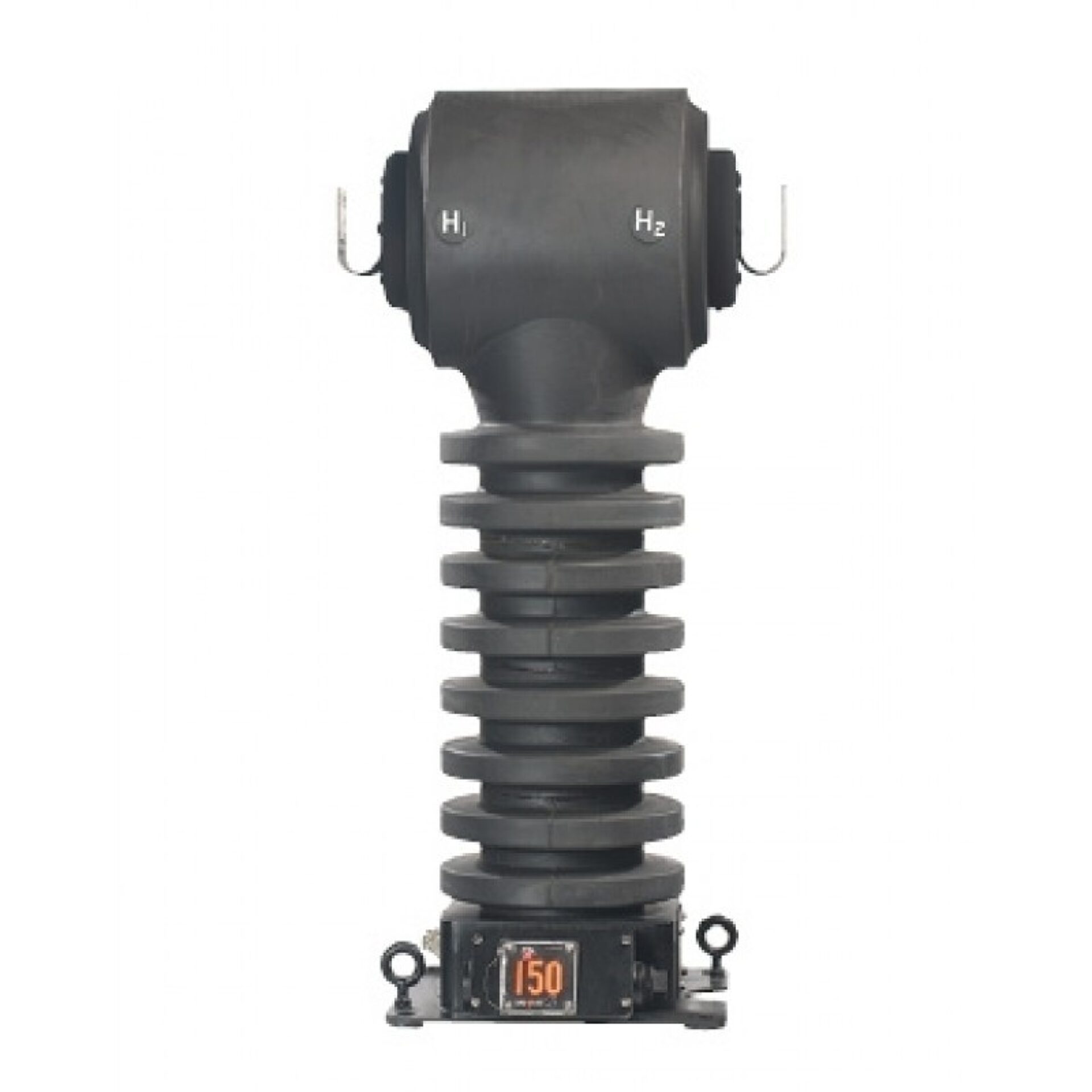

JKW-200 Outdoor Current Transformer - 36KV Class
Introducing the JKW-200 Outdoor Current Transformer, a high-quality solution designed to meet the demanding requirements of modern electrical systems., a globally recognized leader in electrical equipment and technology, this current transformer exemplifies durability, precision, and reliability. Engineered specifically for outdoor applications, the JKW-200 is built to withstand harsh environmental conditions while providing accurate current measurement essential for effective power system management.
Overview
Introducing the JKW-200 Outdoor Current Transformer, a high-quality solution designed to meet the demanding requirements of modern electrical systems., a globally recognized leader in electrical equipment and technology, this current transformer exemplifies durability, precision, and reliability. Engineered specifically for outdoor applications, the JKW-200 is built to withstand harsh environmental conditions while providing accurate current measurement essential for effective power system management.
Produced by Spectrum Industries, a trusted name in electrical instrumentation, this 36kV class current transformer offers exceptional performance in high-voltage environments. Its robust construction ensures long-term durability, making it suitable for a wide range of utility, industrial, and commercial applications. The JKW-200’s design emphasizes safety and ease of installation, with features that facilitate seamless integration into existing electrical infrastructure.
With its advanced engineering, the JKW-200 outdoor current transformer delivers precise readings that are crucial for monitoring, protection, and control of electrical systems. Whether you're overseeing a large power distribution network or managing critical industrial operations, this product provides the reliability and accuracy you need to ensure optimal system performance. Backed by ’s reputation for quality and Spectrum Industries’ commitment to excellence, the JKW-200 is a dependable choice for professionals seeking a durable and high-performance current transformer.
Request a Quote for JKW-200 Outdoor Current Transformer - 36KV Class
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 200 kV
- Weight
- 403 lbs
- Mounting
- Outdoor
- Application
- Metering, Protection
- Standards
- ANSI/IEEE C57.13
- Creep Distance
- 56.61 in [1438 mm]
- 1 sec Thermal Limit
- 75x normal
- 2 cycle Mechanical Limit (low ratio)
- 170x rated
- 2 cycle Mechanical Limit (high ratio)
- 85x rated
- Insulation Material
- Butyl rubber (HY-BUTE 60)
- Rated Voltage Class
- 34.5 kV, 60 Hz, 200 kV BIL
- Measurement Canada Approval
- T-0117
- Shipping Weight
- 438 lbs
- Relay Accuracy Class (IEEE)
- T200/T400 (T400/T800 for 1,500/3,000:5 ratio)
- Thermal Rating Factor
- 2.0/1.5 (1.5/1.33 for 1,500/3,000:5 ratio)
Specification Table
| Secondary A | Ratio (display) | ANSI Metering Class |
|---|---|---|
| 5 | 25/50:5 | 0.3B1.8 |
| 5 | 50/100:5 | 0.3B1.8 |
| 5 | 75/150:5 | 0.3B1.8 |
| 5 | 100/200:5 | 0.3B1.8 |
| 5 | 150/300:5 | 0.3B1.8 |
| 5 | 200/400:5 | 0.3B1.8 |
| 5 | 300/600:5 | 0.3B1.8 |
| 5 | 400/800:5 | 0.3B1.8 |
| 5 | 500/1000:5 | 0.3B1.8 |
| 5 | 600/1200:5 | 0.3B1.8 |
| 5 | 800/1600:5 | 0.3B1.8 |
| 5 | 1000/2000:5 | 0.3B1.8 |
| 5 | 1500/3000:5 | 0.3B1.8 |
