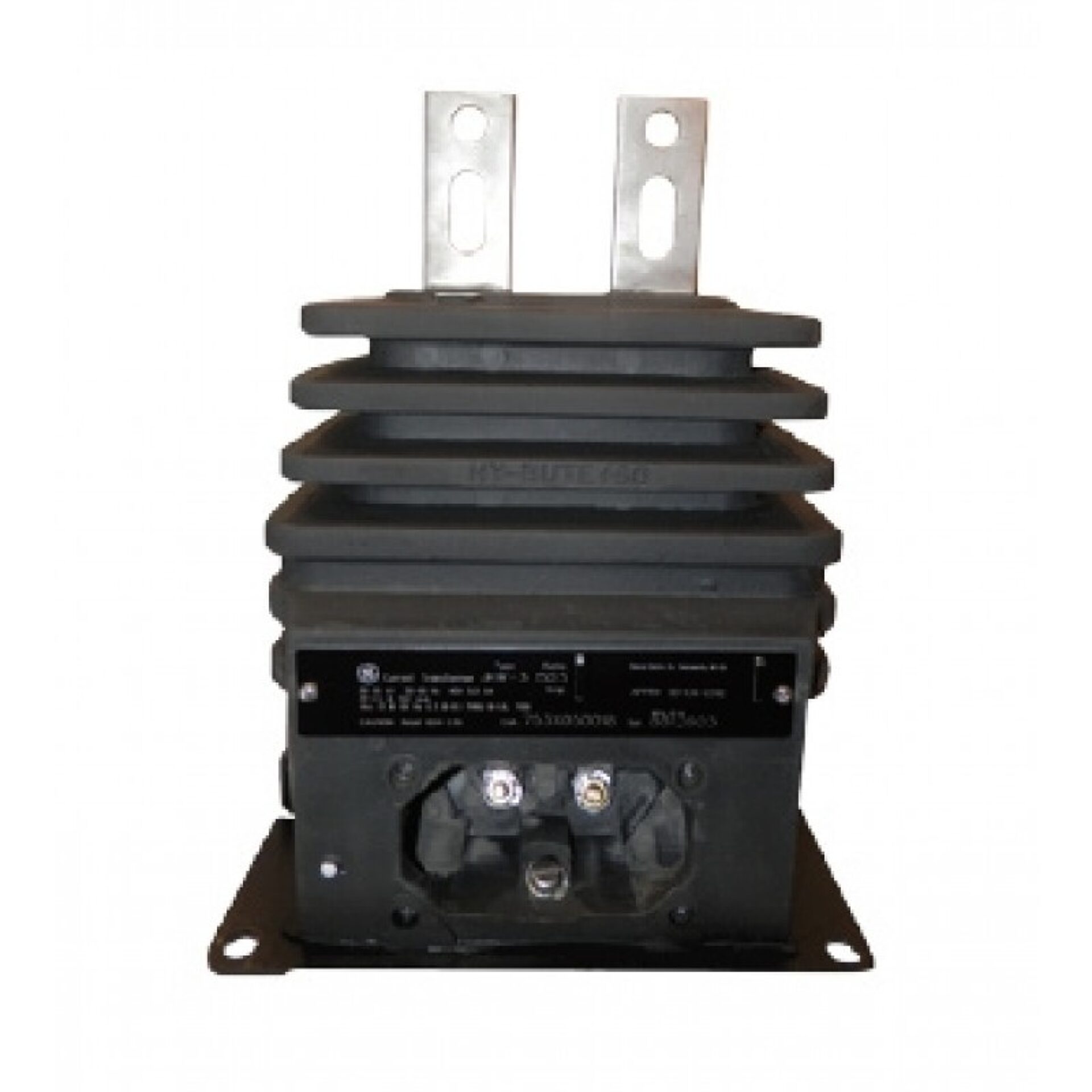

JKW-3A Outdoor Current Transformer High Accuracy - 5KV Class
APPLICATIONS
Designed for outdoor service; suitable for operating meters, relays, and control devices. Features 0.15 accuracy from 5% of nameplate amps through rating factor within burden capability. Available in a variety of ratio as outlined in the unit selection table below, with additional designs available upon request. Rated Station Class with higher burden and extra creep distance.
FEATURES
- Weight: 40lbs (unit), 48lbs (shipping)
- Dimensions: 12.94” (h) x 9.38” (w) x 7.88” (d)
- Creep Distance: 12.5” [317.5mm]
- Strike Distance: 7” [177.8mm]
- Insulation: HY-BUTE 60™ Butyl Rubber
- Insulation Class: 60kV BIL, Outdoor
- Design Standard: IEEE C57.13
Would you like to customize this product? Contact us today to see if
we can create the custom option that fits your needs.
