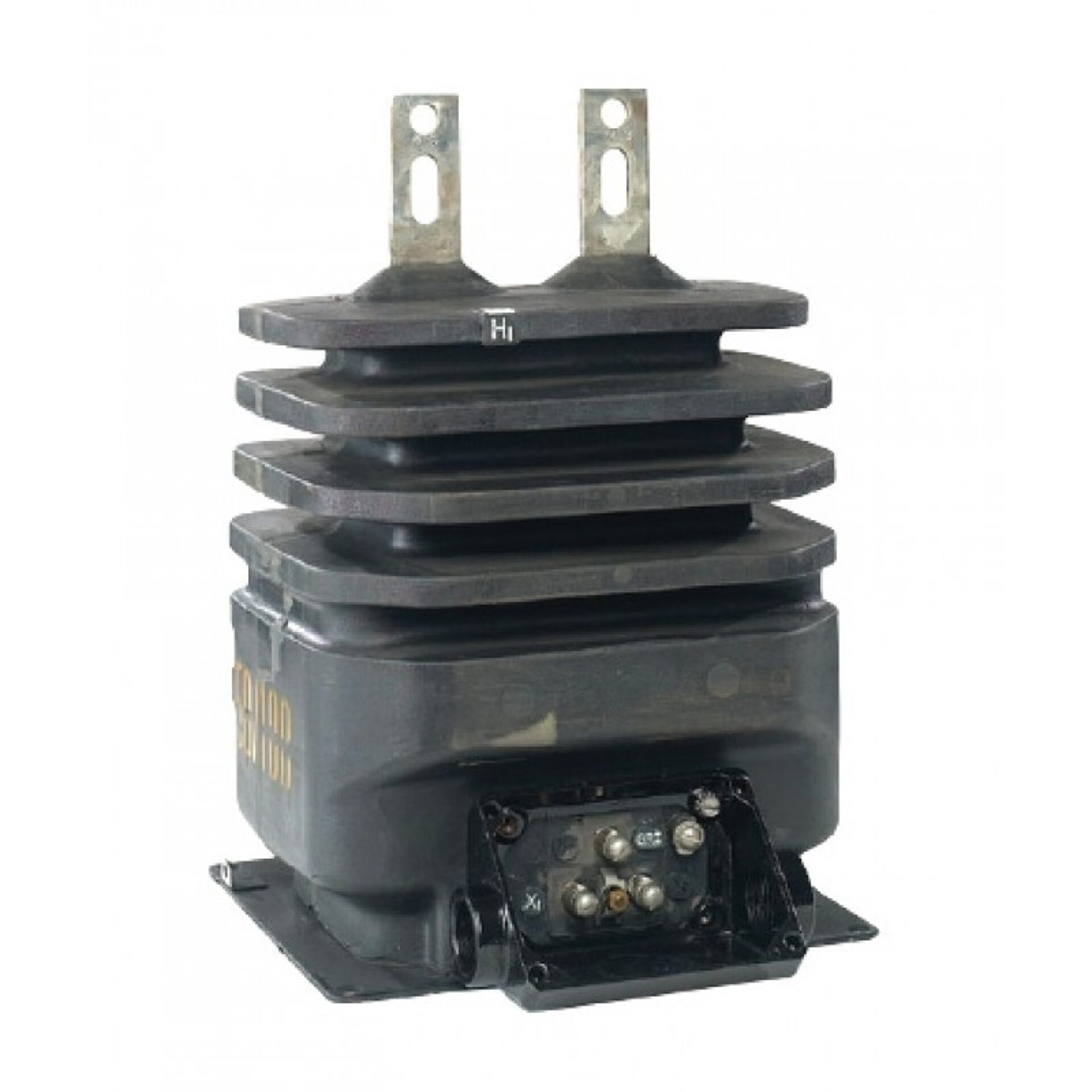

JKW-6 Outdoor Current Transformer - 25KV Class
Introducing the JKW-6 Outdoor Current Transformer, a high-quality solution designed to meet the demanding needs of electrical utilities and industrial applications. and distributed by Spectrum Industries, this current transformer is engineered to deliver reliable performance in outdoor environments where durability and precision are paramount. With a voltage class of 25 kV, the JKW-6 is suitable for a wide range of power measurement and protection applications, ensuring accurate current measurement and system protection.
Overview
Introducing the JKW-6 Outdoor Current Transformer, a high-quality solution designed to meet the demanding needs of electrical utilities and industrial applications. and distributed by Spectrum Industries, this current transformer is engineered to deliver reliable performance in outdoor environments where durability and precision are paramount. With a voltage class of 25 kV, the JKW-6 is suitable for a wide range of power measurement and protection applications, ensuring accurate current measurement and system protection.
Built with robust materials and designed for outdoor use, the JKW-6 withstands harsh weather conditions, including rain, snow, and temperature fluctuations. Its rugged construction ensures long-term stability and minimal maintenance, making it an ideal choice for utility substations, distribution networks, and industrial facilities. The transformer features a compact design that facilitates easy installation and integration into existing systems, providing both convenience and efficiency for technicians and engineers.
As a product, a leader in electrical engineering and power systems, the JKW-6 embodies cutting-edge technology and rigorous quality standards. Spectrum Industries’ distribution ensures that this reliable current transformer is readily available to meet your project needs. Whether for new installations or upgrades, the JKW-6 Outdoor Current Transformer offers the durability, accuracy, and performance necessary for modern electrical infrastructure.
Request a Quote for JKW-6 Outdoor Current Transformer - 25KV Class
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 150 kV
- Weight
- 75 lbs
- Mounting
- Outdoor
- Application
- Metering, Protection, Distribution
- Standards
- ANSI/IEEE C57.13
- Creep Distance
- 24 in (609.6 mm)
- Strike Distance
- 12.51 in (318 mm)
- Insulation Material
- HY-BUTE 60 Butyl Rubber
- Dimensions
- 15.94 in (h) x 10.88 in (w) x 12.38 in (d)
- Shipping Weight
- 85 lbs
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C |
|---|---|---|---|---|
| 5 | 5 | 5:5 | 0.3B0.9 | 3 |
| 10 | 5 | 10:5 | 0.3B0.9 | 3 |
| 15 | 5 | 15:5 | 0.3B0.9 | 3 |
| 20 | 5 | 20:5 | 0.3B0.9 | 3 |
| 25 | 5 | 25:5 | 0.3B0.9 | 3 |
| 50 | 5 | 50:5 | 0.3B0.9 | 3 |
| 75 | 5 | 75:5 | 0.3B0.9 | 3 |
| 100 | 5 | 100:5 | 0.3B0.9 | 3 |
| 150 | 5 | 150:5 | 0.3B0.9 | 3 |
| 200 | 5 | 200:5 | 0.3B0.9 | 3 |
| 300 | 5 | 300:5 | 0.3B0.9 | 2.8 |
| 400 | 5 | 400:5 | 0.3B0.9 | 2.5 |
| 600 | 5 | 600:5 | 0.3B0.9 | 2 |
| 800 | 5 | 800:5 | 0.3B0.9 | 1.5 |
| 10 | 5 | 10:5 | 0.3B1.8 | 1.5 |
| 15 | 5 | 15:5 | 0.3B1.8 | 1.5 |
| 20 | 5 | 20:5 | 0.3B1.8 | 1.5 |
| 25 | 5 | 25:5 | 0.3B1.8 | 1.5 |
| 50 | 5 | 50:5 | 0.3B1.8 | 1.5 |
| 75 | 5 | 75:5 | 0.3B1.8 | 1.5 |
| 100 | 5 | 100:5 | 0.3B1.8 | 1.5 |
| 150 | 5 | 150:5 | 0.3B1.8 | 1.5 |
| 200 | 5 | 200:5 | 0.3B1.8 | 1.5 |
| 300 | 5 | 300:5 | 0.3B1.8 | 1.5 |
| 400 | 5 | 400:5 | 0.3B1.8 | 1.5 |
| 600 | 5 | 600:5 | 0.3B1.8 | 1.5 |
| 800 | 5 | 800:5 | 0.3B1.8 | 1.25 |
| 1200 | 5 | 1,200:5 | 0.3B1.8 | 1 |
| — | 5 | 10/20:5 | 0.3B1.8 | — |
| — | 5 | 25/50:5 | 0.3B1.8 | — |
| — | 5 | 50/100:5 | 0.3B1.8 | — |
| — | 5 | 75/150:5 | 0.3B1.8 | — |
| — | 5 | 100/200:5 | 0.3B1.8 | — |
| — | 5 | 150/300:5 | 0.3B1.8 | — |
| — | 5 | 200/400:5 | 0.3B1.8 | — |
| — | 5 | 300/600:5 | 0.3B1.8 | — |
| — | 5 | 400/800:5 | 0.3B1.8 | — |
| — | 5 | 600/1,200:5 | 0.3B1.8 | — |
