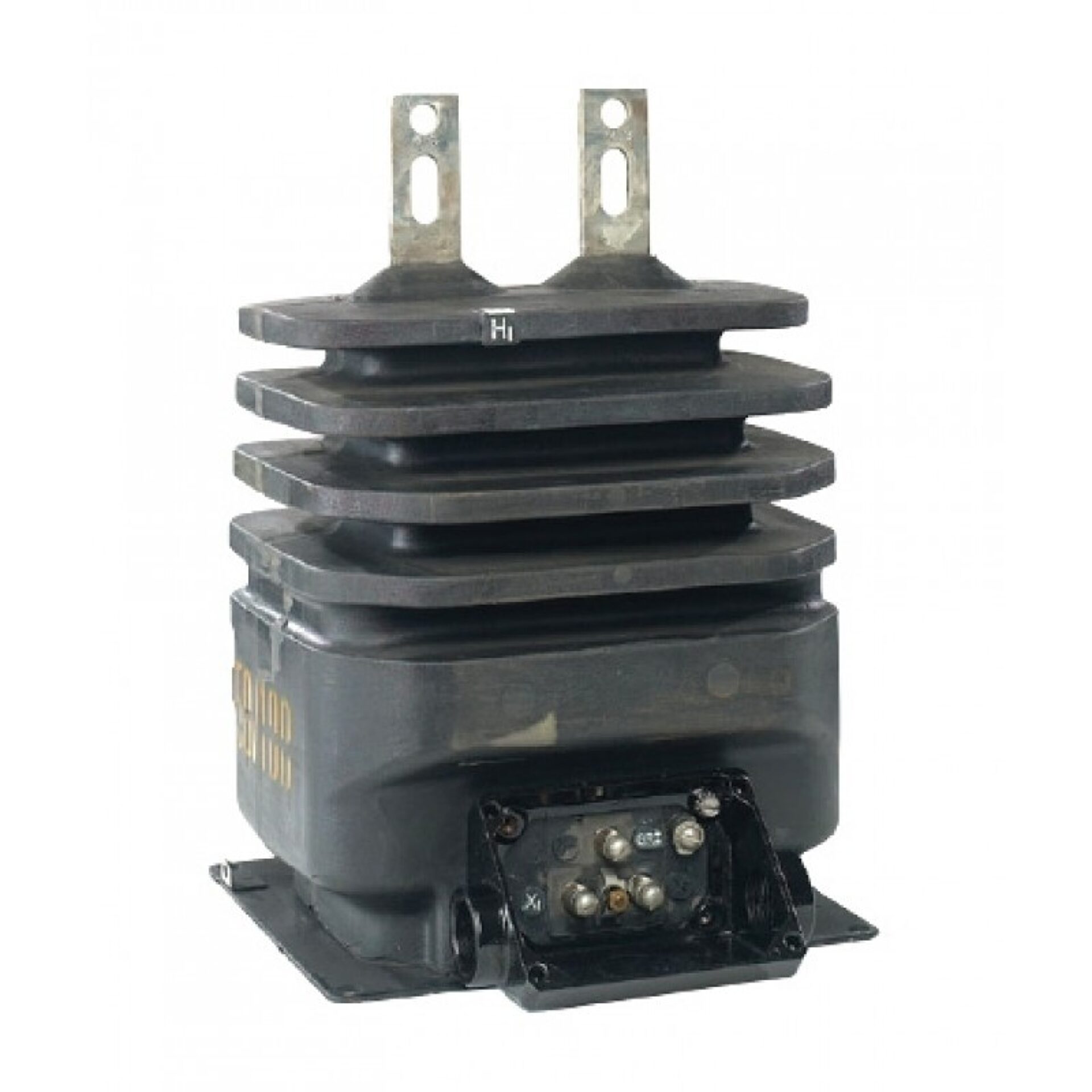

JKW-6A Outdoor Current Transformer High Accuracy - 25KV Class
Introducing the JKW-6A Outdoor Current Transformer, a high-precision solution designed to meet the demanding needs of modern electrical systems. and brought to you by Spectrum Industries, this current transformer offers exceptional accuracy and reliability for a wide range of industrial and utility applications. Engineered to operate efficiently in outdoor environments, the JKW-6A is built with durability and performance in mind, ensuring consistent and precise measurement of electrical currents even under challenging conditions.
Overview
Introducing the JKW-6A Outdoor Current Transformer, a high-precision solution designed to meet the demanding needs of modern electrical systems. and brought to you by Spectrum Industries, this current transformer offers exceptional accuracy and reliability for a wide range of industrial and utility applications. Engineered to operate efficiently in outdoor environments, the JKW-6A is built with durability and performance in mind, ensuring consistent and precise measurement of electrical currents even under challenging conditions.
This 25kV class current transformer is ideal for high-voltage applications where accuracy and safety are paramount. Its robust construction and weather-resistant features make it suitable for outdoor installations, providing reliable service over long periods with minimal maintenance. The JKW-6A's design emphasizes both safety and precision, making it a trusted choice for utilities, substations, and electrical infrastructure projects. With its high accuracy, it ensures that measurement data is precise, facilitating better system monitoring, fault detection, and overall operational efficiency.
a global leader in electrical equipment manufacturing, this current transformer benefits from advanced engineering and quality standards. Spectrum Industries is proud to distribute this top-tier product, ensuring that customers receive a dependable and high-performance component for their electrical systems. Whether for new installations or upgrades, the JKW-6A Outdoor Current Transformer is a reliable and accurate solution that meets the rigorous demands of high-voltage measurement.
Request a Quote for JKW-6A Outdoor Current Transformer High Accuracy - 25KV Class
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 150 kV
- Weight
- 75 lbs
- Mounting
- Outdoor
- Application
- Metering, Protection, Distribution
- Standards
- ANSI/IEEE C57.13
- Insulation Material
- HY-BUTE 60 molded butyl rubber
- Creep Distance
- 24 in (609.6 mm)
- Strike Distance
- 12.51 in (318 mm)
- Dimensions (H x W x D)
- 15.94 in x 10.88 in x 12.38 in
- Shipping Weight
- 85 lbs
- Approval Number
- AE-0817 (Measurement Canada)
- Polarity
- Subtractive
- Nameplate Accuracy Class Detail
- 0.15 E-0.04, 0.15S B-0.1 THRU B-0.5, 0.3 B-1.8, T200
- Nameplate System Voltage
- 25 kV, 60 Hz
- Overall Accuracy — Accuracy
- 0.15
- Overall Accuracy — Condition
- 0.15S accuracy class, 5% of nameplate amps through rating factor
Specification Table
| Primary V | Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C |
|---|---|---|---|---|
| 25000 | 5 | 5 | 5:5 | 1.5 |
| 25000 | 10 | 5 | 10:5 | 1.5 |
| 25000 | 15 | 5 | 15:5 | 1.5 |
| 25000 | 20 | 5 | 20:5 | 1.5 |
| 25000 | 25 | 5 | 25:5 | 1.5 |
| 25000 | 50 | 5 | 50:5 | 1.5 |
| 25000 | 75 | 5 | 75:5 | 1.5 |
| 25000 | 100 | 5 | 100:5 | 1.5 |
| 25000 | 150 | 5 | 150:5 | 1.5 |
| 25000 | 200 | 5 | 200:5 | 1.5 |
| 25000 | 300 | 5 | 300:5 | 1.5 |
| 25000 | 400 | 5 | 400:5 | 1.5 |
| 25000 | 600 | 5 | 600:5 | 1.5 |
| 25000 | 800 | 5 | 800:5 | 1 |
| 25000 | 1200 | 5 | 1200:5 | 1 |
