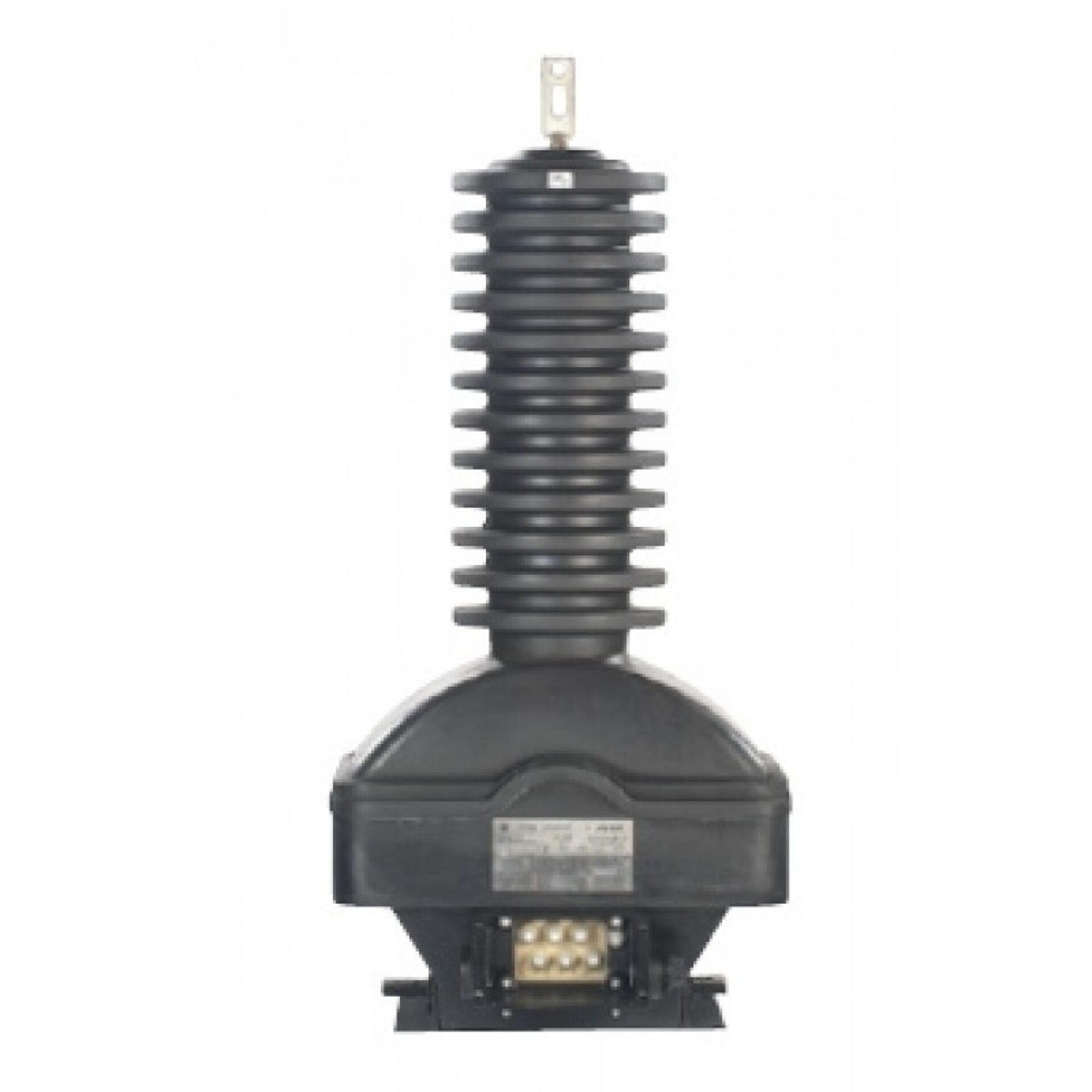

JVS-350 Outdoor Voltage Transformer - 69kV Class
Introducing the JVS-350 Outdoor Voltage Transformer, a reliable and high-performance solution and produced by Spectrum Industries. Designed to meet the demanding needs of modern electrical systems, this transformer offers exceptional accuracy and durability, making it an ideal choice for utility companies and industrial applications requiring precise voltage measurement and regulation.
Overview
Introducing the JVS-350 Outdoor Voltage Transformer, a reliable and high-performance solution and produced by Spectrum Industries. Designed to meet the demanding needs of modern electrical systems, this transformer offers exceptional accuracy and durability, making it an ideal choice for utility companies and industrial applications requiring precise voltage measurement and regulation.
The JVS-350 is built to withstand harsh outdoor environments, featuring robust construction and weather-resistant components that ensure long-term operational stability. Its 69kV class rating signifies its capability to handle high-voltage applications safely and efficiently, providing users with peace of mind during installation and operation. This transformer is engineered to deliver consistent performance, minimizing downtime and maintenance costs while enhancing the overall reliability of electrical distribution networks.
Spectrum Industries, known for its commitment to quality and innovation, has partnered with to produce this advanced voltage transformer. The collaboration combines ’s extensive expertise in electrical engineering with Spectrum Industries’ dedication to manufacturing excellence. Whether used in new installations or as part of an upgrade to existing infrastructure, the JVS-350 outdoor voltage transformer is designed to meet the highest standards of safety, accuracy, and durability.
In summary, the JVS-350 from Spectrum Industries, represents a cutting-edge solution for high-voltage measurement needs, ensuring efficient and safe operation in demanding outdoor environments.
Request a Quote for JVS-350 Outdoor Voltage Transformer - 69kV Class
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 350 kV
- Weight
- 430 lbs
- Mounting
- Outdoor
- Application
- Metering, Protection
- Standards
- ANSI/IEEE C57.13
- Insulation Material
- HY-BUTE 60 Butyl Rubber
- Primary Winding Style
- Lattice-Type
- Creep Distance
- 64 in (1626 mm)
- Accuracy Class & Burden
- 0.3ZZ, all models
- Thermal Burden Rating
- 5,000 VA @ 30C ambient
- Secondary/Tertiary Terminal Voltages
- X1-X3=115V, X2-X3=67.08V, Y1-Y3=115V, Y2-Y3=67.08V
- Secondary Terminal Style
- Screw-type, 1/4-20 UNC, in conduit box with 1.5in threaded conduit openings
- Ground Terminal
- Clamp-type, for No. 2 solid to 500 MCM copper or aluminum grounding cable
- Approval
- Measurement Canada Approval T-0118
- Bushing Configuration
- Single-bushing, inductive design
- Max Overload — Multiplier
- 1.73
- Max Overload — Duration
- 60
- Max Overload — Condition
- Capable of operating at 173% of rated voltage for one minute without exceeding 175C temperature rise
Specification Table
| Primary V | Secondary V | Ratio (display) |
|---|---|---|
| 40250 | 115 | 350:1 & 600:1 |
