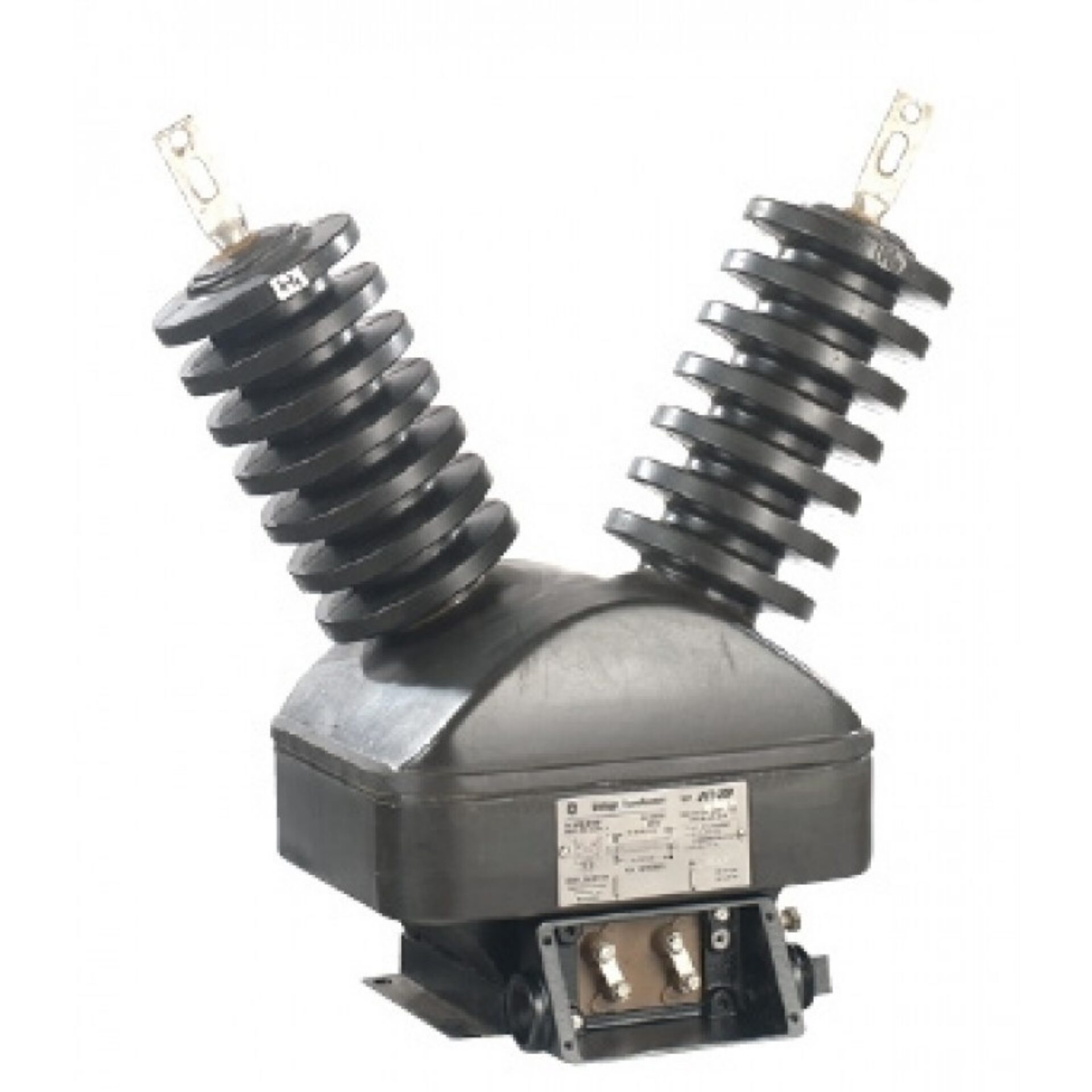

JVT-150 Outdoor Voltage Transformer - 25kV Class
Introducing the JVT-150 Outdoor Voltage Transformer, a reliable and high-performance solution designed to meet the demanding needs of electrical distribution systems. and produced by Spectrum Industries, this transformer is engineered to deliver precise voltage transformation in outdoor environments, ensuring efficient and safe power delivery across various applications. Its robust construction and durable materials make it well-suited for outdoor installations where exposure to the elements is a concern.
Overview
Introducing the JVT-150 Outdoor Voltage Transformer, a reliable and high-performance solution designed to meet the demanding needs of electrical distribution systems. and produced by Spectrum Industries, this transformer is engineered to deliver precise voltage transformation in outdoor environments, ensuring efficient and safe power delivery across various applications. Its robust construction and durable materials make it well-suited for outdoor installations where exposure to the elements is a concern.
The JVT-150 is rated at 25kV class, making it ideal for utility, industrial, and commercial use. It features advanced insulation and protective features to withstand harsh weather conditions, ensuring longevity and consistent performance over time. The transformer’s design emphasizes safety and ease of installation, with features that facilitate maintenance and reduce downtime. Whether used in new installations or as a replacement component, the JVT-150 provides dependable voltage regulation, helping to maintain power quality and system stability.
Produced by Spectrum Industries, a trusted name in electrical equipment manufacturing, this transformer benefits ’s innovative engineering and quality standards. Its combination of durability, safety, and performance makes the JVT-150 a smart choice for professionals seeking a reliable outdoor voltage transformer. With its proven track record and high-quality construction, this product is designed to support a wide range of electrical distribution needs, ensuring efficient energy transfer and operational reliability.
Request a Quote for JVT-150 Outdoor Voltage Transformer - 25kV Class
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 150 kV
- Weight
- 225 lbs
- Mounting
- Outdoor
- Application
- Metering, Protection
- Standards
- ANSI/IEEE C57.13
- Insulation Material
- Butyl rubber (HY-BUTE 60)
- Primary Winding Style
- Lattice-type
- Creep Distance
- 27 in (685.8 mm)
- Shipping Weight
- 265 lbs
- ANSI Rating Class
- Station Class
- Bushing Configuration
- Two-bushing
- Reduced Voltage Operation
- Line-to-ground or line-to-neutral at 58% of rated voltage
- Overall Accuracy — Accuracy
- 0.3
- Overall Accuracy — Condition
- ZZ burden, all models
- Max Overload — Multiplier
- 1.73
- Max Overload — Duration
- 60
- Max Overload — Condition
- One minute at 173% of rated voltage without exceeding 175C temperature rise
Specification Table
| Primary V | Secondary V | Ratio (display) | Thermal Rating Factor @ 30°C |
|---|---|---|---|
| 24000 | 120 | 200 & 200:1 | 3000 |
| 13 | 115.47 | 120/200 & 120/200:1 | 3000 |
