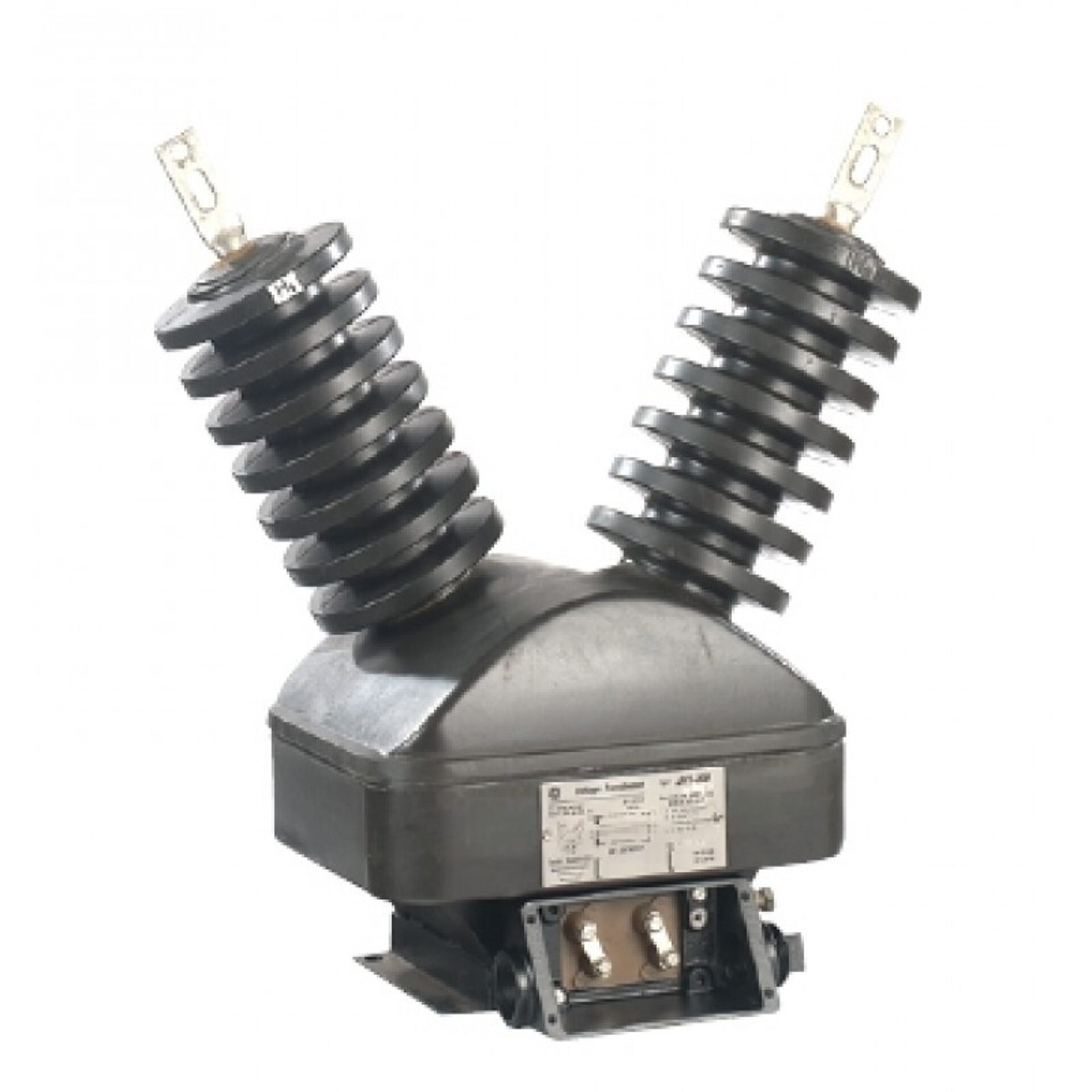

JVT-200 Outdoor Voltage Transformer - 36kV Class
Introducing the JVT-200 Outdoor Voltage Transformer, a high-quality solution engineered to meet the demanding needs of modern electrical distribution systems. and distributed by Spectrum Industries, this transformer is designed to provide reliable and precise voltage measurement in outdoor environments, ensuring the safety and efficiency of your electrical infrastructure. Built with durability in mind, the JVT-200 features robust construction and weather-resistant components that enable it to withstand harsh outdoor conditions, making it ideal for utility, industrial, and commercial applications.
Overview
Introducing the JVT-200 Outdoor Voltage Transformer, a high-quality solution engineered to meet the demanding needs of modern electrical distribution systems. and distributed by Spectrum Industries, this transformer is designed to provide reliable and precise voltage measurement in outdoor environments, ensuring the safety and efficiency of your electrical infrastructure. Built with durability in mind, the JVT-200 features robust construction and weather-resistant components that enable it to withstand harsh outdoor conditions, making it ideal for utility, industrial, and commercial applications.
The JVT-200 is rated for a 36kV class, offering excellent performance in high-voltage settings. Its advanced design ensures accurate voltage transformation and measurement, which is crucial for maintaining system stability and diagnosing potential issues before they escalate. Spectrum Industries’ commitment to quality and innovation is reflected in the meticulous manufacturing process of this transformer, adhering to rigorous standards set by. This product not only guarantees dependable operation but also facilitates easy installation and maintenance, saving valuable time and resources.
Whether you're upgrading existing infrastructure or deploying new systems, the JVT-200 Outdoor Voltage Transformer and Spectrum Industries provides a reliable, durable, and precise solution. It exemplifies the blend of advanced technology and robust engineering, making it an essential component for ensuring the safety and efficiency of your electrical distribution network.
Request a Quote for JVT-200 Outdoor Voltage Transformer - 36kV Class
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 200 kV
- Weight
- 235 lbs
- Mounting
- Outdoor
- Application
- Metering, Protection
- Standards
- ANSI/IEEE C57.13
- Construction
- Two-bushing inductive voltage transformer, station class
- Insulation
- HY-BUTE 60 butyl rubber
- Primary Winding Style
- Lattice-type
- Accuracy Class & Burden
- 0.3ZZ, all models
- Creep Distance
- 36.1 in [916.94 mm]
- Shipping / Net Weight
- 275 / 235 lbs
- Rated Voltage
- 34,500 V, 60 Hz
- Connection
- Line-to-line; may be operated line-to-ground or line-to-neutral at 58% of rated voltage
- Overvoltage Capability
- 173% of rated voltage for one minute
- Thermal Rating
- Both secondary windings in parallel; 1,500 VA per winding used separately, 2,000 VA if only one is used
- Revenue Metering Approval
- Measurement Canada T-0118
Specification Table
| Primary V | Secondary V | Ratio (display) | Thermal Rating Factor @ 30°C |
|---|---|---|---|
| 34500 | 115 | 300 & 300:1 | 3000 |
| 27600 | 115 | 240 & 240:1 | 3000 |
| 20125 | 115 | 175 & 175:1 | 3000 |
| 34500 | 197 | 175/300 & 300/520:1 | 2000 |
| 20125 | 115 | 175/300 & 175/300:1 | 3000 |
