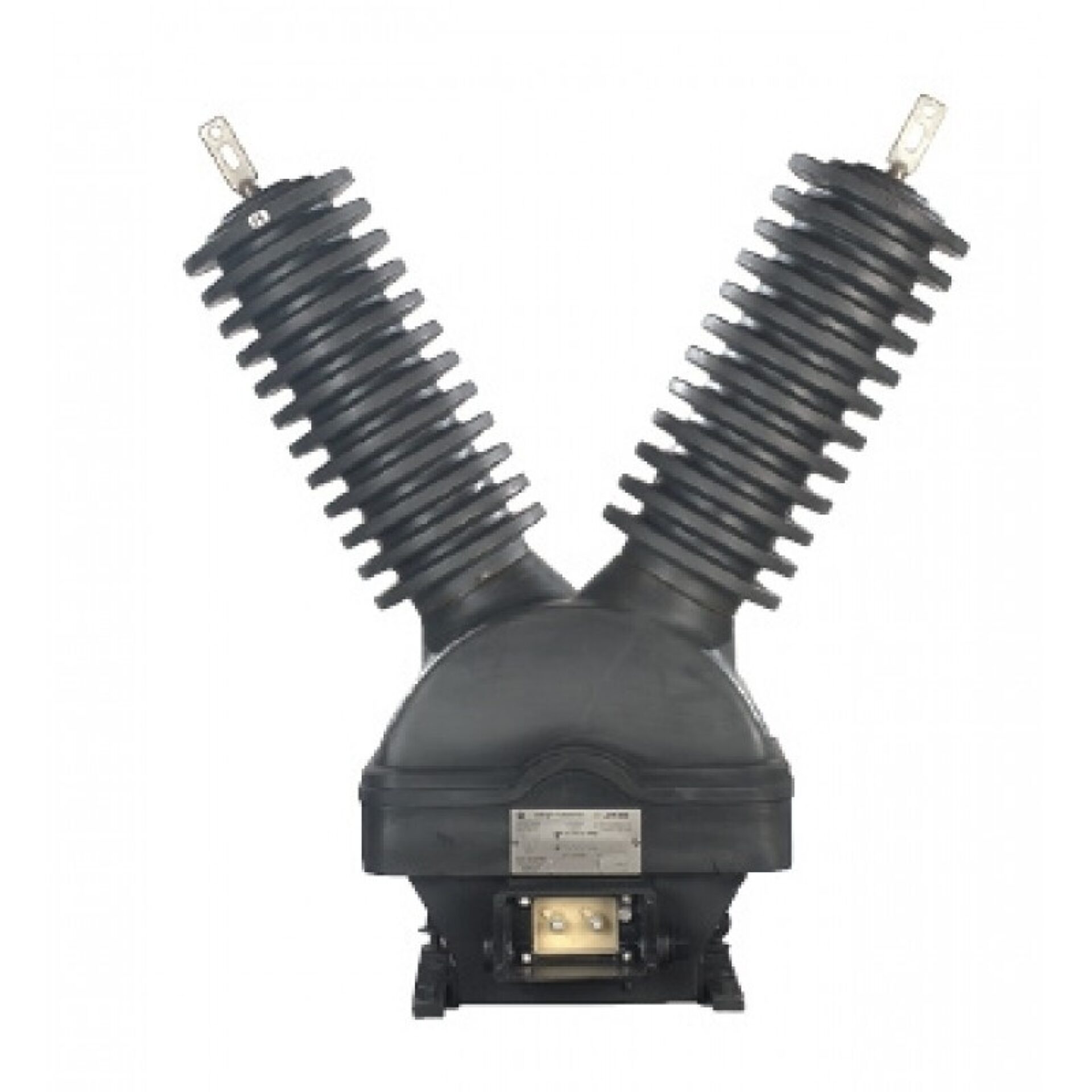

JVT-350 Outdoor Voltage Transformer - 69kV Class
Introducing the JVT-350 Outdoor Voltage Transformer, a premium solution designed to meet the demanding needs of modern electrical infrastructure. and produced by Spectrum Industries, this transformer exemplifies reliability, durability, and precision in voltage measurement and regulation. Engineered specifically for outdoor environments, the JVT-350 is built to withstand harsh weather conditions, ensuring consistent performance over its long service life.
Overview
Introducing the JVT-350 Outdoor Voltage Transformer, a premium solution designed to meet the demanding needs of modern electrical infrastructure. and produced by Spectrum Industries, this transformer exemplifies reliability, durability, and precision in voltage measurement and regulation. Engineered specifically for outdoor environments, the JVT-350 is built to withstand harsh weather conditions, ensuring consistent performance over its long service life.
The JVT-350 is rated at 69kV class, making it ideal for high-voltage applications in utility and industrial settings. Its robust construction and advanced design features enable it to operate efficiently while maintaining safety standards. Spectrum Industries has incorporated innovative technology into this product, ensuring accurate voltage transformation and seamless integration into existing electrical systems. Whether used for monitoring, metering, or protection purposes, this transformer provides dependable operation that enhances the overall stability of electrical networks.
a global leader in electrical equipment manufacturing, the JVT-350 benefits from decades of expertise and technological innovation. Spectrum Industries has further refined this product to meet the specific needs of clients requiring high-performance outdoor voltage transformers. With its superior build quality and proven reliability, the JVT-350 is a trusted choice for utilities and industrial facilities seeking a dependable solution for their high-voltage measurement and regulation needs.
Request a Quote for JVT-350 Outdoor Voltage Transformer - 69kV Class
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 350 kV
- Weight
- 560 lbs
- Mounting
- Outdoor
- Application
- Metering, Protection
- Standards
- ANSI/IEEE C57.13
- Insulation Material
- HY-BUTE 60 Butyl Rubber
- Primary Winding Style
- Lattice-Type
- Creep Distance
- 66 in [1676.4 mm]
- Accuracy Class
- 0.3 W, X, M, Y, Z, ZZ
- Bushing Configuration
- Two-bushing, inductive
- Reduced Voltage Operation
- Line-to-line rated; line-to-ground or line-to-neutral operation permitted at 58% of rated voltage
- Overvoltage Capability
- 173% of rated voltage for 1 minute without exceeding 175 C temperature rise
- Secondary Terminal Type
- Screw-type (1/4-20 UNC) binding heads in conduit box
- Ground Terminal
- Clamp-type, for No. 2 solid to 500 MCM copper or aluminum grounding cable
- Regulatory Approval
- Measurement Canada Approval: T-0118
Specification Table
| Primary V | Secondary V | Ratio (display) | Thermal Rating Factor @ 30°C |
|---|---|---|---|
| 69000 | 115 | 600:1 | 4500 |
| — | — | 350/600 & 350/600:1 | 2000 |
| 69000 | — | 600/1039:1 & 350/600:1 | 2000 |
| 69000 | 115 | 600 & 600:1 | 4500 |
