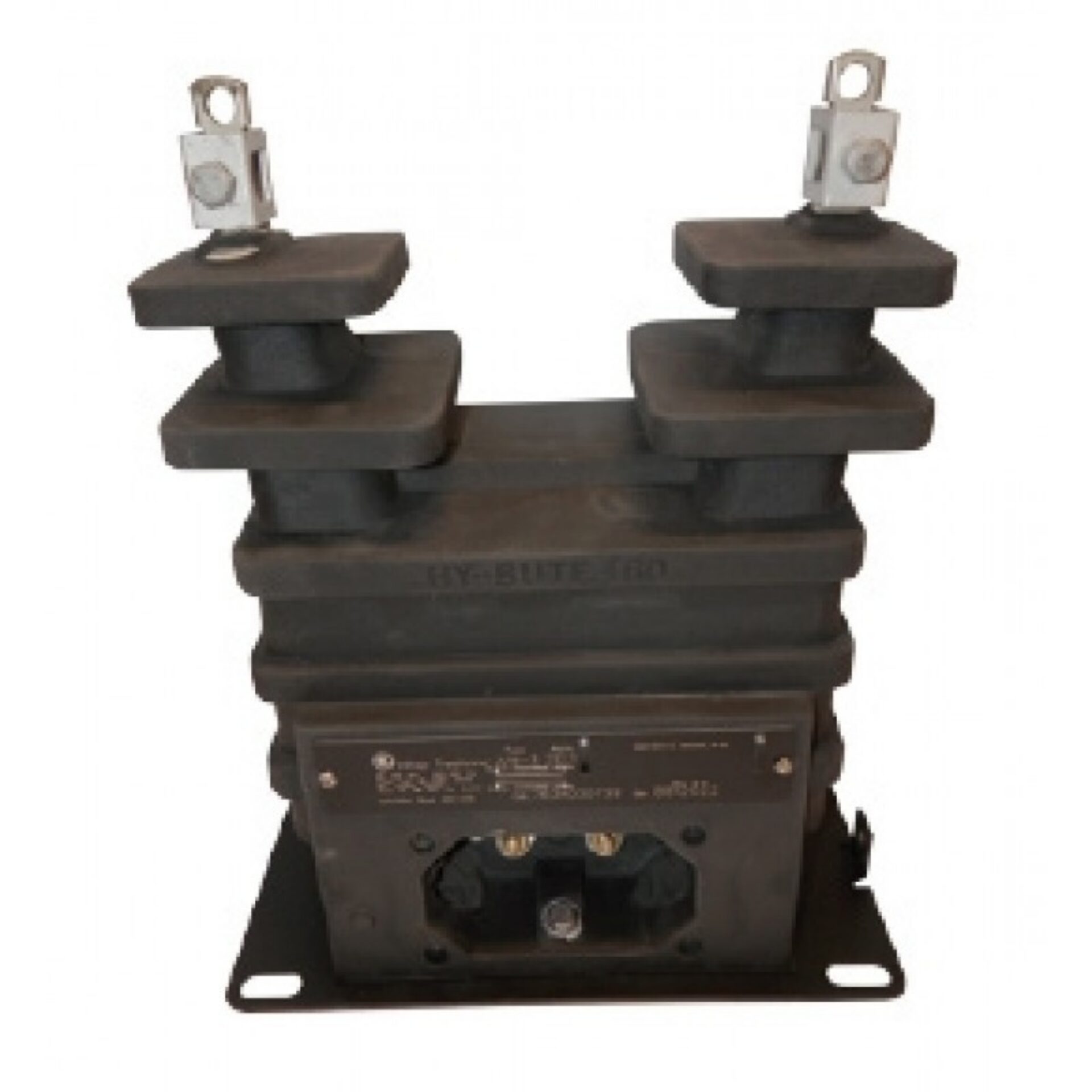

JVW-3 Outdoor Voltage Transformer - 5kV Class
Introducing the JVW-3 Outdoor Voltage Transformer, a reliable and high-performance solution designed to meet the demanding needs of electrical distribution systems., a global leader in power and automation technologies, this transformer exemplifies quality, durability, and precision engineering. Crafted specifically for outdoor applications, the JVW-3 is engineered to provide accurate voltage measurement and regulation in a variety of environments, ensuring consistent performance and safety.
Overview
Introducing the JVW-3 Outdoor Voltage Transformer, a reliable and high-performance solution designed to meet the demanding needs of electrical distribution systems., a global leader in power and automation technologies, this transformer exemplifies quality, durability, and precision engineering. Crafted specifically for outdoor applications, the JVW-3 is engineered to provide accurate voltage measurement and regulation in a variety of environments, ensuring consistent performance and safety.
Produced by Spectrum Industries, a trusted name in electrical instrumentation, this transformer is rated for a 5kV class, making it suitable for medium-voltage distribution networks. Its robust construction ensures resilience against harsh weather conditions, UV exposure, and mechanical stresses, making it ideal for outdoor installations. The JVW-3 features advanced design elements that facilitate easy installation, maintenance, and long-term operation, helping utility providers and industrial facilities optimize their electrical systems with minimal downtime.
With its proven track record of reliability and precision, the -produced JVW-3 Outdoor Voltage Transformer is an excellent choice for utility companies, contractors, and engineers seeking a dependable component for their voltage measurement needs. Combining innovative technology with durable construction, this transformer ensures accurate readings and enhanced system stability, contributing to safer and more efficient power distribution infrastructure.
Request a Quote for JVW-3 Outdoor Voltage Transformer - 5kV Class
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 60 kV
- Weight
- 44 lbs
- Mounting
- Outdoor
- Application
- Metering, Protection, Distribution
- Standards
- ANSI/IEEE C57.13
- Thermal Rating
- 750 VA (55°C rise above 30°C)
- Shipping Weight
- 48 lbs
- Dimensions
- 12.75 in (h) x 10.50 in (w) x 7.56 in (d)
- Creep Distance
- 13.5 in (342.9 mm)
- Strike Distance
- 9 in (228.6 mm)
- Insulation Material
- HY-BUTE 60 Butyl Rubber, Outdoor 60 kV BIL insulation class
- Primary Winding Style
- Wound-Type
- Primary Terminal Max Conductor
- Vertical: 250MCM Cu / 4/0 Al; Horizontal: 3/0 Cu / 2/0 Al; min AWG 10
- Regulatory Approval
- Measurement Canada Approval: SD-EA.0391
Specification Table
| Primary V | Secondary V | Ratio (display) |
|---|---|---|
| 2400 | 120 | 20:1 |
| 4200 | 120 | 35:1 |
| 4800 | 120 | 40:1 |
| 2400 | 120 | 20:1 |
| 4200 | 120 | 35:1 |
| 4800 | 120 | 40:1 |
