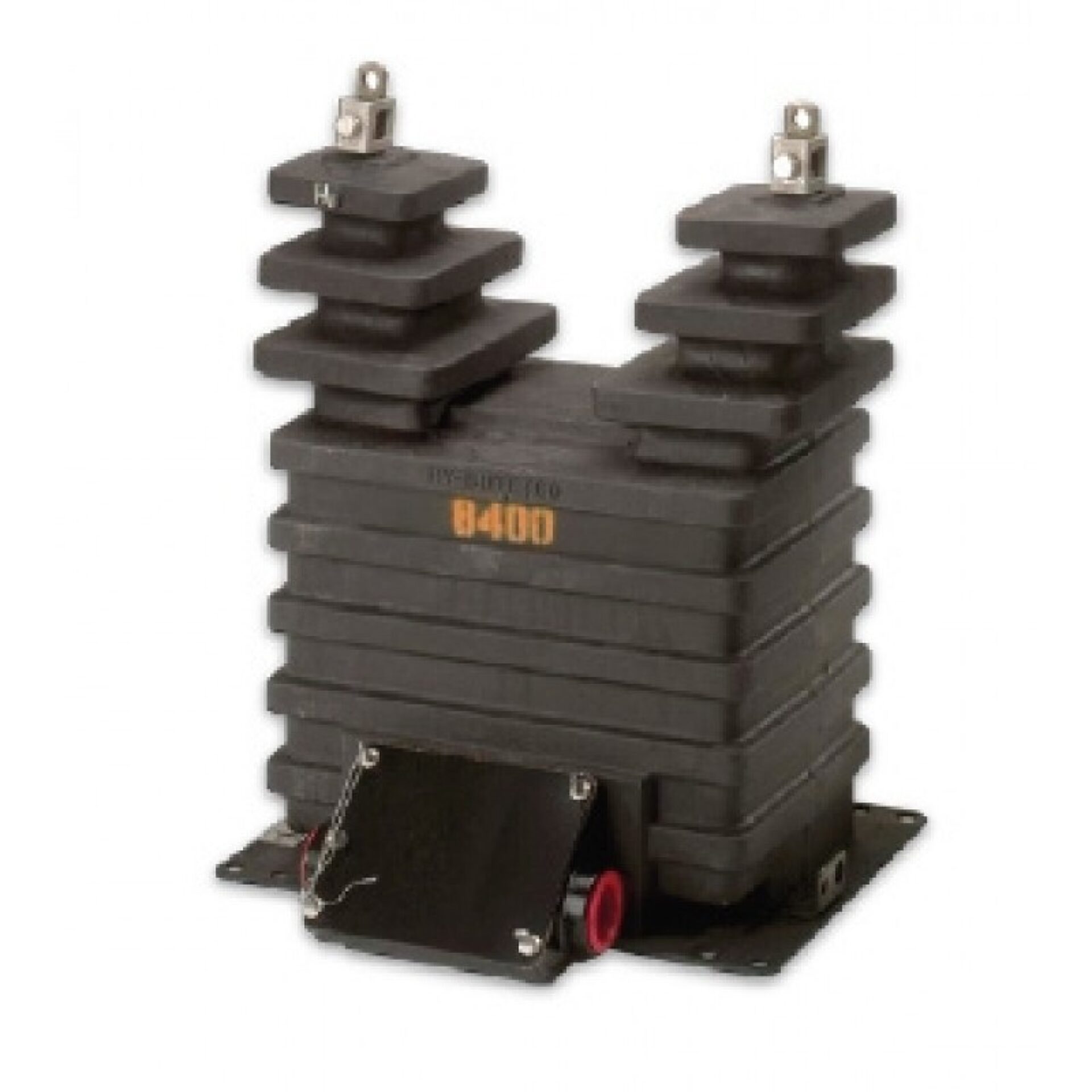

JVW-4 Outdoor Voltage Transformer - 8.7kV Class
Introducing the JVW-4 Outdoor Voltage Transformer, a reliable and high-performance solution, manufactured by Spectrum Industries. Engineered to meet the demanding needs of modern electrical distribution systems, this transformer offers exceptional precision and durability, ensuring consistent voltage regulation and safe operation in outdoor environments.
Overview
Introducing the JVW-4 Outdoor Voltage Transformer, a reliable and high-performance solution, manufactured by Spectrum Industries. Engineered to meet the demanding needs of modern electrical distribution systems, this transformer offers exceptional precision and durability, ensuring consistent voltage regulation and safe operation in outdoor environments.
Built with advanced materials and innovative technology, the JVW-4 voltage transformer is tailored for utility companies and industrial applications that require robust performance under various weather conditions. Its sturdy construction and weather-resistant design make it ideal for outdoor installations, providing long-lasting service even in harsh environments. The transformer’s 87kV class rating signifies its capacity to handle high-voltage loads efficiently, contributing to the stability and reliability of power distribution networks.
Spectrum Industries, renowned for their expertise in manufacturing high-quality electrical equipment, ensures that each JVW-4 transformer adheres to strict quality standards. This product not only meets industry regulations but also delivers superior performance, making it a dependable choice for professionals seeking a durable and precise voltage transformation solution. Whether for new installations or upgrades, the JVW-4 Outdoor Voltage Transformer by offers peace of mind through its proven design, ensuring safe and efficient power management in outdoor settings.
Request a Quote for JVW-4 Outdoor Voltage Transformer - 8.7kV Class
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 75 kV
- Weight
- 105 lbs
- Mounting
- Outdoor
- Application
- Metering, Protection
- Standards
- ANSI/IEEE C57.13
- Thermal Rating
- 1,500 VA (55C rise above 30C)
- Shipping Weight
- 120 lbs
- Dimensions
- 16.88 in (h) x 14.25 in (w) x 13.05 in (d)
- Creep Distance
- 20.38 in [517.7 mm]
- Strike Distance
- 12 in [305 mm]
- Insulation Material
- HY-BUTE 60 molded butyl rubber
- Primary Winding Style
- Lattice-Type
- Measurement Canada Approval
- S-EA-525
Specification Table
| Primary V | Ratio (display) |
|---|---|
| 2400 | 20:1 |
| 2400 | 20:1 |
| 4200 | 35:1 |
| 4800 | 40:1 |
| 7200 | 60:1 |
