JVW-5 Outdoor Voltage Transformer - 15kV Class

JVW-5 Outdoor Voltage Transformer - 15kV Class

APPLICATIONS

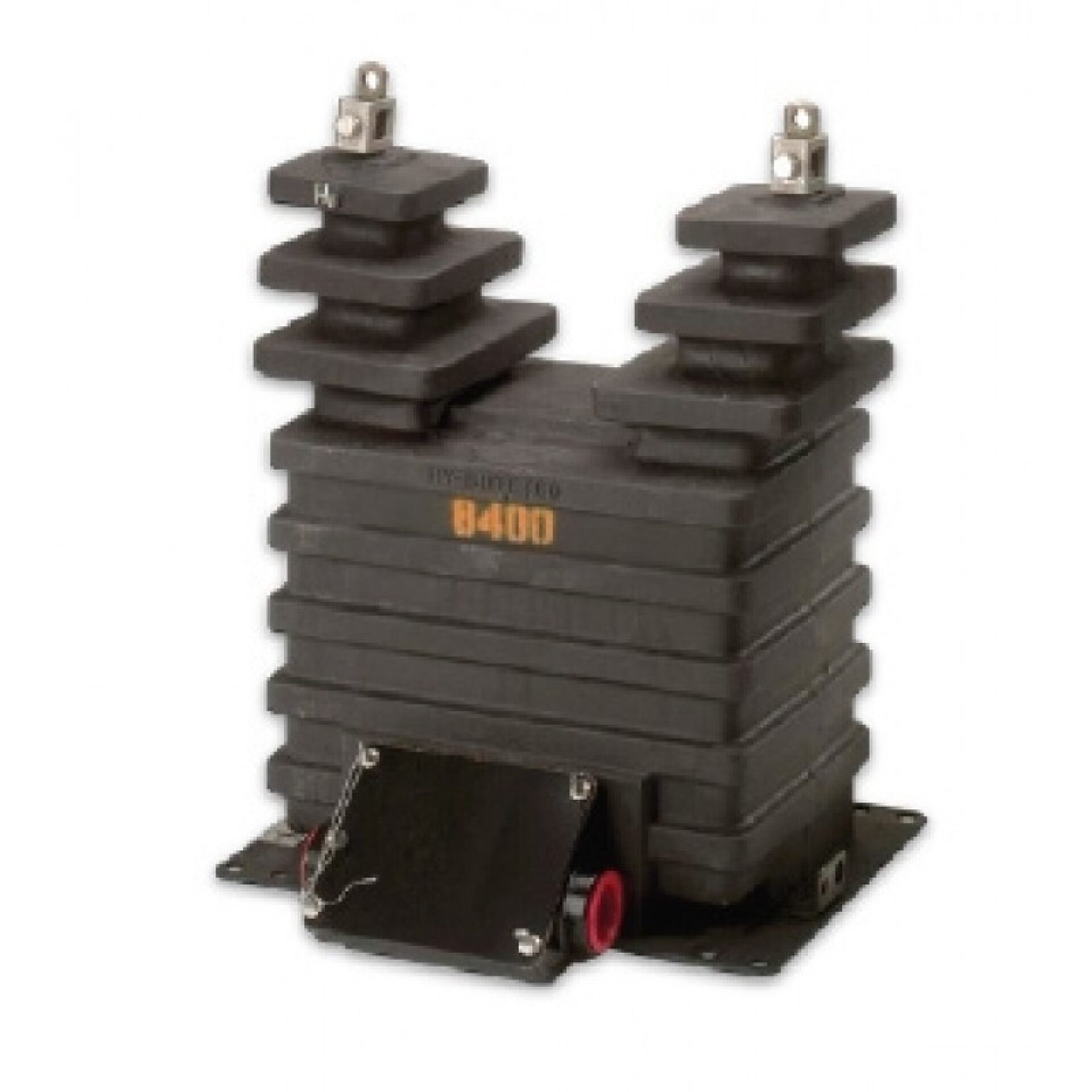

Model JVW-5 is designed for outdoor service and suitable for operating meters, instruments, relays, and control devices. JVW-5 is rated Station Class with higher burden, thermal rating, and creep distance. This model is available in a variety of voltage, ratio and bushing types as outlined in the unit selection table below. Additional designs are available upon request.

FEATURES

  • Thermal Rating: 1500VA (55°C rise above 30°C)
  • Weight: 105lbs (unit), 120lbs (shipping)
  • Dimensions: 16.88” (h) x 14.25” (w) x 13.05” (d)
  • Creep Distance: 20.38” [517.7mm]
  • Strike Distance: 12” [305mm]
  • Insulation: HY-BUTE 60™ Butyl Rubber
  • Insulation Class: 110kV BIL, Outdoor
  • Primary Winding Style: Lattice-Type
  • Design Standard: IEEE C57.13
  • Measurement Canada Approval: AE-2026
