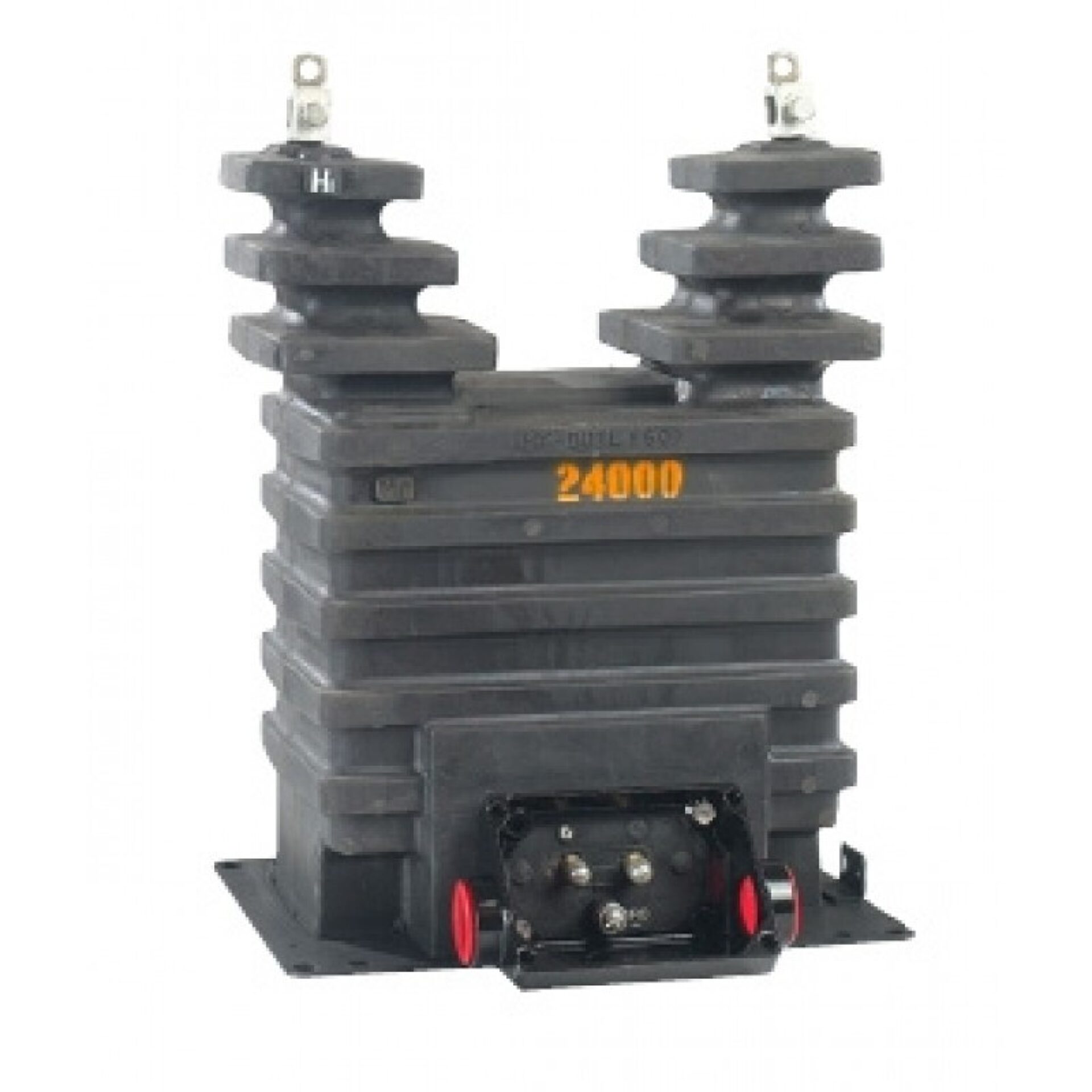

JVW-6 Outdoor Voltage Transformer - 25kV Class

JVW-6 Outdoor Voltage Transformer - 25kV Class

APPLICATIONS

Model JVW-6 is designed for outdoor service and suitable for operating meters, instruments, relays, and control devices. JVW-6 is rated Distribution Class with lighter burden and thermal rating for more efficient application to solid-state metering and other modern relay and control power installations. This model is available in a variety of voltage, ratio and bushing types as outlined in the unit selection table below. Additional designs are available upon request.

FEATURES

  • Thermal Rating: 750VA (55°C rise above 30°C)
  • Weight: 105lbs (unit), 120lbs (shipping)
  • Dimensions: 18.25” (h) x 14.25” (w) x 13.19” (d)
  • Creep Distance: 21” [533.4mm]
  • Strike Distance: 16.39” [416.3mm]
  • Insulation: HY-BUTE 60™ Butyl Rubber
  • Insulation Class: 125-150kV BIL, Outdoor
  • Primary Winding Style: Lattice-Type
  • Design Standard: IEEE C57.13
  • Measurement Canada Approval: AE-2039
Would you like to customize this product? Contact us today to see if we can create the custom option that fits your needs.
