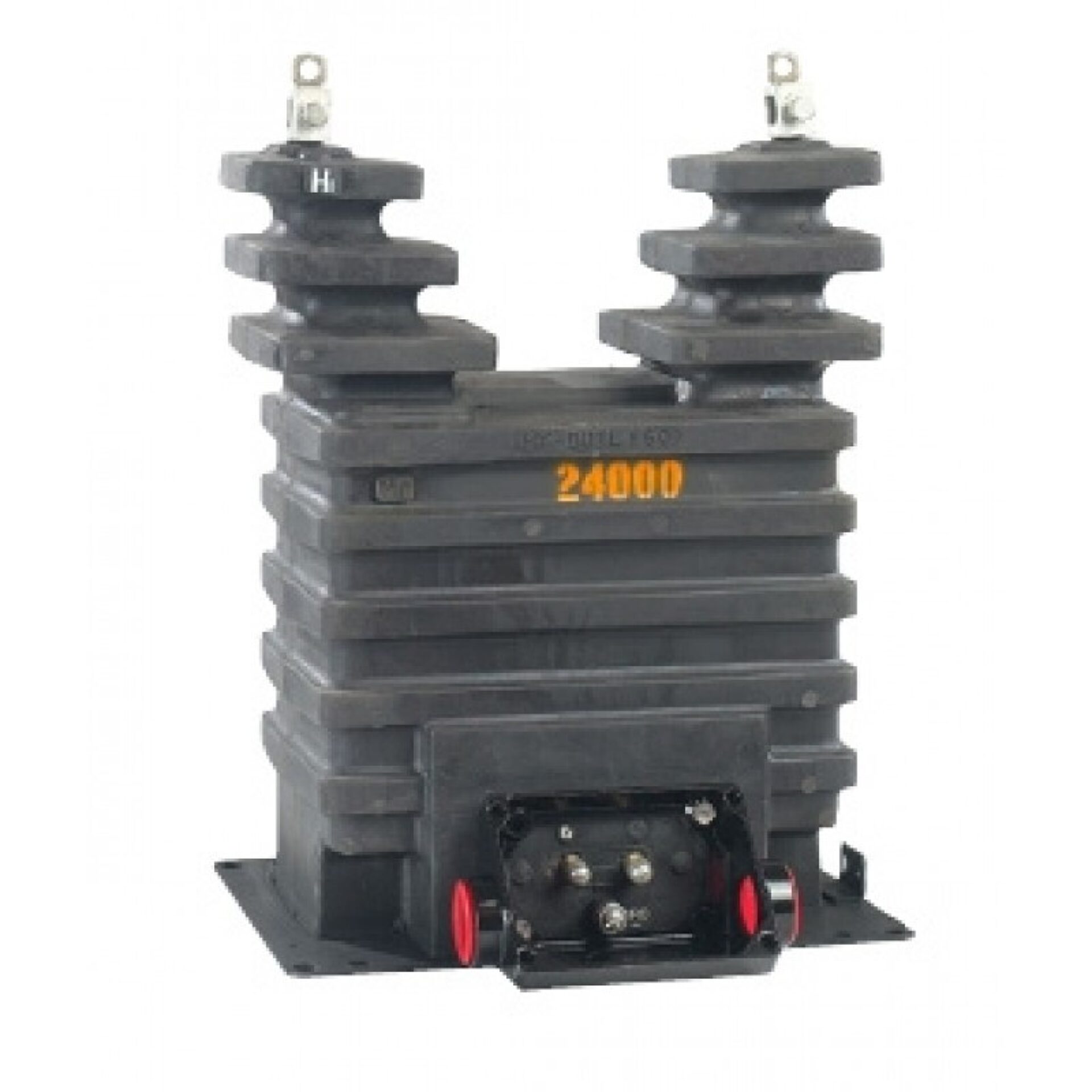

JVW-6A Outdoor Voltage Transformer - 25kV Class
APPLICATIONS
Model JVW-6A is a high accuracy voltage transformer designed for outdoor service. This model will meet IEEE C57.13.6 0.15 high accuracy class from 0VA through the specified standard burden, from 90% to 110% of the rated voltage and is suitable for operating meters, instruments, relays, and control devices. This model is available in a variety of voltage, ratio and bushing types as outlined in the unit selection table below. Additional designs are available upon request. Rated Distribution Class with lighter burden and thermal rating for more efficient application to solid-state metering and other modern relay and control power installations.
FEATURES
- Thermal Rating: 750VA (55°C rise above 30°C)
- Weight: 105lbs (unit), 120lbs (shipping)
- Dimensions: 18.25” (h) x 14.25” (w) x 13.19” (d)
- Creep Distance: 21” [533.4mm]
- Strike Distance: 16.39” [416.3mm]
- Insulation: HY-BUTE 60™ Butyl Rubber
- Insulation Class: 125-150kV BIL, Outdoor
- Primary Winding Style: Lattice-Type
- Design Standard: IEEE C57.13
- Measurement Canada Approval: AE-2044
