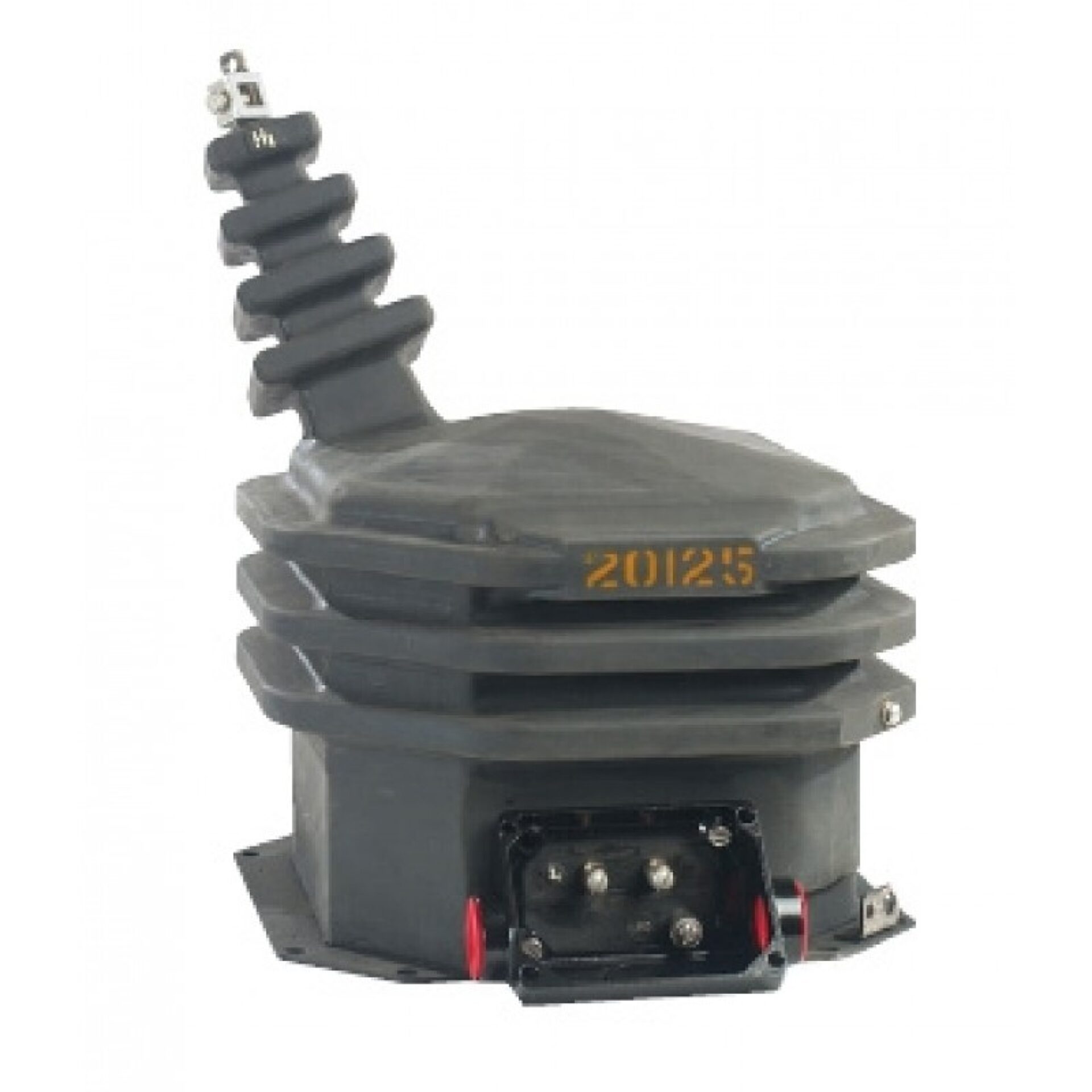

JVW-7 Outdoor Voltage Transformer - 36kV Class
Introducing the JVW-7 Outdoor Voltage Transformer, a state-of-the-art solution designed to meet the demanding needs of modern electrical systems., a global leader in innovative electrical equipment, this transformer exemplifies durability, reliability, and precision. Engineered specifically for outdoor applications, the JVW-7 is built to withstand harsh environmental conditions while providing accurate voltage measurement and regulation. Its robust construction ensures long-term performance, making it an ideal choice for utility companies, industrial facilities, and infrastructure projects that require dependable voltage transformation.
Overview
Introducing the JVW-7 Outdoor Voltage Transformer, a state-of-the-art solution designed to meet the demanding needs of modern electrical systems., a global leader in innovative electrical equipment, this transformer exemplifies durability, reliability, and precision. Engineered specifically for outdoor applications, the JVW-7 is built to withstand harsh environmental conditions while providing accurate voltage measurement and regulation. Its robust construction ensures long-term performance, making it an ideal choice for utility companies, industrial facilities, and infrastructure projects that require dependable voltage transformation.
and distributed through Spectrum Industries, this 36kV class transformer offers exceptional electrical performance and safety features. Its design incorporates advanced insulating materials and protective features to prevent electrical faults and ensure operational stability. The JVW-7’s compact, weather-resistant enclosure facilitates easy installation and maintenance, reducing downtime and operational costs. Whether used for power distribution, metering, or system monitoring, this transformer guarantees consistent voltage levels, helping to optimize power quality and enhance overall system efficiency.
With a proven track record of excellence, the JVW-7 Outdoor Voltage Transformer stands out as a reliable component in high-voltage environments. Backed by ’s reputation for quality and innovation, and distributed by Spectrum Industries, this product delivers peace of mind alongside superior performance. It is a trusted choice for professionals seeking a durable, efficient, and safe voltage transformation solution for outdoor electrical infrastructure.
Request a Quote for JVW-7 Outdoor Voltage Transformer - 36kV Class
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 200 kV
- Weight
- 140 lbs
- Mounting
- Outdoor
- Application
- Metering, Protection, Distribution
- Standards
- ANSI/IEEE C57.13
- Accuracy class detail
- 0.3 accuracy class at IEEE standard burdens W, X, M, Y (60 Hz)
- Creep Distance
- 26.5 in (673.1 mm)
- Strike Distance
- 17 in (431.8 mm)
- Insulation Material
- HY-BUTE 60 Butyl Rubber
- Insulation Class
- 150-200 kV BIL, Outdoor
- Primary Winding Style
- Lattice-Type
- Dimensions
- 19 in (h) x 13.88 in (w) x 17.88 in (d)
- Shipping Weight
- 155 lbs
- Secondary Terminals
- Clamp-type, tin-plated bronze posts, 0.275 in diameter cross hole
- Line-to-ground withstand (single bushing units)
- 1.40x rated voltage for 1 minute
- Measurement Canada Approval
- AE-1056
- Burden — Value
- 750
- Burden — Condition
- max
- Overall Accuracy — Accuracy
- 0.3
Specification Table
| Primary V | Secondary V | Ratio (display) |
|---|---|---|
| 20125 | 120 | 175:1 |
| 20125 | 120 | 175/300:1 |
| 20125 | 120 | 175 & 300:1 |
| 23000 | 120 | 200:1 |
| 27600 | 120 | 240:1 |
| 34500 | 120 | 300:1 |
| 23000 | 120 | 200 & 200:1 |
| 27600 | 120 | 240 & 240:1 |
| 34500 | 120 | 300 & 300:1 |
