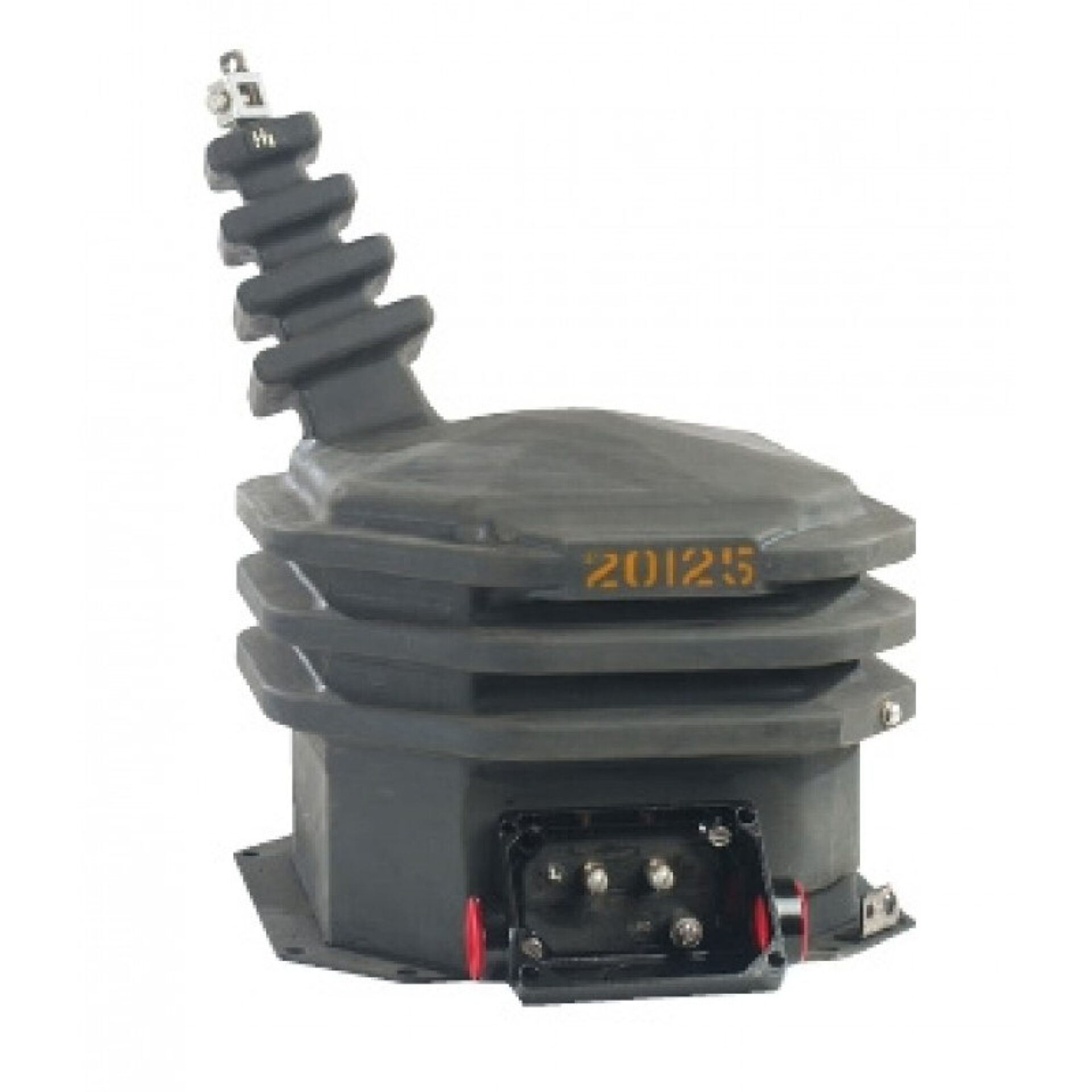

JVW-7A Outdoor Voltage Transformer - 36kV Class
Introducing the JVW-7A Outdoor Voltage Transformer, a reliable and high-performance solution designed to meet the demanding needs of electrical distribution systems., a global leader in innovative electrical equipment, this transformer exemplifies durability, precision, and efficiency. Engineered specifically for outdoor applications, the JVW-7A is built to withstand harsh environmental conditions while providing accurate voltage transformation essential for safe and efficient power distribution.
Overview
Introducing the JVW-7A Outdoor Voltage Transformer, a reliable and high-performance solution designed to meet the demanding needs of electrical distribution systems., a global leader in innovative electrical equipment, this transformer exemplifies durability, precision, and efficiency. Engineered specifically for outdoor applications, the JVW-7A is built to withstand harsh environmental conditions while providing accurate voltage transformation essential for safe and efficient power distribution.
Produced by Spectrum Industries, a trusted name in electrical equipment manufacturing, this transformer combines advanced engineering with robust construction. Its 36kV class rating ensures it is suitable for medium-voltage distribution networks, making it an ideal choice for utility companies, industrial facilities, and infrastructure projects. The JVW-7A features a compact design with weather-resistant components, ensuring long-term performance and minimal maintenance requirements. Its design emphasizes safety, reliability, and ease of installation, helping to streamline project timelines and reduce operational costs.
Whether deployed in urban or rural settings, the JVW-7A outdoor voltage transformer provides consistent and dependable voltage transformation, supporting the stability and efficiency of power delivery systems. With ’s legacy of innovation and Spectrum Industries’ commitment to quality, this transformer stands as a trusted solution for modern electrical infrastructure needs. It is an excellent choice for ensuring the safe, reliable, and efficient operation of your power distribution network.
Request a Quote for JVW-7A Outdoor Voltage Transformer - 36kV Class
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 200 kV
- Weight
- 140 lbs
- Mounting
- Outdoor
- Application
- Metering, Protection, Control Power
- Standards
- ANSI/IEEE C57.13
- Thermal Rating Basis
- 55 C rise above 30 C ambient
- Insulation Material
- HY-BUTE 60 Butyl Rubber
- Insulation Class
- 150-200 kV BIL, Outdoor
- Primary Winding Style
- Lattice-Type
- Creep Distance
- 26.5 in (673.1 mm)
- Strike Distance
- 17 in (431.8 mm)
- Dimensions (H x W x D)
- 19 in x 13.88 in x 17.88 in
- Shipping Weight
- 155 lbs
- Baseplate
- Stainless steel with welded grounding lug
- Secondary Conduit Box
- Detachable die-cast aluminum, two 1 in threaded conduit hubs, 1 in bottom knockout
- 50 Hz Operation
- Available on request
- Burden — Value
- 750
- Burden — Condition
- max
Specification Table
| Primary V | Secondary V | Ratio (display) | Thermal Rating Factor @ 55°C |
|---|---|---|---|
| 20125 | 115 | 175:1 | 750 |
| 23000 | 115 | 200:1 | 750 |
| 27600 | 115 | 240:1 | 750 |
| 34500 | 115 | 300:1 | 750 |
