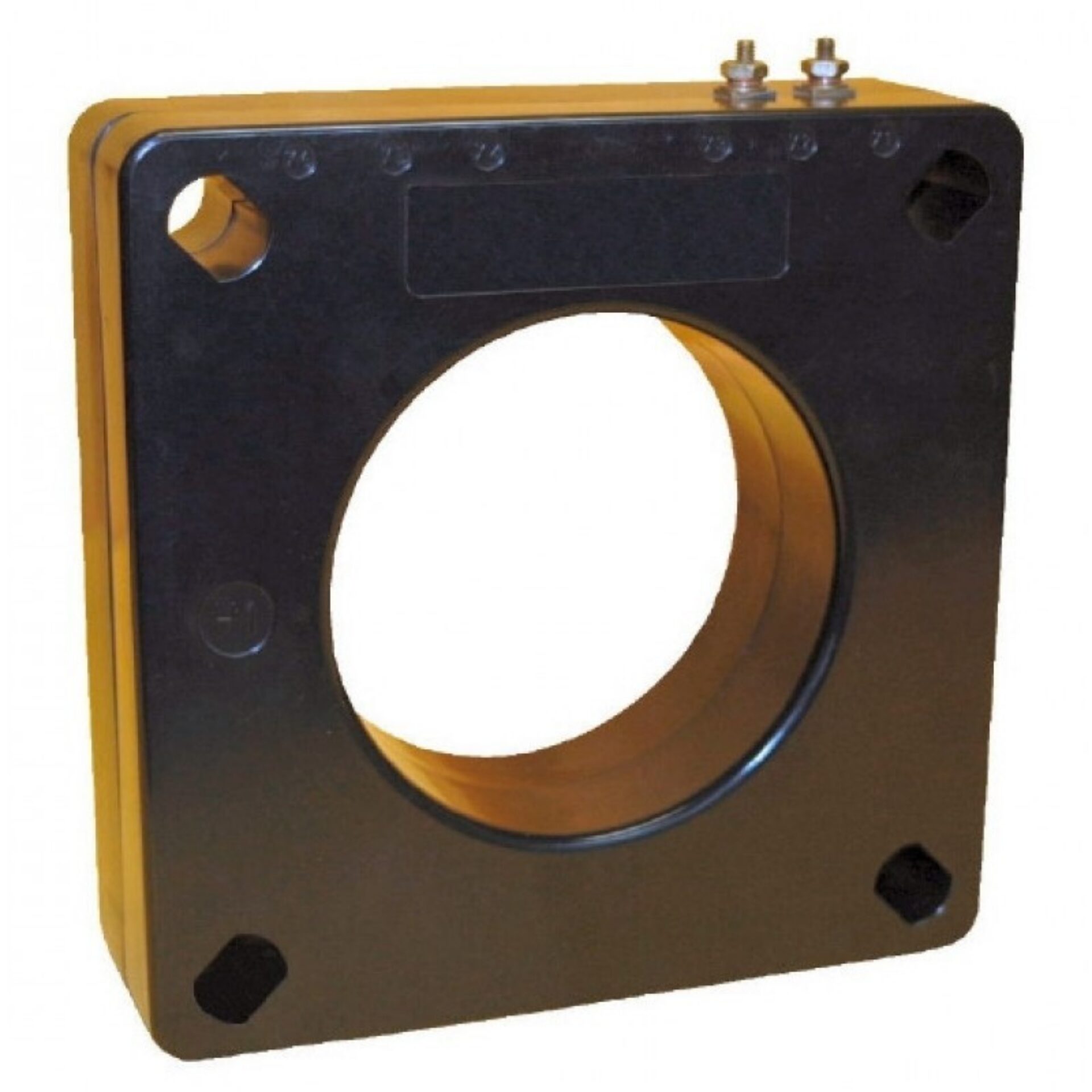

Model 100 Current Transformer
Introducing the Model 100 Current Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed to deliver precise current measurement and reliable performance, this current transformer is an essential component for a wide range of electrical applications. Whether you're involved in industrial automation, power distribution, or electrical testing, the Model 100 offers the accuracy and durability needed to ensure optimal system operation.
Overview
Introducing the Model 100 Current Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed to deliver precise current measurement and reliable performance, this current transformer is an essential component for a wide range of electrical applications. Whether you're involved in industrial automation, power distribution, or electrical testing, the Model 100 offers the accuracy and durability needed to ensure optimal system operation.
a global leader in electrical and electronic manufacturing, the Model 100 Current Transformer benefits from decades of innovation and engineering excellence. Its robust construction and high-quality materials ensure long-lasting performance even in demanding environments. The product is designed to provide accurate current readings while maintaining safety and ease of installation, making it suitable for both new installations and upgrades to existing systems.
Spectrum Industries is proud to distribute this reliable current transformer, emphasizing their commitment to delivering top-tier electrical components. The Model 100 is versatile and compatible with various measurement and protection devices, making it a valuable addition to any electrical setup. With its precision, durability, and trusted manufacturing pedigree, the Model 100 Current Transformer is an excellent choice for professionals seeking dependable current measurement solutions.
Request a Quote for Model 100 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 9.5 lbs
- Application
- Metering, Protection
- Insulation Level
- 600 Volt, 10 kV BIL full wave
- Window Diameter
- 4.00 in
- Terminals
- Brass studs No. 8-32 with one flatwasher, lockwasher and regular nut
- Mounting Bracket Kit
- 0221B00185
- Revenue Metering Approval
- Industry Canada No. T-153
- Multi-ratio
- Available on request
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|---|
| 200 | 5 | 200:5 | C10 | 2 | 2 | 0.057 |
| 300 | 5 | 300:5 | C10 | 2 | 2 | 0.091 |
| 400 | 5 | 400:5 | C20 | 2 | 2 | 0.133 |
| 500 | 5 | 500:5 | C20 | 2 | 1.5 | 0.166 |
| 600 | 5 | 600:5 | C20 | 2 | 1.5 | 0.199 |
| 800 | 5 | 800:5 | C20 | 1.5 | 1.33 | 0.266 |
| 1000 | 5 | 1000:5 | C50 | 1.5 | 1 | 0.332 |
| 1200 | 5 | 1200:5 | C20 | 1.5 | 1 | 0.374 |
| 1500 | 5 | 1500:5 | C20 | 1.33 | 1 | 0.468 |
| 1600 | 5 | 1600:5 | C50 | 1.33 | 1 | 0.499 |
| 2000 | 5 | 2000:5 | C50 | 1 | 0.8 | 0.624 |
| 2500 | 5 | 2500:5 | C50 | 1 | 0.8 | 0.735 |
| 3000 | 5 | 3000:5 | C50 | 1 | 0.8 | 0.882 |
