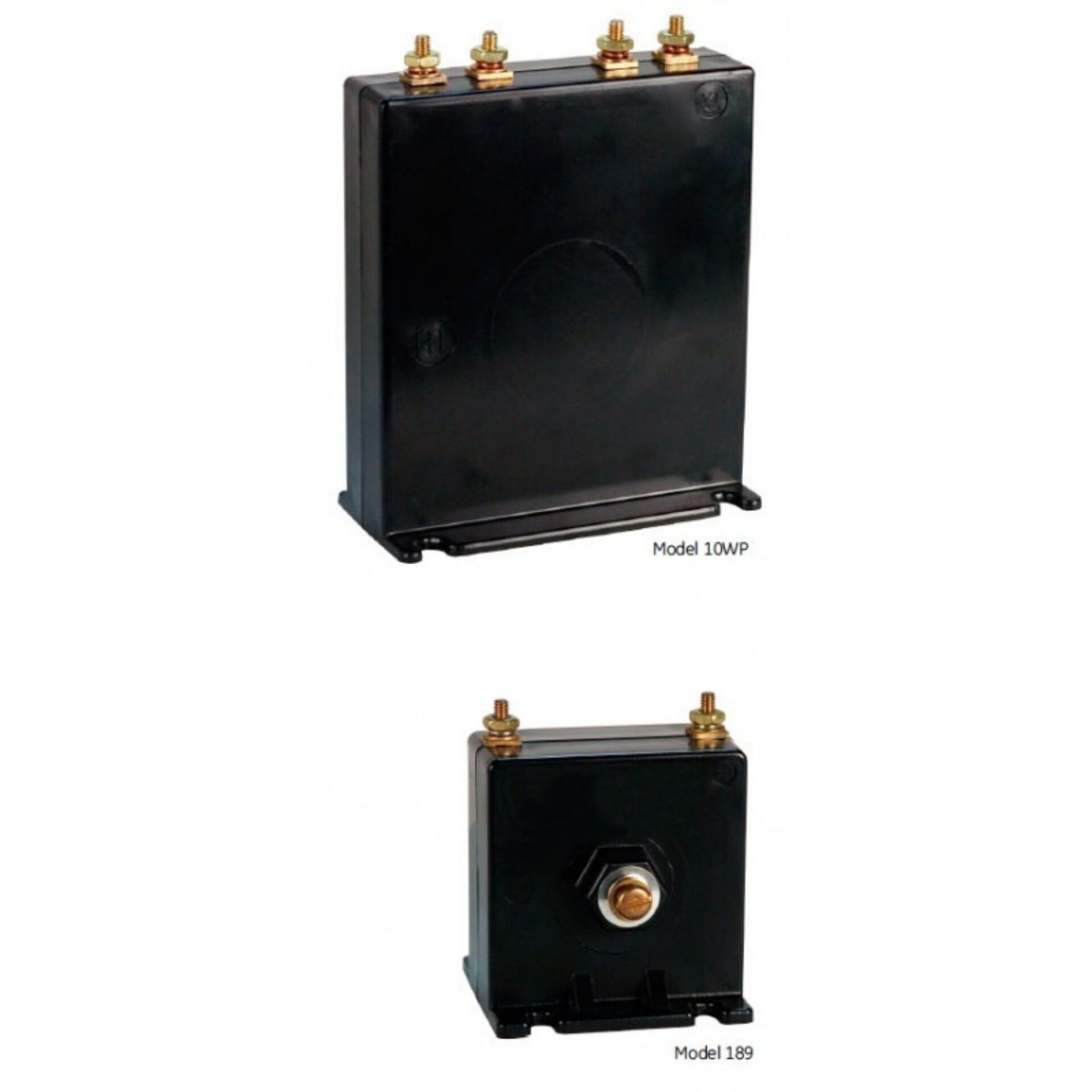

Model 10WP Current Transformer
Introducing the Model 10WP Current Transformer, a reliable and precise solution designed to meet the demanding needs of electrical measurement and protection applications. and distributed by Spectrum Industries, this current transformer exemplifies quality craftsmanship and innovative engineering. Its robust construction and accurate performance make it an ideal choice for a wide range of industrial, commercial, and utility settings.
Overview
Introducing the Model 10WP Current Transformer, a reliable and precise solution designed to meet the demanding needs of electrical measurement and protection applications. and distributed by Spectrum Industries, this current transformer exemplifies quality craftsmanship and innovative engineering. Its robust construction and accurate performance make it an ideal choice for a wide range of industrial, commercial, and utility settings.
The Model 10WP is engineered to provide accurate current measurement across various voltage levels, ensuring that electrical systems operate efficiently and safely. Its design emphasizes durability and ease of installation, making it suitable for both new installations and retrofit projects. The transformer’s high-quality materials and precise manufacturing standards guarantee consistent performance over time, reducing maintenance needs and enhancing system reliability.
a globally recognized leader in electrical equipment and technology, the Model 10WP Current Transformer benefits from decades of expertise and innovation. Spectrum Industries takes pride in offering this top-tier product to meet the specific demands of their customers, ensuring they receive a dependable component that integrates seamlessly into their electrical infrastructure. Whether used for metering, protection, or control, the Model 10WP delivers the accuracy and durability essential for modern electrical systems.
Request a Quote for Model 10WP Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 1.5 lbs
- Application
- Metering
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Insulation Voltage
- 0.6 kV
- Continuous Thermal Current Rating Factor
- 1.33 at 30°C / 1.0 at 55°C
- Primary Type
- Wound primary
- Primary Terminals
- Brass studs
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|
| 2.5 | 5 | 2.5:5 | 1.33 | 1 |
| 5 | 5 | 5:5 | 1.33 | 1 |
| 7.5 | 5 | 7.5:5 | 1.33 | 1 |
| 10 | 5 | 10:5 | 1.33 | 1 |
| 15 | 5 | 15:5 | 1.33 | 1 |
| 20 | 5 | 20:5 | 1.33 | 1 |
| 25 | 5 | 25:5 | 1.33 | 1 |
| 30 | 5 | 30:5 | 1.33 | 1 |
| 40 | 5 | 40:5 | 1.33 | 1 |
