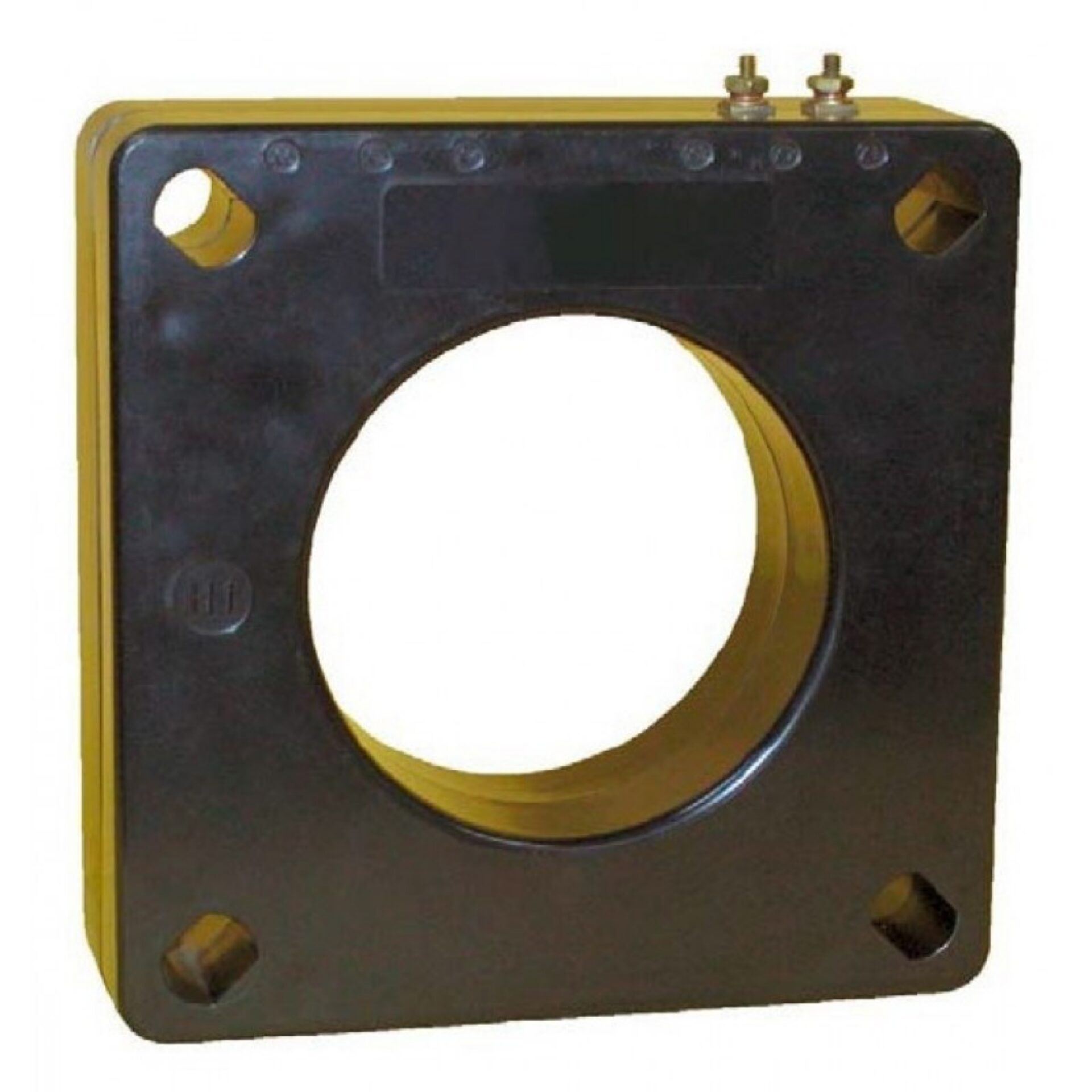

Model 110 Current Transformer
Introducing the Model 110 Current Transformer, a high-quality electrical component and brought to you by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential tool for accurate current measurement and electrical system monitoring. Whether you're involved in industrial automation, power distribution, or electrical testing, the Model 110 offers the performance and durability required to meet demanding applications.
Overview
Introducing the Model 110 Current Transformer, a high-quality electrical component and brought to you by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential tool for accurate current measurement and electrical system monitoring. Whether you're involved in industrial automation, power distribution, or electrical testing, the Model 110 offers the performance and durability required to meet demanding applications.
a globally recognized leader in electrical engineering and manufacturing, this current transformer embodies the company's commitment to quality and innovation. The Model 110 features a robust construction that ensures long-term stability and consistent performance across a wide range of operating conditions. Its compact design makes it easy to integrate into existing systems, providing seamless compatibility with various electrical setups.
Spectrum Industries takes pride in offering products that deliver precision and dependability, and the Model 110 Current Transformer is no exception. It is designed to provide accurate current readings, which are critical for system protection, metering, and control. Whether used in new installations or as a replacement component, this transformer guarantees reliable operation and helps maintain the safety and efficiency of your electrical infrastructure.
With the Model 110 Current Transformer by, you can trust that your electrical measurements are precise, your system is protected, and your operations run smoothly.
Request a Quote for Model 110 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 13 lbs
- Application
- Metering, Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Window diameter
- 4.00 in
- Insulation voltage
- 600 V
- Terminals
- Brass studs No. 8-32
- Mounting bracket kit
- 0221B00186
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|---|---|
| 200 | 5 | 200:5 | C10 | 0.6B0.1 | 2 | 2 | 0.085 |
| 300 | 5 | 300:5 | C20 | 0.3B0.1 | 2 | 2 | 0.128 |
| 400 | 5 | 400:5 | C20 | 0.3B0.5 | 2 | 2 | 0.152 |
| 500 | 5 | 500:5 | C20 | 0.3B0.5 | 2 | 1.5 | 0.214 |
| 600 | 5 | 600:5 | C50 | 0.3B0.9 | 2 | 1.5 | 0.256 |
| 800 | 5 | 800:5 | C50 | 0.3B1.8 | 1.5 | 1.33 | 0.342 |
| 1000 | 5 | 1000:5 | C100 | 0.3B1.8 | 1.5 | 1 | 0.427 |
| 1200 | 5 | 1200:5 | C50 | 0.3B1.8 | 1.5 | 1 | 0.489 |
| 1500 | 5 | 1500:5 | C100 | 0.3B1.8 | 1.33 | 1 | 0.611 |
| 1600 | 5 | 1600:5 | C100 | 0.3B1.8 | 1 | 1 | 0.652 |
| 2000 | 5 | 2000:5 | C100 | 0.3B1.8 | 1 | 0.8 | 0.815 |
| 2500 | 5 | 2500:5 | C100 | 0.3B1.8 | 1 | 0.8 | 0.974 |
| 3000 | 5 | 3000:5 | C100 | 0.3B1.8 | 1 | 0.6 | 1.168 |
