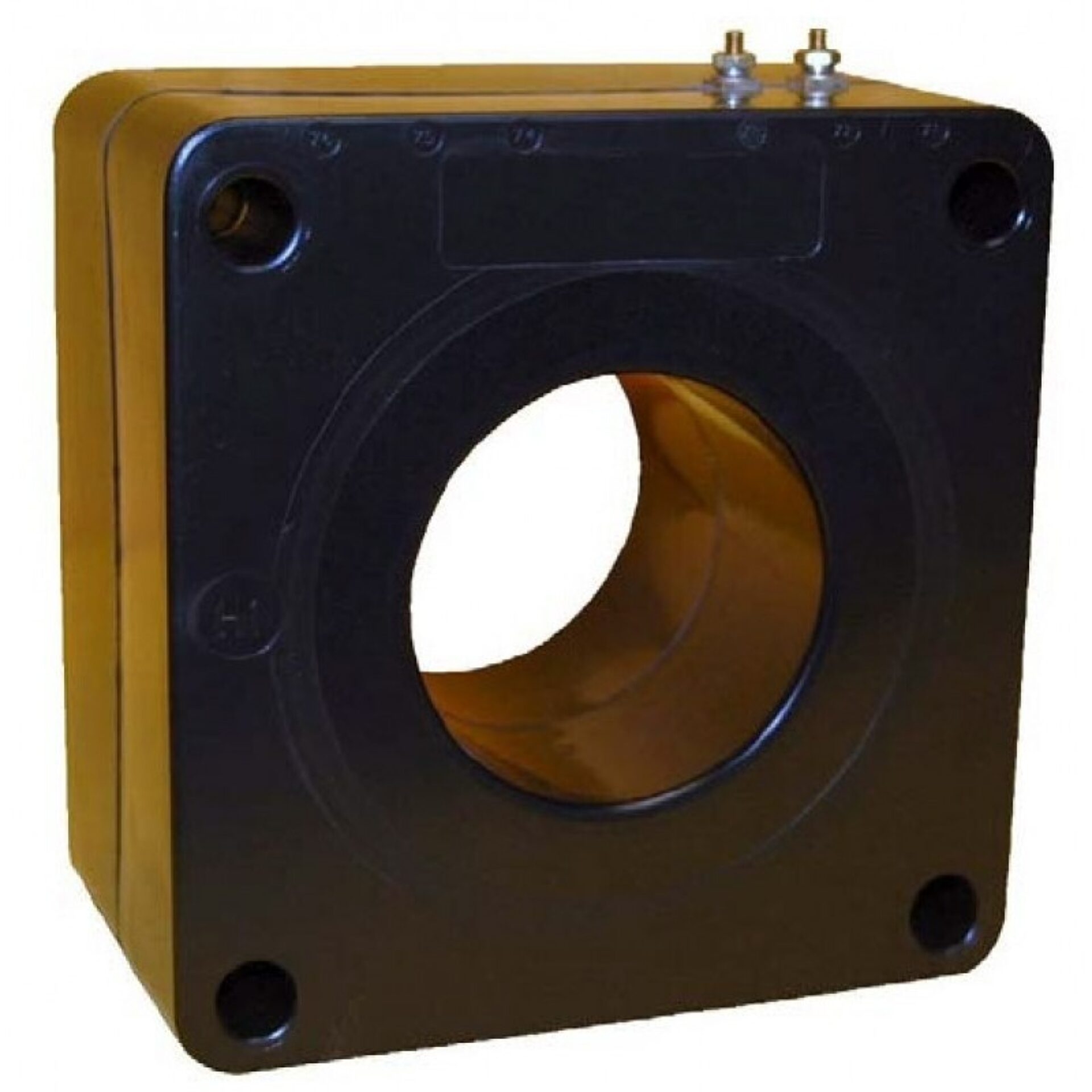

Model 112 Current Transformer
Introducing the Model 112 Current Transformer, a high-quality product, designed to meet the demanding needs of electrical measurement and protection applications. Crafted with precision and built for reliability, this current transformer is an essential component for professionals seeking accurate current measurement in various industrial and commercial settings., a global leader in electrical equipment and technology, the Model 112 exemplifies the company's commitment to innovation, durability, and performance.
Overview
Introducing the Model 112 Current Transformer, a high-quality product, designed to meet the demanding needs of electrical measurement and protection applications. Crafted with precision and built for reliability, this current transformer is an essential component for professionals seeking accurate current measurement in various industrial and commercial settings., a global leader in electrical equipment and technology, the Model 112 exemplifies the company's commitment to innovation, durability, and performance.
The Model 112 Current Transformer features a robust construction that ensures consistent performance even in challenging environments. Its design enables precise current transformation, making it ideal for use in metering, protection relays, and control systems. Whether you are monitoring electrical systems in a manufacturing plant or managing power distribution in a commercial facility, this transformer provides reliable and accurate readings that are critical for maintaining system efficiency and safety.
Produced by Spectrum Industries under the brand, the Model 112 embodies the company's dedication to quality and technological excellence. Its ease of installation and maintenance, combined with its durable build, make it a trusted choice for engineers and technicians alike. With the Model 112 Current Transformer, you can be confident in your electrical measurement capabilities, ensuring optimal system performance and peace of mind.
Request a Quote for Model 112 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 25 lbs
- Application
- Metering, Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Insulation class
- 600 V
- Window diameter
- 2.25 in
- Terminals
- No. 8-32 brass studs
- Mounting bracket
- Kit 0221B01525
- Multi-ratio option
- Available on request
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|
| 50 | 5 | 50:5 | C10 | 2 | 2 |
| 75 | 5 | 75:5 | C20 | 2 | 2 |
| 100 | 5 | 100:5 | C20 | 2 | 2 |
| 150 | 5 | 150:5 | C50 | 2 | 2 |
| 200 | 5 | 200:5 | C50 | 2 | 2 |
| 250 | 5 | 250:5 | C50 | 2 | 2 |
| 300 | 5 | 300:5 | C100 | 2 | 2 |
| 400 | 5 | 400:5 | C100 | 2 | 1.5 |
| 500 | 5 | 500:5 | C100 | 2 | 1.5 |
| 600 | 5 | 600:5 | C100 | 1.5 | 1.33 |
| 750 | 5 | 750:5 | C200 | 1.5 | 1 |
| 800 | 5 | 800:5 | C200 | 1.5 | 1 |
| 1000 | 5 | 1000:5 | C200 | 1.33 | 1 |
| 1200 | 5 | 1200:5 | C200 | 1.33 | 1 |
