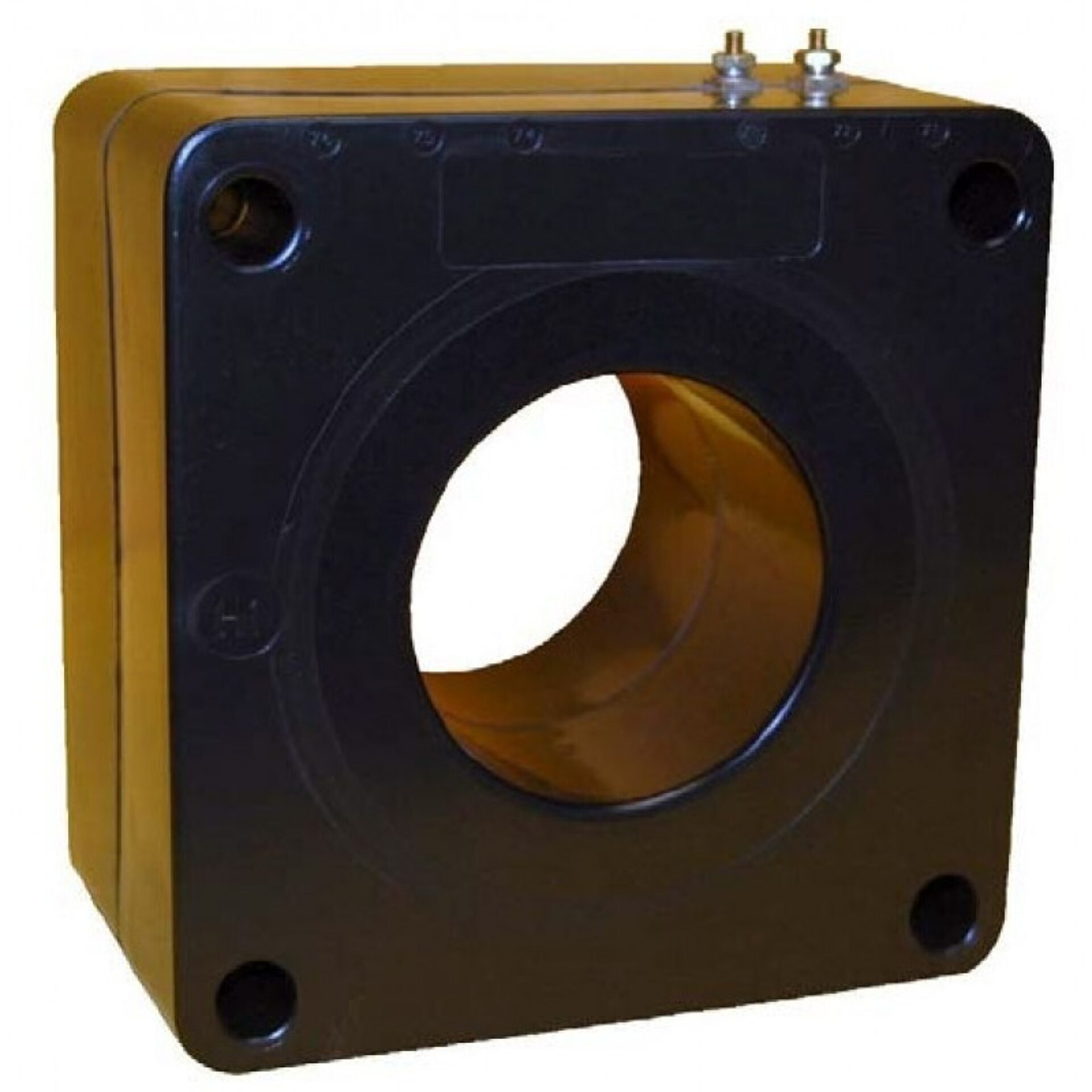

Model 113 Current Transformer
Introducing the Model 113 Current Transformer, a high-quality measurement device, distributed by Spectrum Industries. Designed to provide precise current measurement in a variety of electrical applications, this current transformer is an essential tool for engineers, technicians, and maintenance professionals seeking reliable and accurate data. Whether used in power distribution systems, industrial automation, or testing environments, the Model 113 offers robust performance and durability.
Overview
Introducing the Model 113 Current Transformer, a high-quality measurement device, distributed by Spectrum Industries. Designed to provide precise current measurement in a variety of electrical applications, this current transformer is an essential tool for engineers, technicians, and maintenance professionals seeking reliable and accurate data. Whether used in power distribution systems, industrial automation, or testing environments, the Model 113 offers robust performance and durability.
a global leader in electrical and electronic solutions, the Model 113 Current Transformer benefits from advanced engineering and rigorous quality standards. Its construction ensures excellent accuracy and stability across a wide range of currents, making it suitable for both monitoring and control purposes. The transformer’s compact design allows for easy installation in tight spaces, while its durable materials ensure long-lasting operation even in demanding environments.
Spectrum Industries takes pride in offering this dependable product, backed by ’s reputation for innovation and quality. The Model 113 is designed to meet industry standards and deliver consistent performance, helping users maintain safe and efficient electrical systems. Whether you need to measure high currents or monitor electrical loads, this current transformer provides a reliable solution that supports your operational needs with precision and confidence.
Request a Quote for Model 113 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 23 lbs
- Application
- Metering, Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Window Diameter
- 2.75 in
- Secondary Current
- 5 A
- Insulation Level
- 600 V, 10 kV BIL full wave
- Terminals
- Brass studs No. 8-32
- Mounting Bracket Kit
- 0221B01525
- Options
- Multi-ratios / excitation data
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|
| 50 | 5 | 50:5 | C10 | 2 | 2 |
| 75 | 5 | 75:5 | C10 | 2 | 2 |
| 100 | 5 | 100:5 | C20 | 2 | 2 |
| 150 | 5 | 150:5 | C20 | 2 | 2 |
| 200 | 5 | 200:5 | C50 | 2 | 2 |
| 250 | 5 | 250:5 | C50 | 2 | 2 |
| 300 | 5 | 300:5 | C50 | 2 | 2 |
| 400 | 5 | 400:5 | C100 | 2 | 1.5 |
| 500 | 5 | 500:5 | C100 | 2 | 1.5 |
| 600 | 5 | 600:5 | C100 | 1.5 | 1.33 |
| 750 | 5 | 750:5 | C200 | 1.5 | 1 |
| 800 | 5 | 800:5 | C200 | 1.5 | 1 |
| 1000 | 5 | 1000:5 | C200 | 1.33 | 1 |
| 1200 | 5 | 1200:5 | C200 | 1.33 | 1 |
| 1500 | 5 | 1500:5 | C200 | 1 | 0.8 |
